IAME Parilla LEOPARD User Manual

MAN048ING11

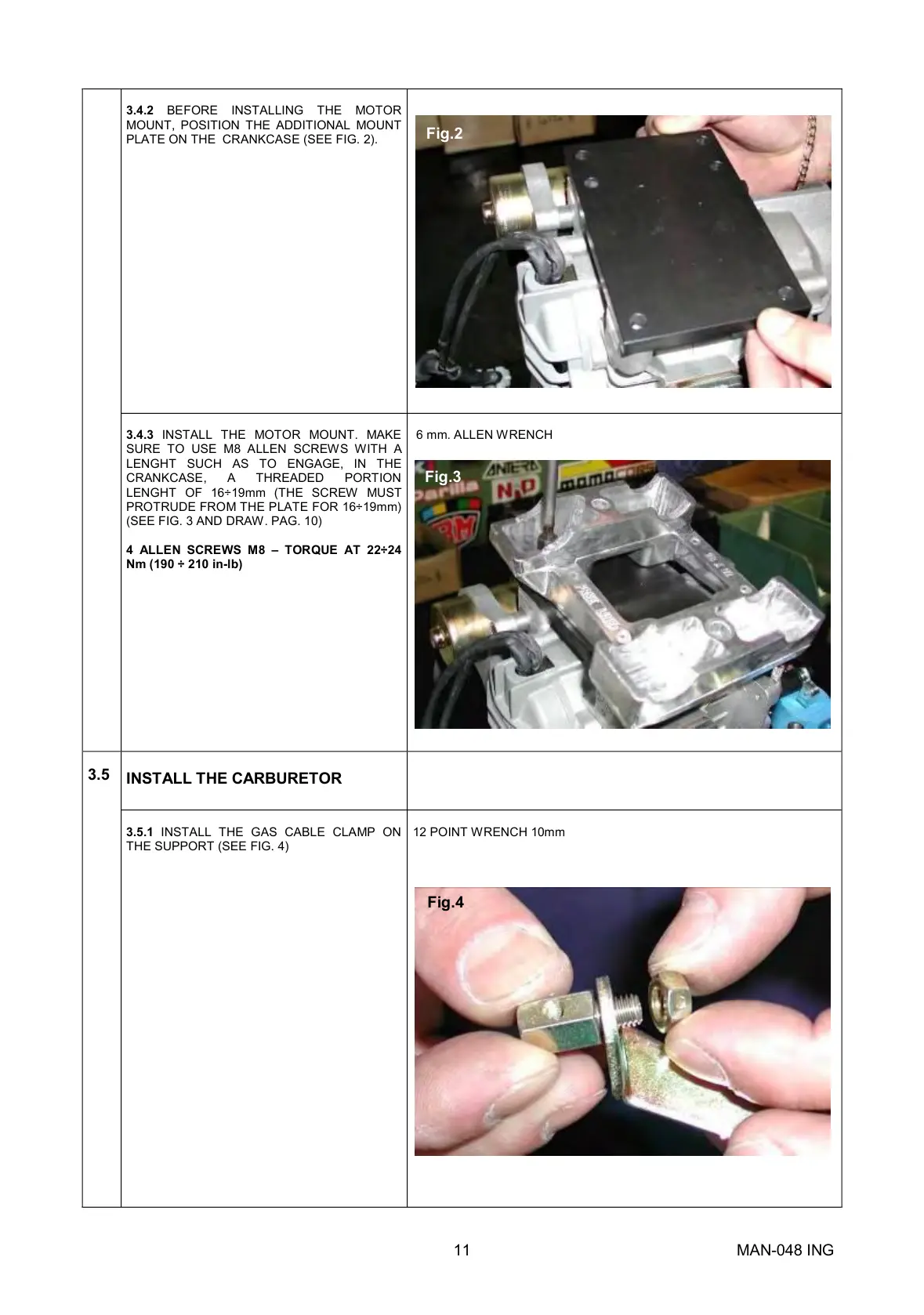

3.4.2 BEFORE INSTALLING THE MOTOR
MOUNT, POSITION THE ADDITIONAL MOUNT
PLATEONTHECRANKCASE(SEEFIG.2).
3.4.3 INSTALL THE MOTOR MOUNT. MAKE
SURE TO USE M8 ALLEN SCREWS WITH A
LENGHT SUCH AS TO ENGAGE, IN THE
CRANKCASE, A THREADED PORTION
LENGHT OF 16÷19mm (THE SCREW MUST
PROTRUDEFROMTHEPLATEFOR16÷19mm)
(SEEFIG.3ANDDRAW.PAG.10)
4 ALLEN SCREWS M8 – TORQUE AT 22÷24
Nm(190÷210inlb)
6mm.ALLENWRENCH
INSTALLTHECARBURETOR
3.5
3.5.1 INSTALL THE GAS CABLE CLAMP ON
THESUPPORT(SEEFIG.4)
12POINTWRENCH10mm
Fig.2
Fig.3
Fig.4
