MAN048ING15
3.8

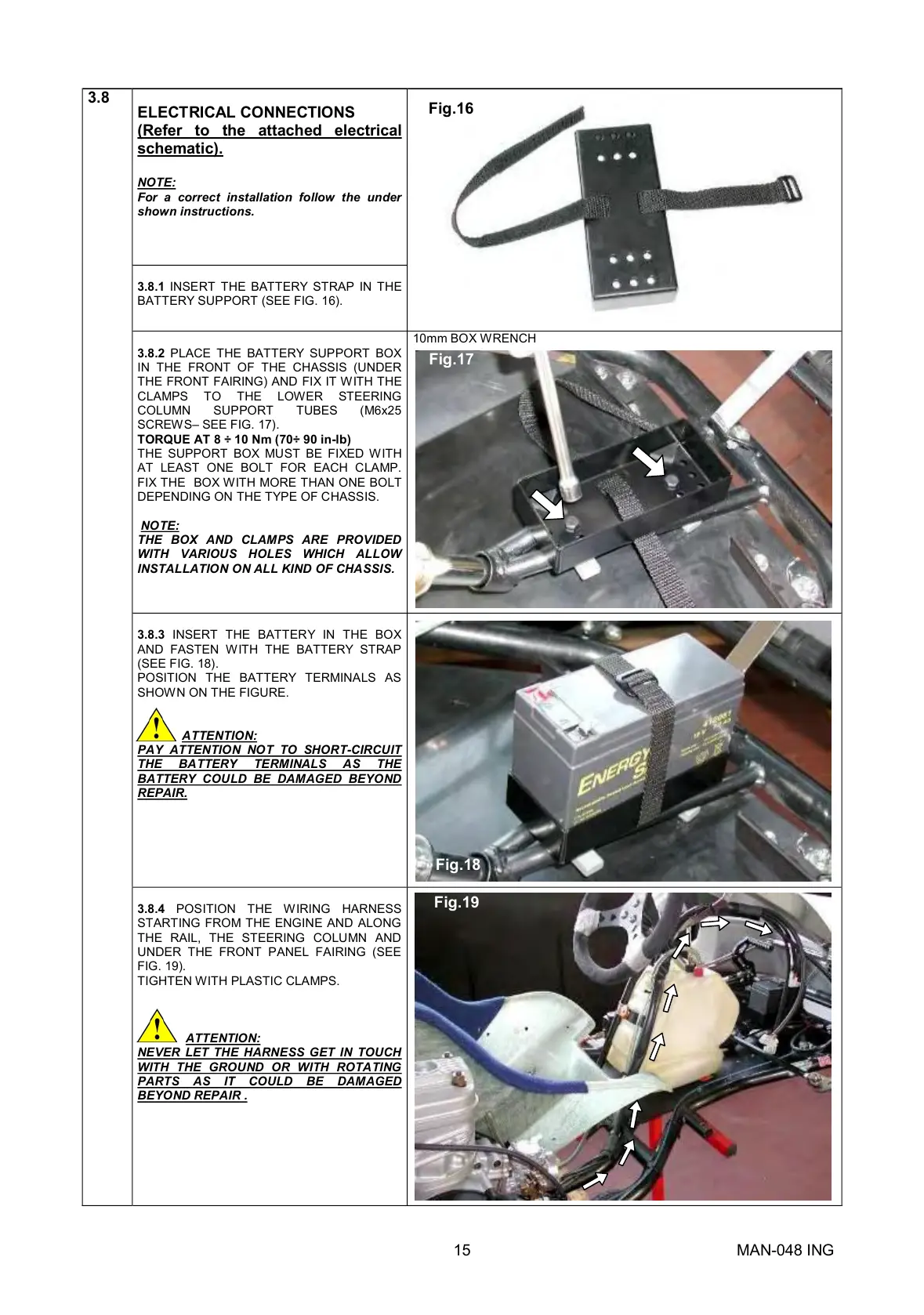

ELECTRICALCONNECTIONS
(Refer to the attached electrical
schematic).
NOTE:
For a correct installation follow the under
showninstructions.
3.8.1 INSERT THE BATTERY STRAP IN THE
BATTERY SUPPORT(SEEFIG.16).
3.8.2 PLACE THE BATTERY SUPPORT BOX
IN THE FRONT OF THE CHASSIS (UNDER
THEFRONTFAIRING)ANDFIXITWITHTHE
CLAMPS TO THE LOWER STEERING
COLUMN SUPPORT TUBES (M6x25
SCREWS–SEEFIG.17).
TORQUEAT8÷10Nm(70÷90inlb)
THE SUPPORT BOX MUST BE FIXED WITH
AT LEAST ONE BOLT FOR EACH CLAMP.
FIXTHEBOXWITHMORETHANONEBOLT
DEPENDINGONTHETYPEOFCHASSIS.
NOTE:
THE BOX AND CLAMPS ARE PROVIDED
WITH VARIOUS HOLES WHICH ALLOW
INSTALLATIONONALLKINDOFCHASSIS.
10mmBOXWRENCH
3.8.3 INSERT THE BATTERY IN THE BOX
AND FASTEN WITH THE BATTERY STRAP
(SEEFIG.18).
POSITION THE BATTERY TERMINALS AS
SHOWNONTHEFIGURE.
ATTENTION:
PAY ATTENTION NOT TO SHORTCIRCUIT
THE BATTERY TERMINALS AS THE
BATTERY COULD BE DAMAGED BEYOND
REPAIR.
3.8.4 POSITION THE WIRING HARNESS
STARTINGFROMTHEENGINEAND ALONG
THE RAIL, THE STEERING COLUMN AND
UNDER THE FRONT PANEL FAIRING (SEE
FIG.19).
TIGHTENWITHPLASTICCLAMPS.
ATTENTION:
NEVER LET THE HARNESSGET IN TOUCH
WITH THE GROUND OR WITH ROTATING
PARTS AS IT COULD BE DAMAGED
BEYONDREPAIR.
Fig.17
Fig.16
Fig.18
Fig.19
