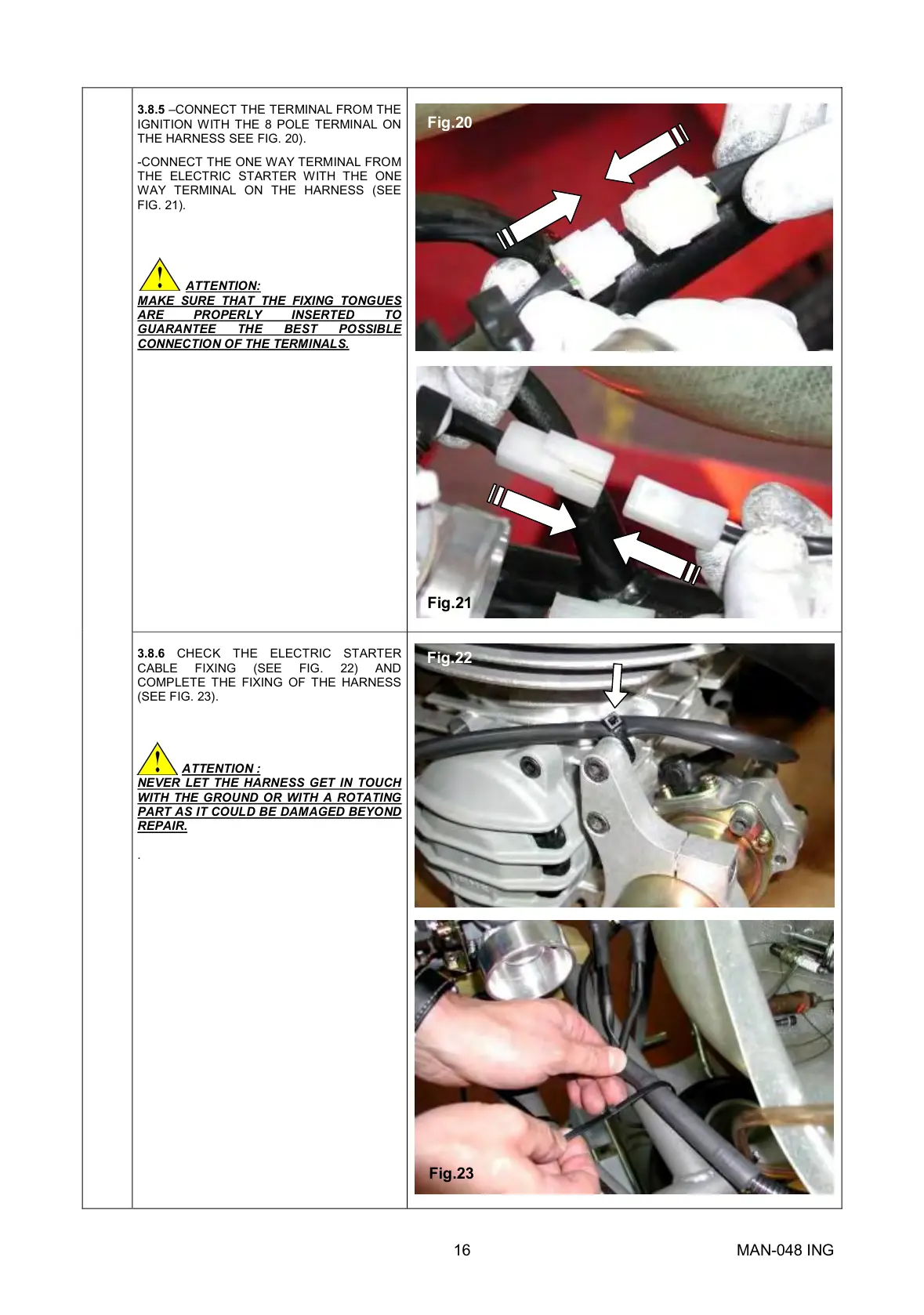

3.8.5–CONNECTTHETERMINALFROMTHE
IGNITIONWITH THE 8 POLE TERMINAL ON
THEHARNESSSEEFIG.20).
CONNECTTHEONEWAYTERMINALFROM
THE ELECTRIC STARTER WITH THE ONE
WAY TERMINAL ON THE HARNESS (SEE
FIG.21).
ATTENTION:
MAKE SURE THAT THE FIXING TONGUES
ARE PROPERLY INSERTED TO
GUARANTEE THE BEST POSSIBLE
CONNECTIONOFTHETERMINALS.
3.8.6 CHECK THE ELECTRIC STARTER
CABLE FIXING (SEE FIG. 22) AND
COMPLETE THE FIXING OF THE HARNESS
(SEEFIG.23).
ATTENTION:
NEVER LET THE HARNESSGET IN TOUCH 
WITHTHE GROUNDOR WITH A ROTATI NG
PARTASITCOULDBEDAMAGEDBEYOND
REPAIR.
.
Fig.20
Fig.21
Fig.23
Fig.22
