3.8.10CUTTHEDUALLOCKFIXINGSTRAP
ANDATTACHITTOTHEELECTRONICBOX,
THESTARTERFUSE,ANDTHEFUSE
HOLDER(SEEFIG.28).
3.8.11 –CONNECT THE ELECTRONIC BOX
TO THE 20 POLE TERMINAL IN THE
WIRINGHARNESS(SEEFIG.29).
CONNECTTHE STARTERRELAYTOTHE4
POLETERMINAL IN THEWIRING HARNESS
(SEEFIG.30).
ATTENTION:
MAKE SURE THAT THE FIXING TONGUES
ARE PROPERLY INSERTED TO
GUARANTEE THE BEST POSSIBLE
CONNECTIONOFTHETERMINALS.
3.8.12 DRILL A Ø 22mm HOLE IN THE SIDE
OF FRONT FAIRING (ENGINE SIDE) AND
INSERT THE STARTING ASSEMBLY (SEE
FIG.31).
SECURE THE ASSEMBLY WITH THE
THREADEDRINGNUT.

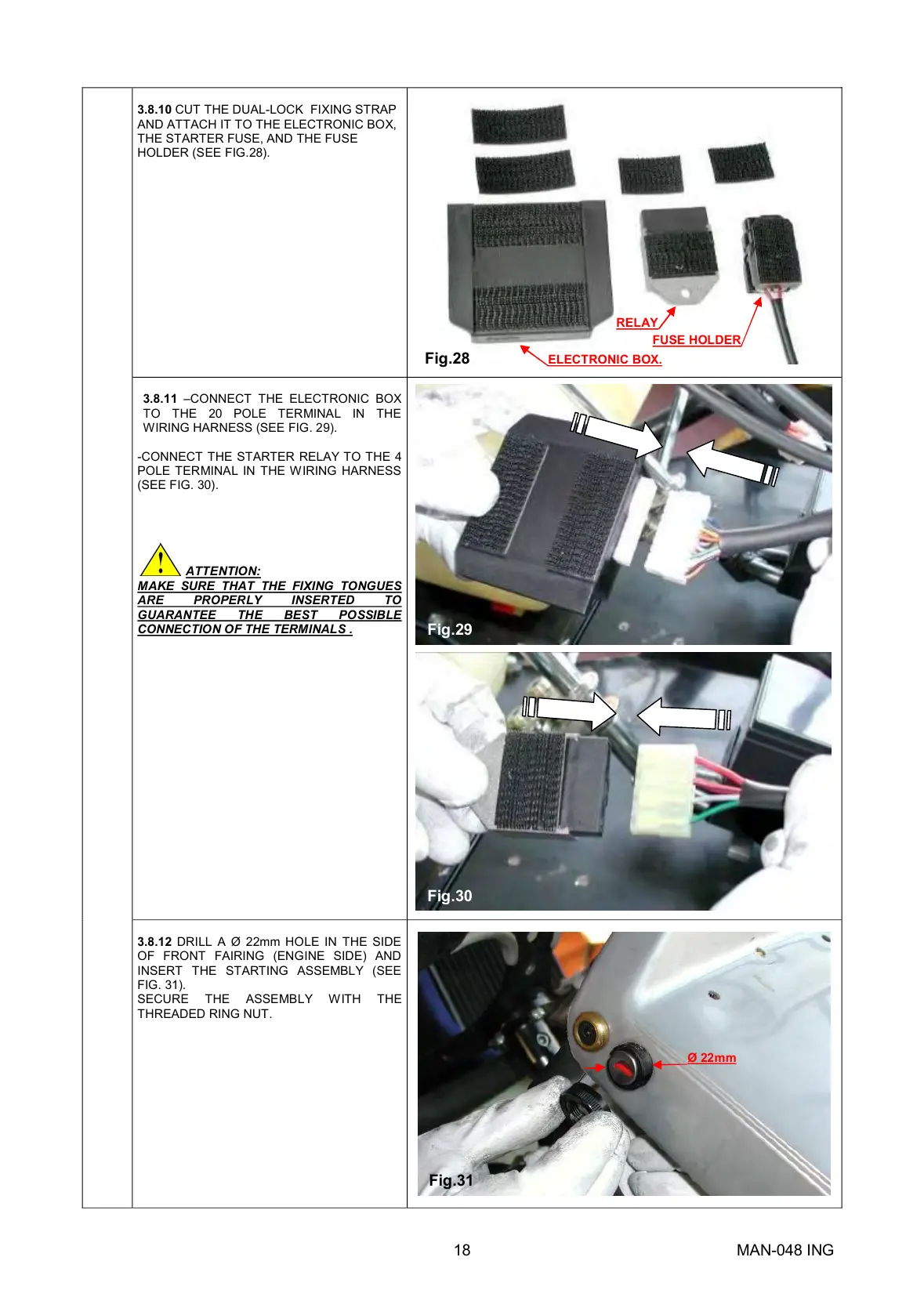

Fig.28
ELECTRONICBOX.
RELAY
FUSEHOLDER
Fig.29
Fig.30
Fig.31
Ø22mm
