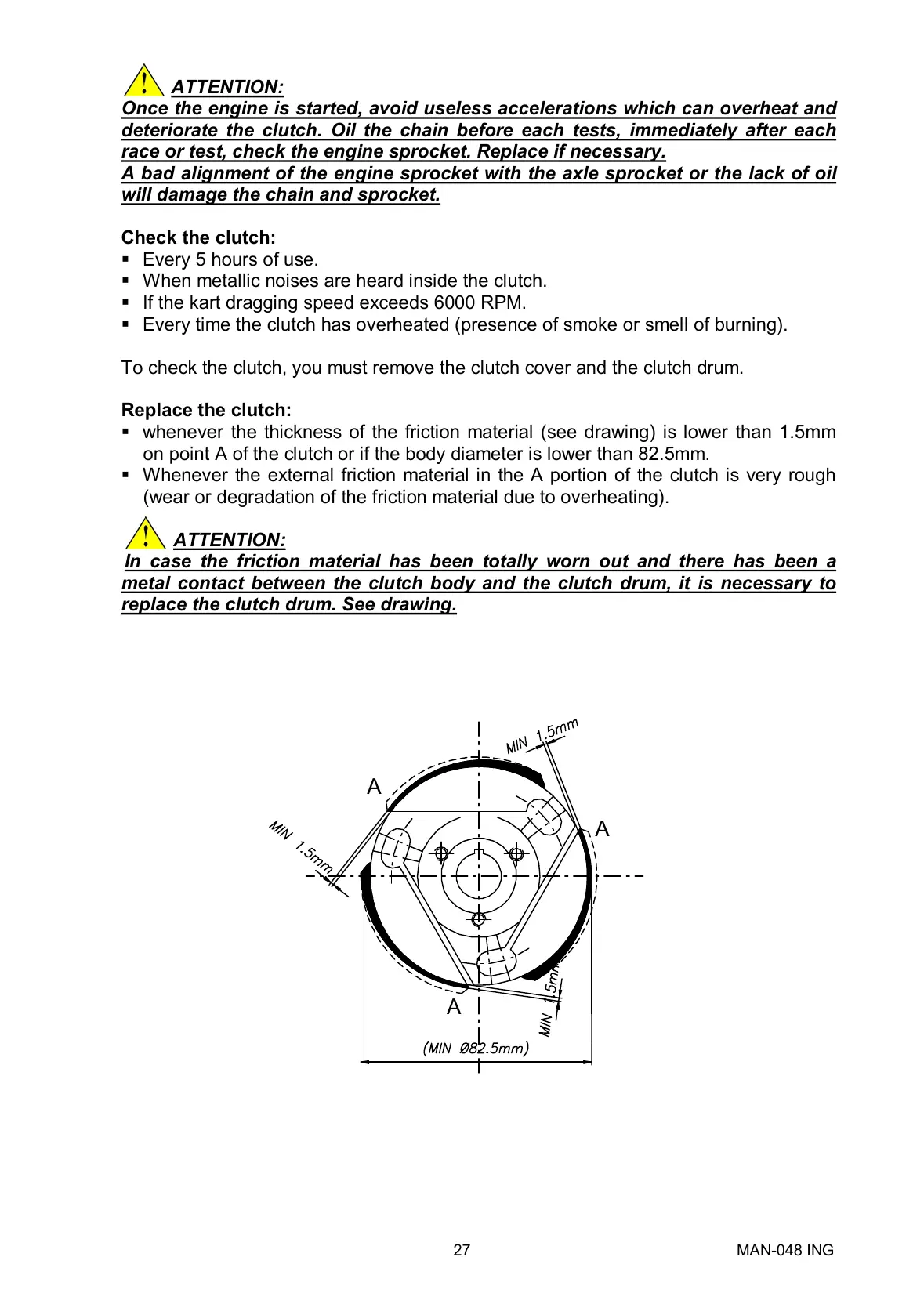

MAN048ING27
ATTENTION:
Oncetheengineisstarted,avoiduseless accelerationswhichcanoverheatand
deteriorate the clutch. Oil the chain before each tests, immediately after each
raceortest,checktheenginesprocket.Replaceifneces sary.
Abadal ignmentoftheenginesprocketwiththeaxlesprocketorthelackofoil
willdamagethechainandsprocket.
Checktheclutch:
§ Every5hoursofuse.
§ Whenmetallicnoisesareheardinsidetheclutch.
§ Ifthekartdraggingspeedexceeds6000RPM.
§ Everytimetheclutchhasoverheated(presenceofsmokeorsmellofburning).
Tochecktheclutch,youmustremovetheclutchcoverandtheclutchdrum.
Replacetheclutch:
§ whenever thethicknessof thefriction material (see drawing)islower than1.5mm
onpointAoftheclutchorifthebodydiameterislowerthan82.5mm.
§ WhenevertheexternalfrictionmaterialintheAportionoftheclutchisveryrough
(wearordegradationofthefrictionmaterialduetooverheating).
ATTENTION:
In case the friction material has been totally worn out and there has been a
metal contactbetween the clutchbodyandtheclutch drum,it is neces sary to
replacetheclutchdrum.Seedrawing.
A
A
A
