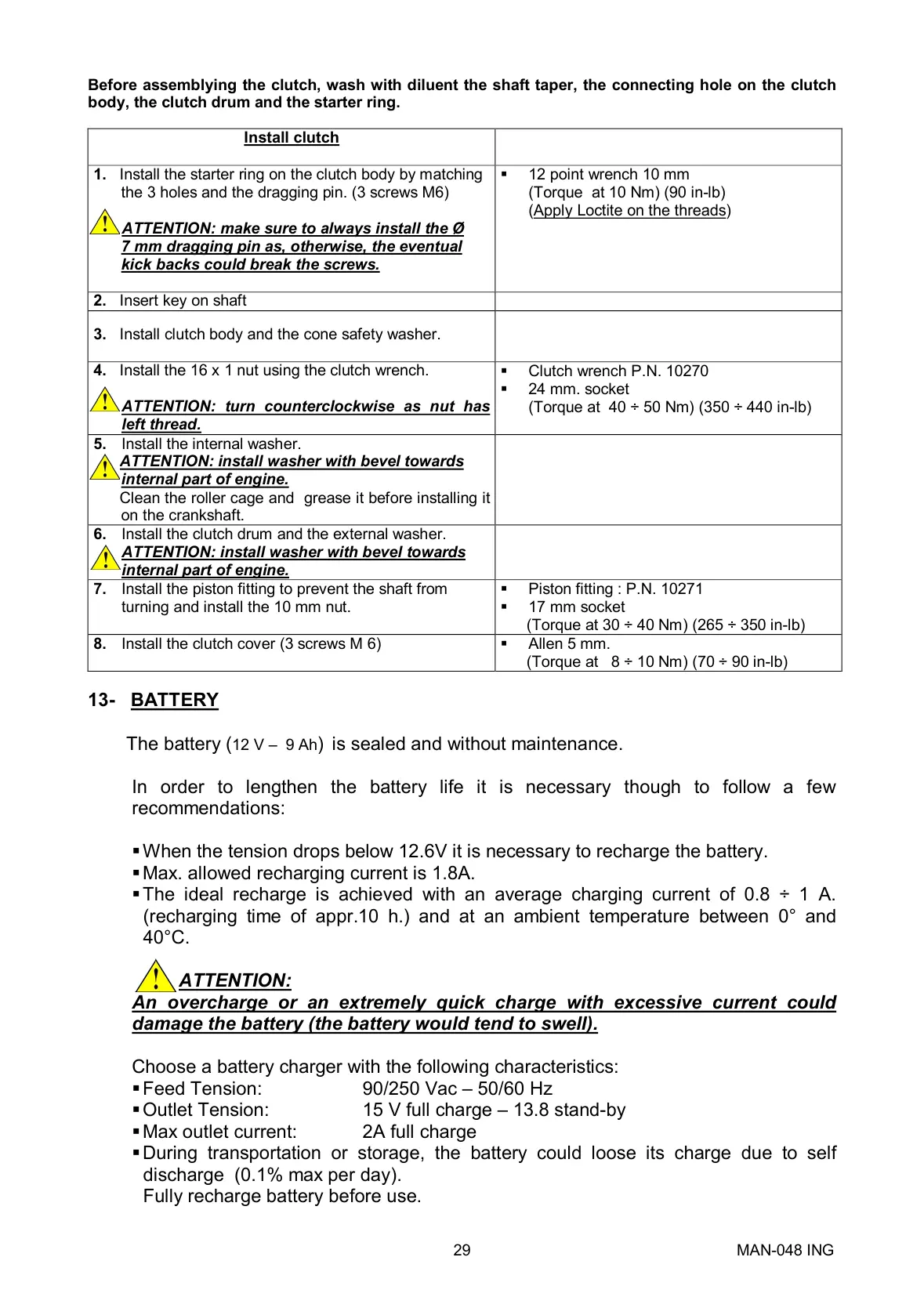

Beforeassemblyingtheclutch,washwithdiluenttheshafttaper,theconnectingholeontheclutch
body,theclutchdrumandthestarterring.
Installclutch
1. Installthestarterringontheclutchbodybymatching
the3holesandthedraggingpin.(3screwsM6)
ATTENTION:makesuretoalwaysinstalltheØ
7mmdraggingpinas,otherwise,theeventual
kickbackscouldbreakthescrews.
§ 12pointwrench10mm
(Torqueat10Nm)(90inlb)
(ApplyLoctiteonthethreads)
2. Insertkeyonshaft
3. Installclutchbodyandtheconesafetywasher.
4. Installthe16x1nutusingtheclutchwrench.
ATTENTION: turn counterclockwise as nut has
leftthread.
§ ClutchwrenchP.N.10270
§ 24mm.socket
(Torqueat40÷50Nm)(350÷440inlb)
5. Installtheinternalwasher.
ATTENTION:install washerwithbeveltowards
internalpartofengine.
Cleantherollercageandgreaseitbeforeinstallingit
onthecrankshaft.
6. Installtheclutchdrumandtheexternalwasher.
ATTENTION:installwasherwithbeveltowards
internalpartofengine.
7. Installthepistonfittingtopreventtheshaftfrom
turningandinstallthe10mmnut.
§ Pistonfitting:P.N.10271
§ 17mmsocket
(Torqueat30÷40Nm)(265÷350inlb)
8. Installtheclutchcover(3screwsM6) § Allen5mm.
(Torqueat8÷10Nm)(70÷90inlb)
13 BATTERY
Thebattery(12V– 9Ah) issealedandwithoutmaintenance.
In order to lengthen the battery life it is necessary though to follow a few
recommendations:
§Whenthetensiondropsbelow12.6Vitisnecessarytorechargethebattery.
§Max.allowedrechargingcurrentis1.8A.
§The ideal recharge is achieved with an average charging current of 0.8 ÷ 1 A.
(recharging time of appr.10 h.) and at an ambient temperature between 0° and
40°C.
ATTENTION:
An overcharge or an extremely quick charge with excessive current could
damagethebattery(thebatterywould tendtoswell).
Chooseabatterychargerwiththefollowingcharacteristics:
§FeedTension: 90/250Vac–50/60Hz
§OutletTension: 15Vfullcharge–13.8standby
§Maxoutletcurrent: 2Afullcharge
§During transportation or storage, the battery could loose its charge due to self
discharge(0.1%maxperday).
Fullyrechargebatterybeforeuse.
