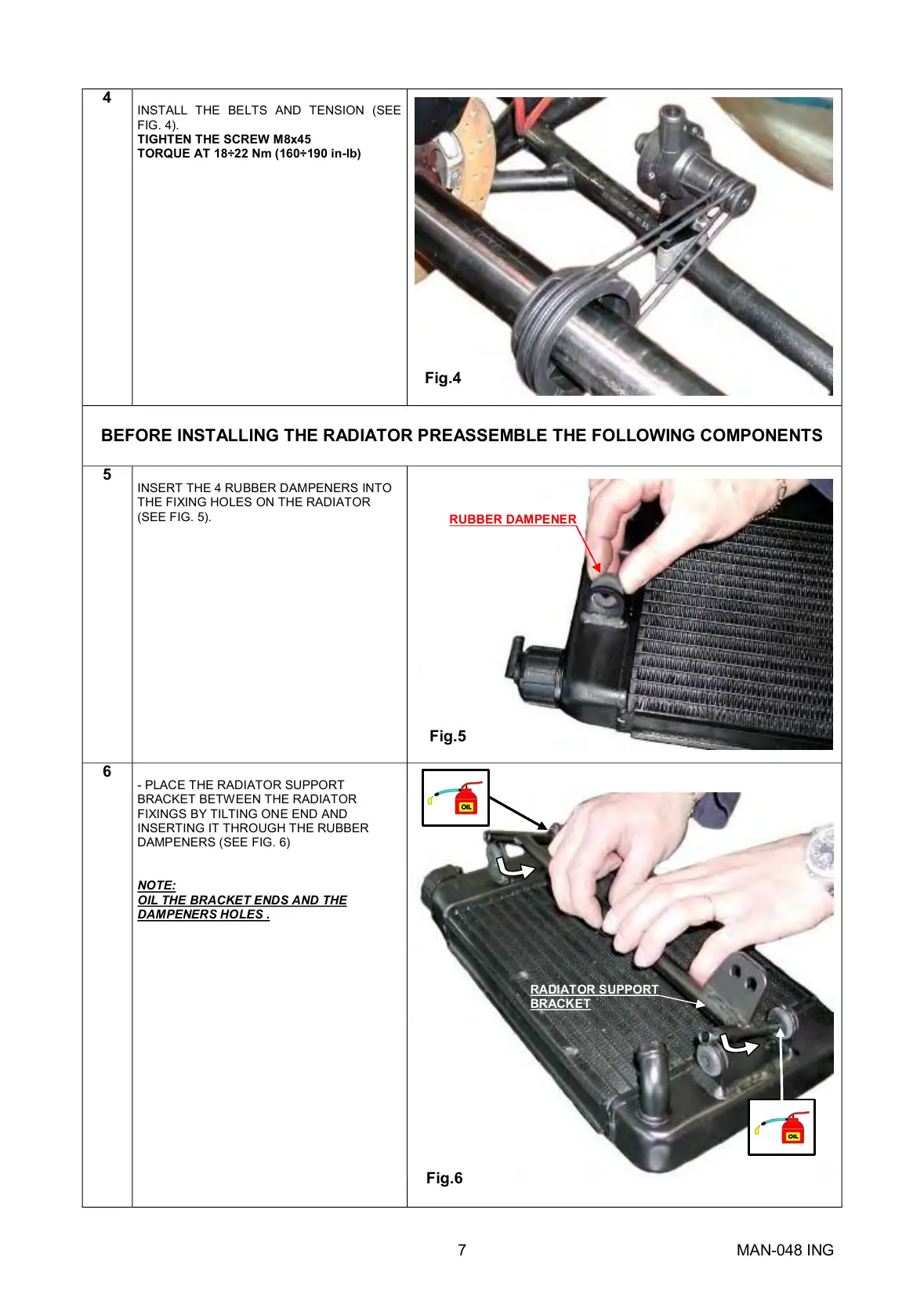

MAN048ING7

4

INSTALL THE BELTS AND TENSION (SEE

FIG.4).

TIGHTENTHESCREWM8x45

TORQUEAT18÷22Nm(160÷190i nlb)

BEFOREINSTALLINGTHERADIATORPREASSEMBLETHEFOLLOWINGCOMPONENTS

5

INSERTTHE4RUBBERDAMPENERSINTO

THEFIXINGHOLESONTHERADIATOR

(SEEFIG.5).

6

PLACETHERADIATORSUPPORT

BRACKETBETWEENTHERADIATOR

FIXINGSBYTILTINGONEENDAND

INSERTINGITTHROUGHTHERUBBER

DAMPENERS(SEEFIG.6)

NOTE:

OILTHEBRAC KETENDSANDTHE

DAMPENERSHOLES.

Fig.4

Fig.5

RUBBERDAMPENER

RADIATORSUPPORT

BRACKET

Fig.6
