IBC Technologies Inc. 53 VFC 15-150 and VFC 45-225

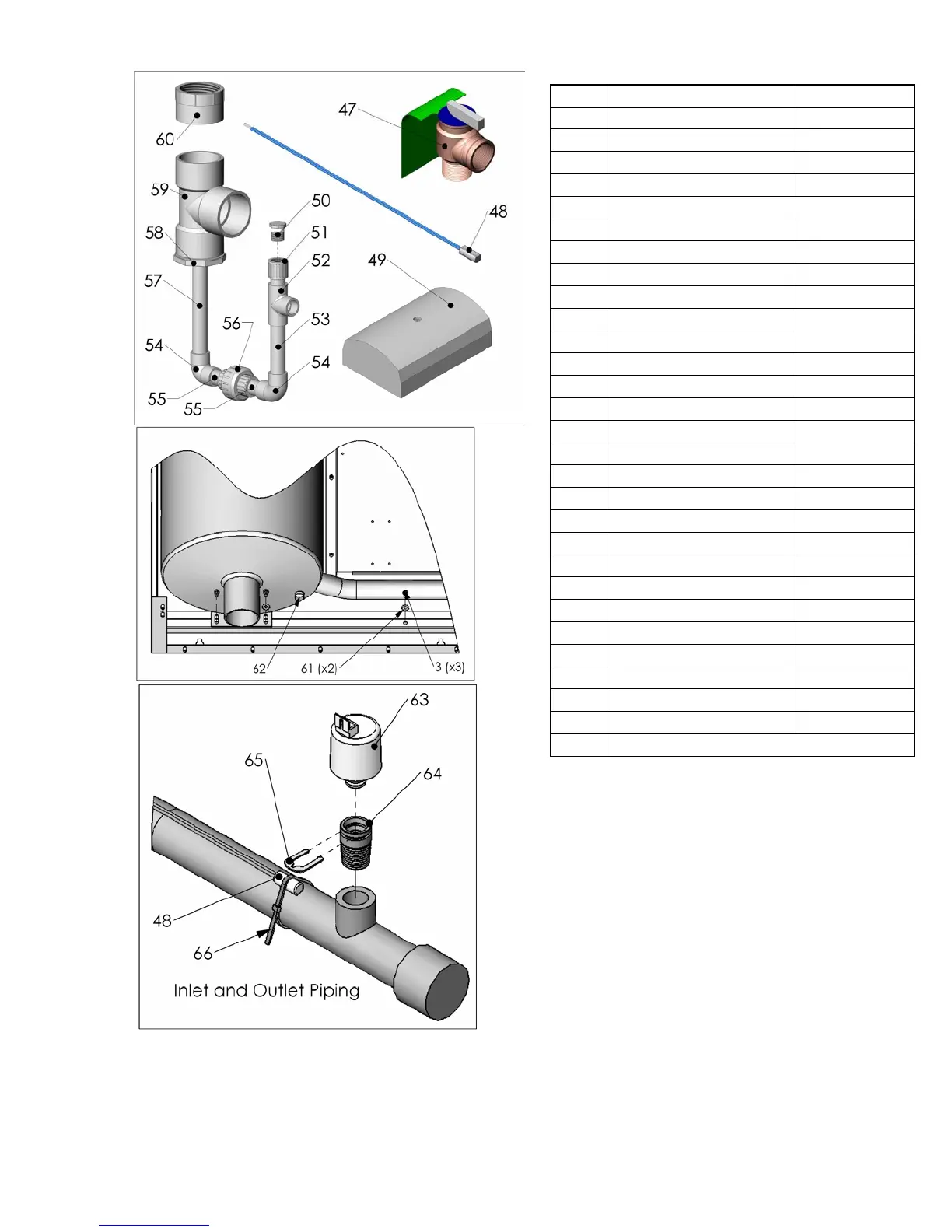

Ref Description Pt #
47 Pressure Relief valve
47-PRV
48 10K ohm thermistor
48-tkmr 917-43
49 10K ohm thermistor in housing
49- tkmr070
50 Trap fill plug - ½” PVC
50-PVC ½plug
51(a) Trap fill adaptor - ½” PVC
51A-PVC ½adp
51(b) Fill adaptor -¾ x ½” PVC
51B-PVC¾½adp
52(a) Trap tee - ½” PVC
52A-PVC ½tee
52(b) Trap tee - ¾” PVC
52B-PVC ¾tee
53(a) Trap neck - ½” PVC x 7”
53A-PVC ½ x 7”
53(b) Trap neck - ¾” PVC x 33”
53B-PVC ¾ x 33”
54(a) Trap - ½” PVC elbw 90° (2)
54A-PVC ½ 90°
54(b) Trap - ¾” PVC elbw 90° (2)
54B-PVC ¾ 90°
55(a) Trap pipe ½” PVC x 2” (2)
55A –PVC ½ x 2”
55(b) Trap pipe ¾” PVC x 2” (2)
55B –PVC ¾ x 2”
56(a) ½” PVC union (clean-out)
56A - ½ “ union
56(b) ¾” PVC union (clean-out)
56B - ¾ “ union
57(a) Trap drop - ½” x 8” (**)
57A- ½” x 8” (**)
57(b) Trap drop - ¾” x 34” (**)
57B- ¾” x34” (**)
58(a) Trap bushing– 2” x ½” (**)
58A- 2” x ½“ (**)
58(b) Trap bushing– 3” x ¾” (**)
58B- 3” x ¾ “ (**)
59(a) Trap Tee – 2” (**)
59A- 2” Tee (**)
59(b) Trap Tee – 3” (**)
59B- 3” Tee (**)
60 Vent adaptor – 2” (**)
60- 2” FIP (**)
61 #10 Star Washer
61-Fas-Vessel
62 Vent high limit 230°F
62-VHL 230
63 Water pressure sensor (2)
63-H505
64 P sensor brass mount (2)
64-HBrass
65 No longer used with H505
n/a
66
Nylon cable tie (2) 66-tempclamp
(***) specify PVC or CPVC, and if applicable, IPEX
System 636™
