IBC Technologies VFC 15-150 - Parts Diagrams

IBC Technologies Inc. 52 VFC 15-150 and VFC 45-225

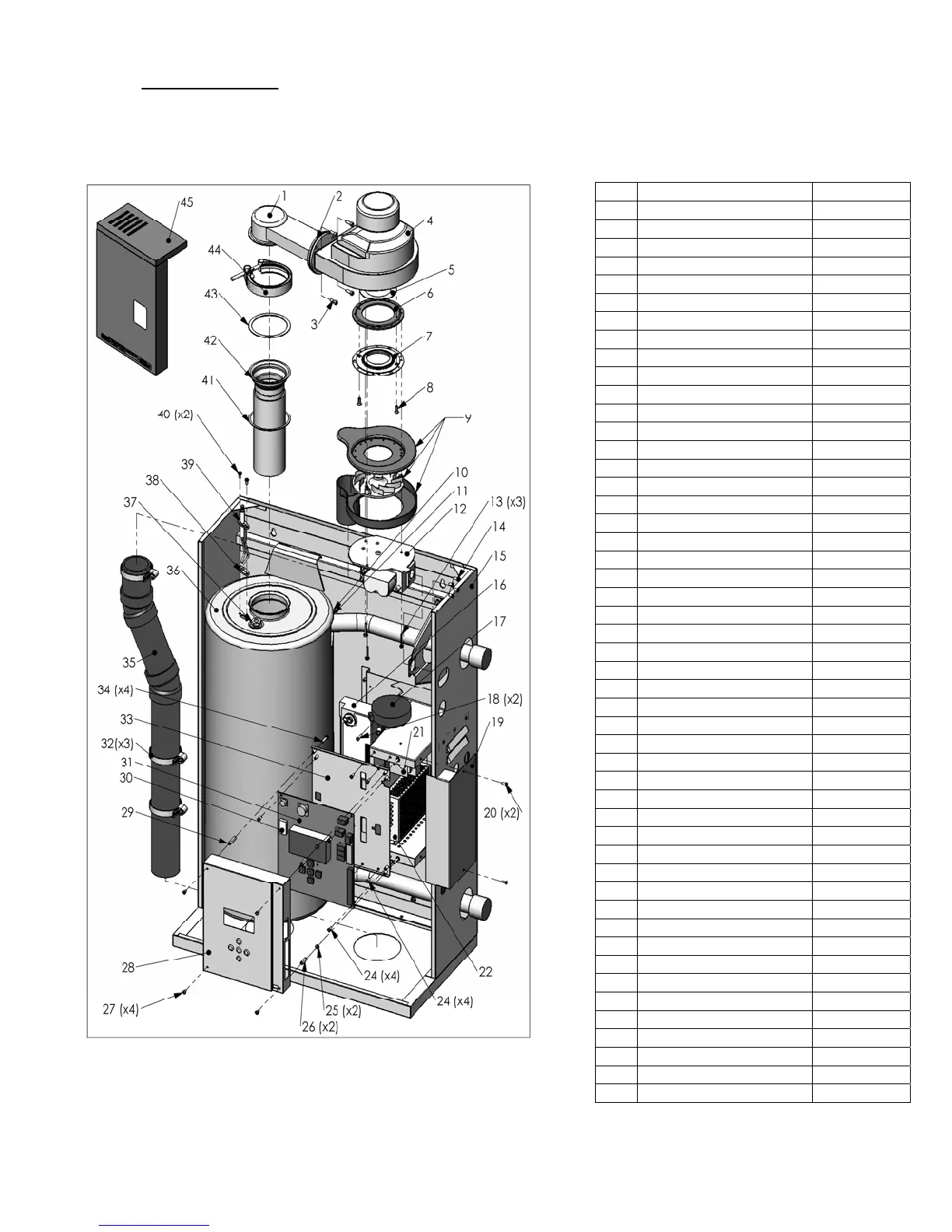

5.1 Parts Diagrams
VFC Modulating Boilers – VFC 15-150 and VFC 45-225
(Parts are common to both models unless marked: (a) for VFC 15-150 and (b) for VFC 45-
225)
Ref Description Pt #
1 Fan Coupler 01-FCA-L
2 FCA Gasket 02-Gsk-FCA
3 10-32 hex cap screw x4 03-Fas-FCA
4(a) Fan RG130 – 120 VAC 04AC-RG130
4(b) Fan RG148 – 120 VAC 04B-RG148
5(a) Fan O-Ring 05A-FanOR
5(b) Fan Adaptor Gasket 05B-Gsk FAP
6 Fan Adaptor Plate - steel 06-FAP
7 Fan Adaptor Seat - nylon 07-FAS
8(a) Fas - M3 x 10mm CS 08A – M3CS
8(b) Fas - M5 x 10mm CS 08B – M5CS
9 Intake air housing (3pcs) 09-air-in-3
10 Fas - M2.5 nut (x2) 10-HL nut
11 High limit 200°F bi-metal 11-HL200
12 Dungs zero gov gas v 12-Dungs
13 Fas - M4x30mm self tap(3) 13-fas-M4
14 Fas -M4 x 8mm GV to case 14- GV/C
15 Chassis 15-150 15- caseback
16 Fenwal Spark Module 16 - Fenwal
17 Diff Air Press Sensor 17 - H401
18 #8 Rob’n Screw- Fenwal (2) 18- fas-Fen
19 Control Corner Cover 19 - CCC
20 6-32 x 0.375” screws (2) 20-fas 632
3
/
8
21 24VAC Transformer 40 VA 21-transform
22(a No longer used 22 – N/A
24 6-32 x 0.375” screws (4 + 4) 24- fas 632
3
/
8
25 #6 flat washer (1/16”) (2) 23-6 wash
26 6-32 x 0.375” screws (4) 24-as-632
3
/
8
26 6-32 x 0.75” standoff (2) 26-sndoff 075
27 6-32 x 0.25” screws (4) 27-fas-632¼
28 Control Cover w/ keypad 28-cov/key
29 6-32 x 1” standoff (2) 32-sndoff 100
30 3V Battery Control 30-3vBatt
31 Controller Board SM005 31-SM005
32 Pipe Clamp (3) 32-pipeclamp
33 Control Mounting Plate 33-M005R1
34 6-32 x ¾” Phil Screw (4) 34-fas-SO/B
35 2” ABS intake assembly 35-ABS intake
36 Heat Exchanger 36-HX1
37 View port 37-View
38 Ignitor Gasket 38-Gsk-Ign
39 Ignitor 39-Ignitor
40 Ignitor Scrws M4 x 8mm (2) 40-Fas-Ig-M4
41 Burner Gasket ID 3.07” 41-Gsk-BL
42 Burner 42- Burner48
43 Burner Gasket ID 3.00” 43-Gsk-BU
44 V Clamp Assembly 44-VClamp
45(a Case Mod. Cover 15150 45A-Cv15150
45(b Case Mod. Cover 45225 45B-Cv45225
