Operations to carry out when replacing the abrasive hose from the gun (1) of the IBIX
Eco-blaster:
a) Unscrew the ring nut (7A) take out the nozzle (7B).
b) Unscrew the nozzle-holder (7) from the abrasive hose (8).
c) Unscrew the screw (5) of the gun safety button.
d) Unscrew the two screws (2) and pull them out completely.
e) Insert a screwdriver into the housing of the small tube (2A) to take it out,
and to do so gently hit the screwdriver using a rubber hammer
f) After removing the parts (2) and (2A) as shown in the figure, extract the
hose cover (6) as shown in the figure.
g) You can now extract hose (8) from the hose cover (6) pulling it out gently.

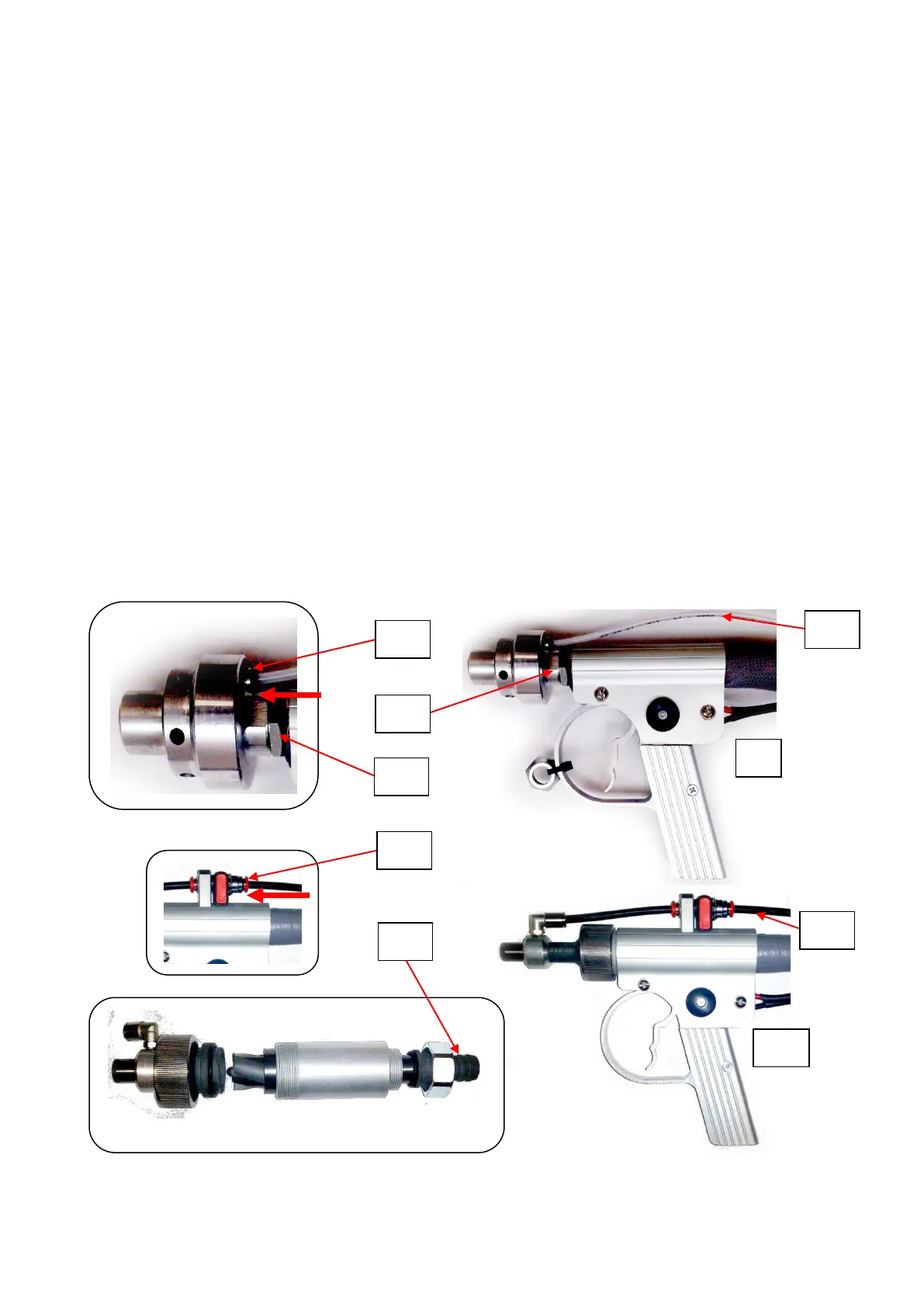

The procedure to follow for H2O guns (3) and HELIX (3A) is the same as with DRY
guns.
CAUTION: the H2O nozzle should not be dismounted completely, just unscrew the
ring nut (7C) from the abrasive hose (8).
CAUTION: for the Helix nozzle, unscrew only HOSEPIPE FITTING (7F)
Before unscrewing part (7C) and part (7F), ensure to extract the H2O (water) hose
(7D) after pushing the ring nut (7E) with your fingers.
