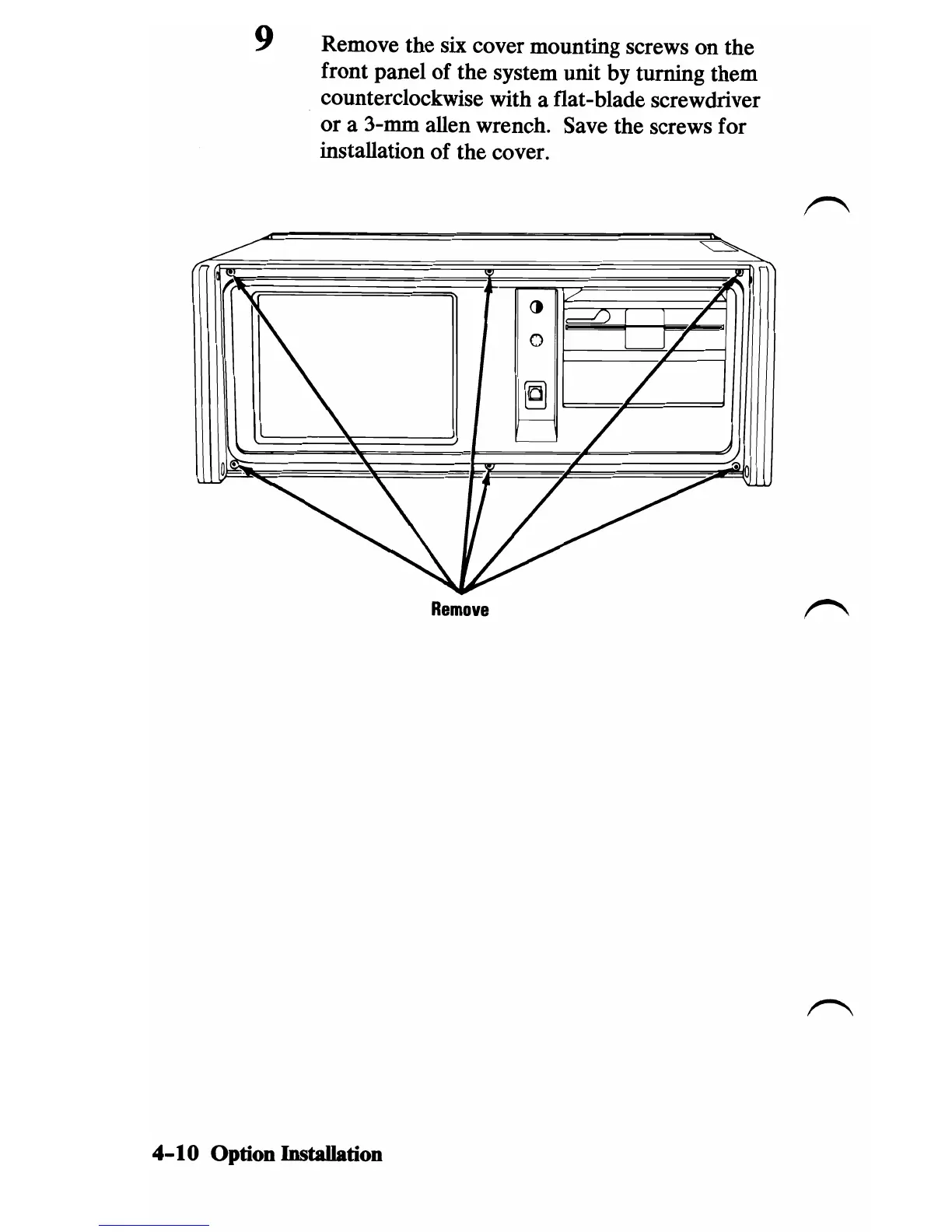

9 Remove the six cover mounting screws

the

front panel of the system unit by turning them

counterclockwise with a flat-blade screwdriver

or a 3-mm allen wrench. Save the screws for

installation

the cover.

Remove

4-10
