IBM 5155 User Manual

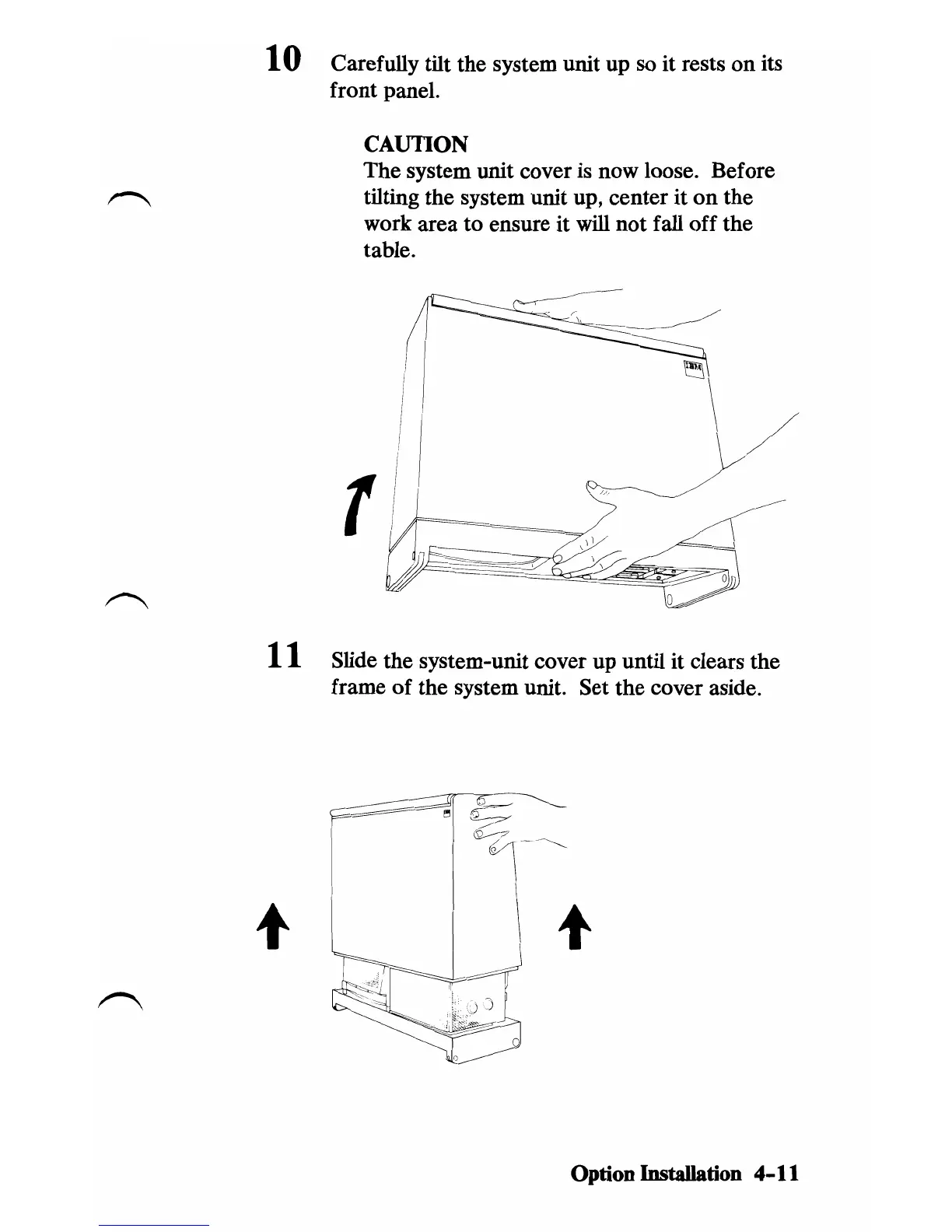

10 Carefully tilt the system unit up so it rests on its
front panel.
CAUTION
The system unit cover is now loose. Before
tilting the system unit up, center it
on the
work area to ensure it
will not fall off the
table.
11 Slide the system-unit cover up until it clears the
frame
of the system unit. Set the cover aside.
r~~~<~C~4! ~\~=
t l~;-J~cJ t
~~q~J;
Option Installation 4-11

IBM 5155 Specifications

General

Model	IBM 5155
Category	Desktop
Release Year	1984
CPU	Intel 8088
Clock Speed	4.77 MHz
Display	9-inch monochrome CRT
RAM	256 KB, expandable to 640 KB
Storage	One or two 5.25" 360KB floppy disk drives
Graphics	CGA (Color Graphics Adapter)
Ports	Parallel, Serial, Keyboard
Operating System	IBM PC DOS
Weight	30 pounds (13.6 kg)
