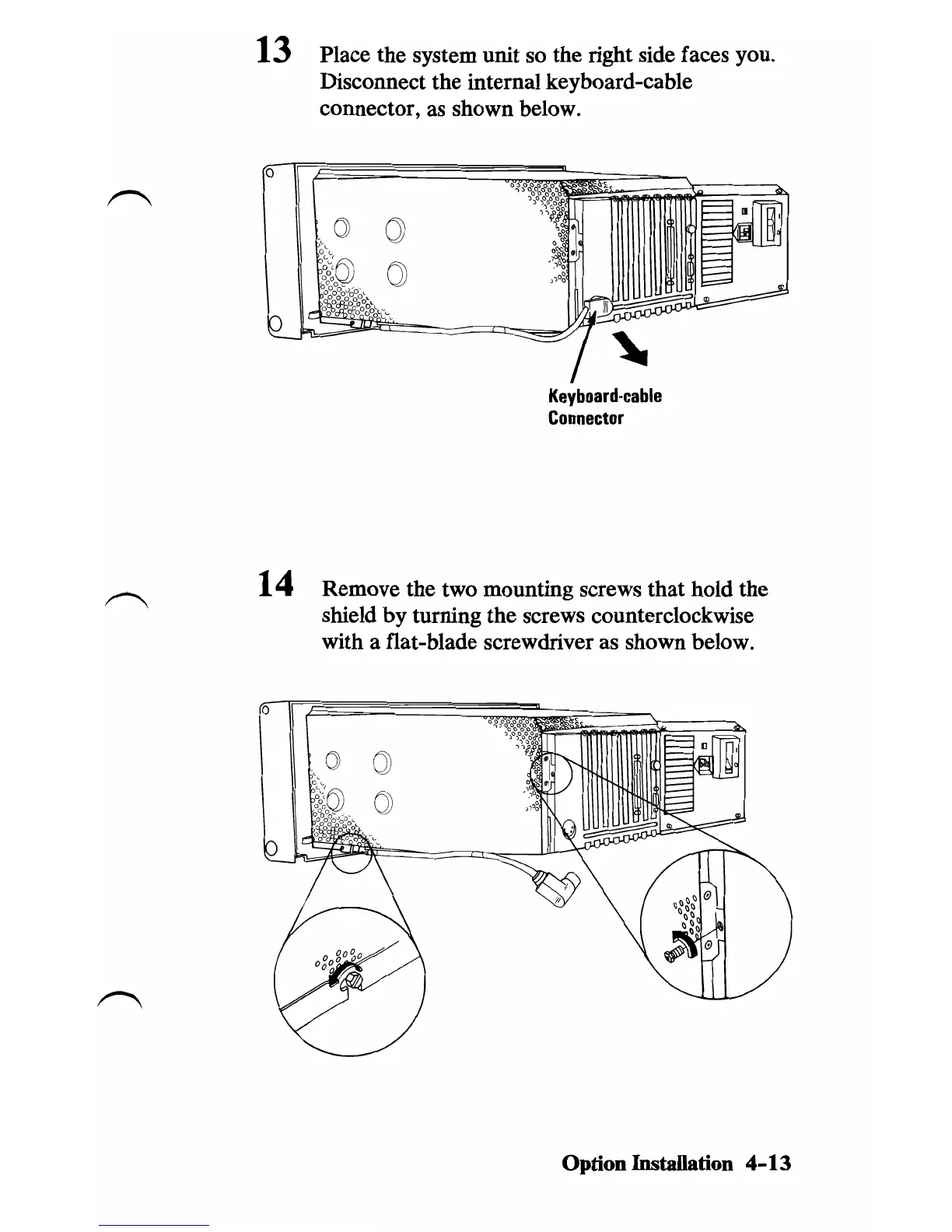

13 Place the system unit so the right side faces you.
Disconnect the internal keyboard-cable
connector, as shown below.
°lr
Keyboard·cable
Connector
14 Remove the two mounting screws that hold the
shield
by
turning the screws counterclockwise
with a flat-blade screwdriver as shown below.
o
Option Installation
4-13
