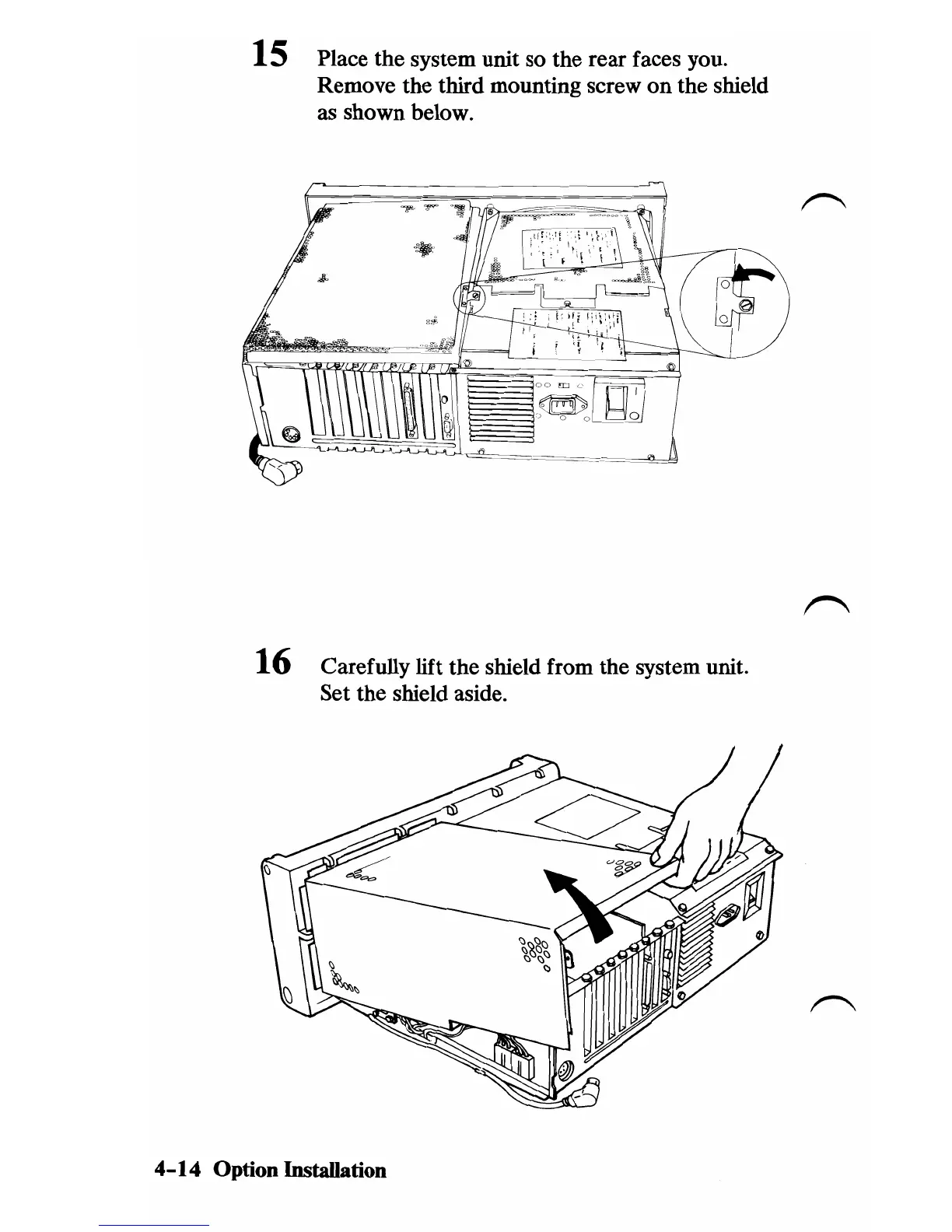

15 Place the system unit so the rear faces you.
Remove the third mounting screw
on
the shield
as
shown below.
16 Carefully lift the shield from the system unit.
Set the shield aside.
4-14
Option InstaIlation
