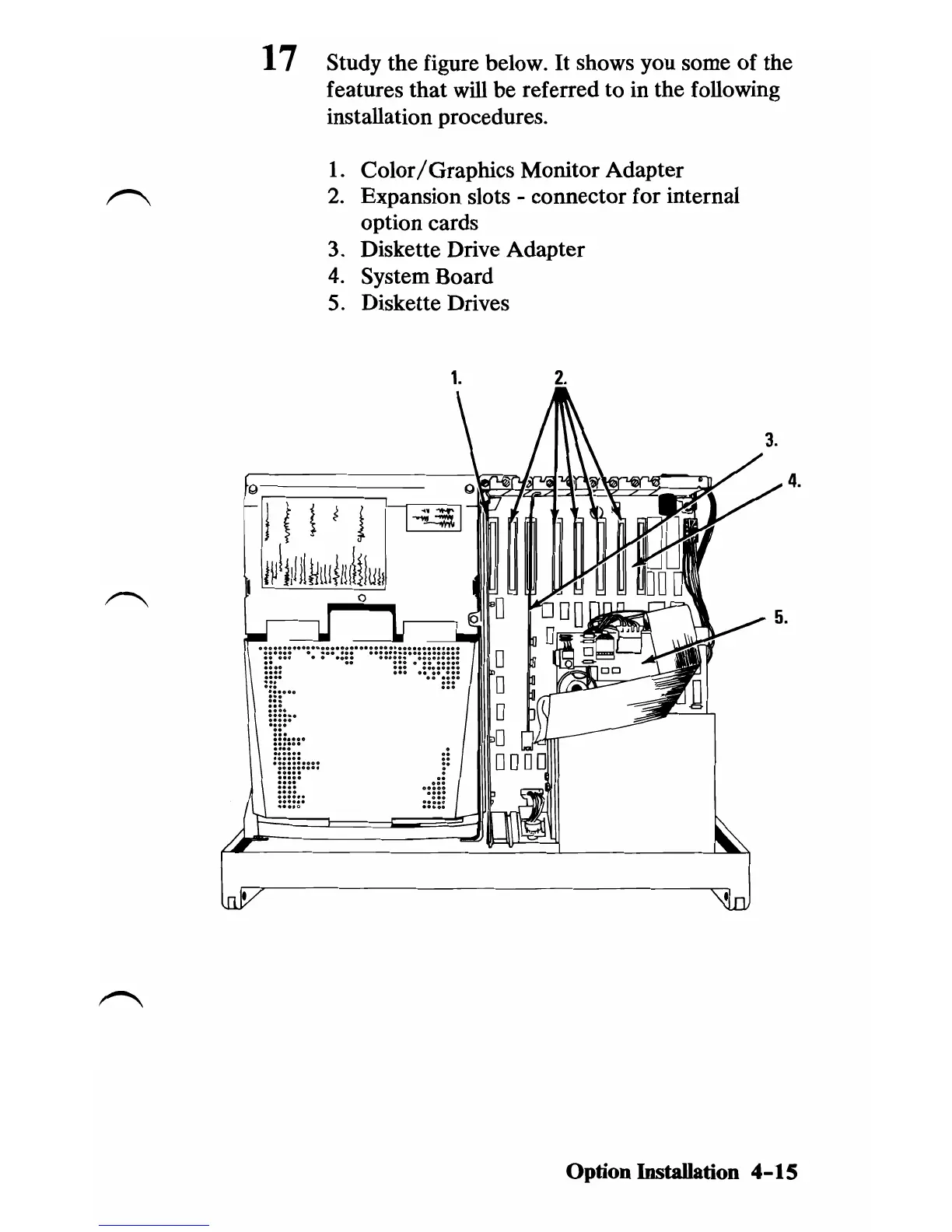

17 Study the figure below. It shows you some of the
features that will be referred to in the following
installation procedures.
1. Color/Graphics Monitor Adapter
2. Expansion slots - connector for internal
option cards
3. Diskette Drive Adapter
4. System Board
5. Diskette Drives
1.
4.
if! ~ i l~1
j~lilll!~lUillMlw!
.................... 0 ................ ..
•••••• .. 0 .. 0 ••• • .......... .
.. ... .... ..0. . .... .
111;;:: .. m ....
l!~i~"
:::: ..
::::~.
Option Installation 4-15
