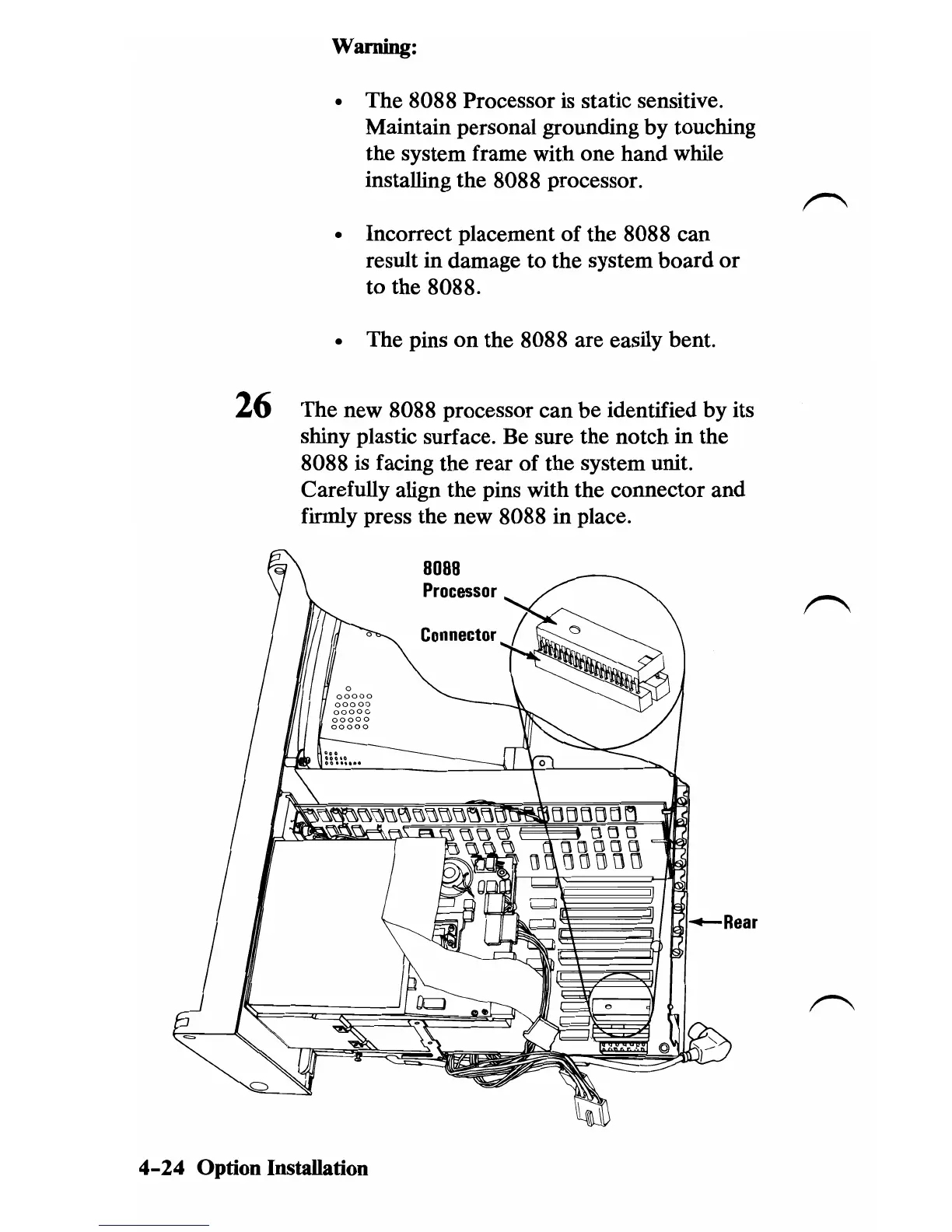

Warning:
The 8088 Processor
is
static sensitive.
Maintain personal grounding by touching
the system frame with one hand while
installing the 8088 processor.
Incorrect placement of the 8088 can
result in damage to the system board
or
to the 8088.
The pins
on
the 8088 are easily bent.
26 The new 8088 processor can
be
identified
by
its
shiny plastic surface. Be sure the notch in the
8088
is
facing the rear of the system unit.
Carefully align the pins with the connector and
firmly press the new 8088 in place.
8088
Processor
4-24
Option Installation
