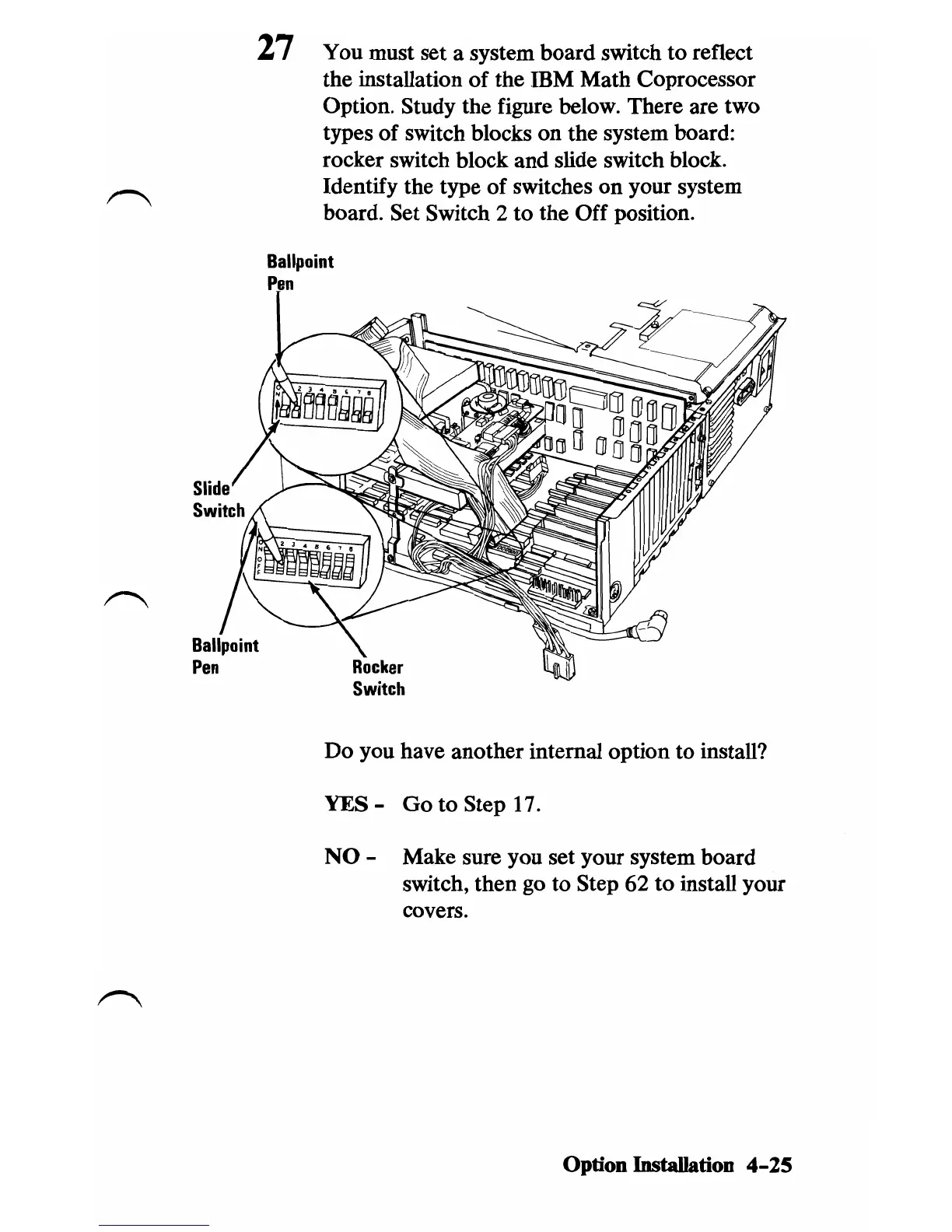

27 You must set a system board switch to reflect
the installation of the IBM Math Coprocessor
Option. Study the figure below. There are two
types of switch blocks on the system board:
rocker switch block and slide switch block.
Identify the type of switches
on
your system
board. Set Switch 2
to
the Off position.
Ballpoint
Do you have another internal option
to
install?
YES - Go to Step 17.
NO
- Make sure you set your system board
switch, then
go
to
Step 62 to install your
covers.
Option Installation
4-25
