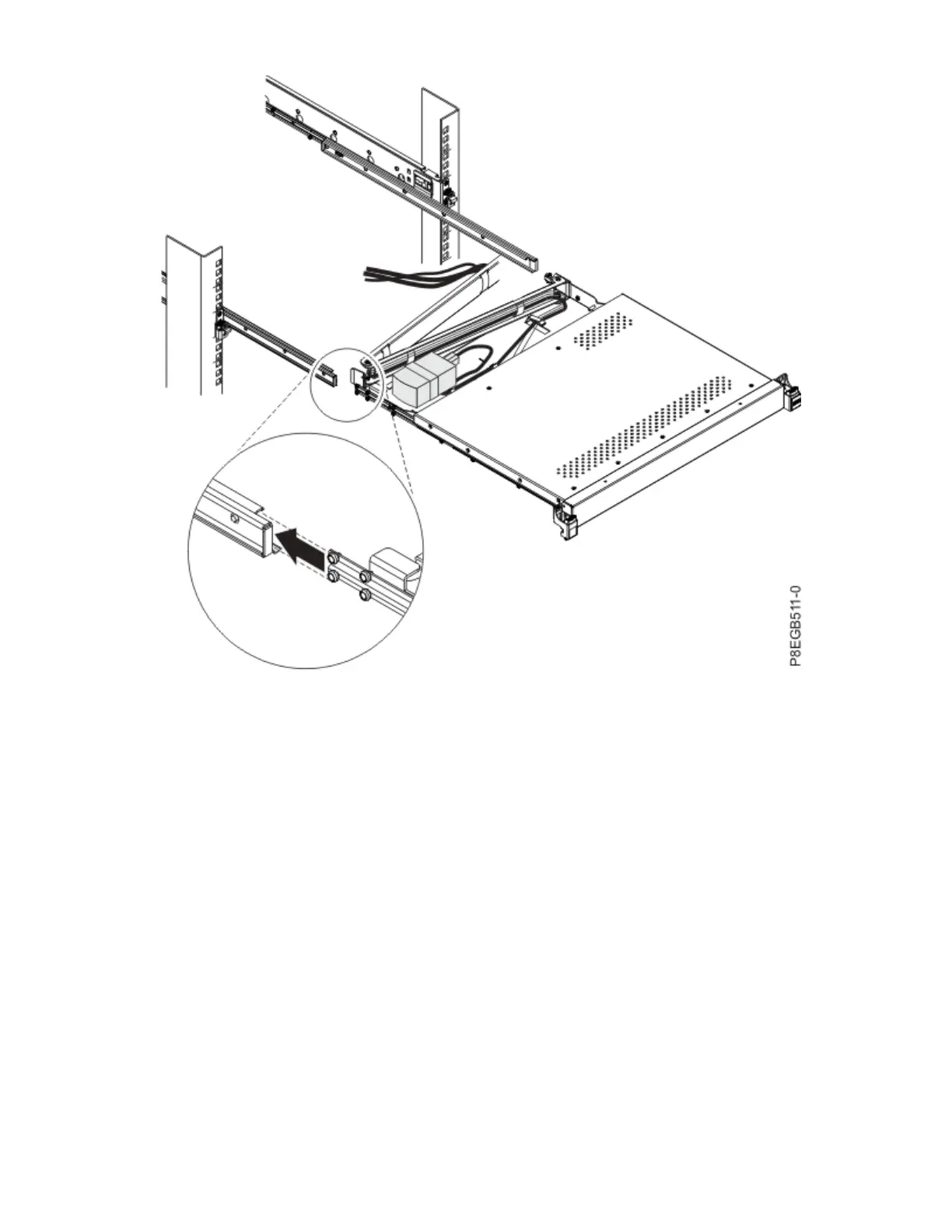

7. Press in both release latches 1; then, grasp both sides of the console unit and push it completely into
the rack 2. There will be resistance initially as the inner and outer rails are aligned. Pull the console
unit out halfway, and then push it back in to seat the console unit in the rails. Do this a few times until
the console unit moves smoothly in the rails.
Installing the 7316-TF4 18.5-Inch Flat Panel Rack-Mounted monitor and keyboard
11
