9. Connect all cables to either a server or a console switch in the rack. Connect the power cord to the
short jumper cord on the cable-management arm, and then connect the power cord to a properly
grounded electrical outlet or power distribution unit (PDU). For information about installing a console
switch behind the console unit in the rack, see Installing the Optional Console Switch.
10. Fully extend the console unit from the front of the rack, and then neatly route the cables within the
rack and secure them with cable straps along the way.

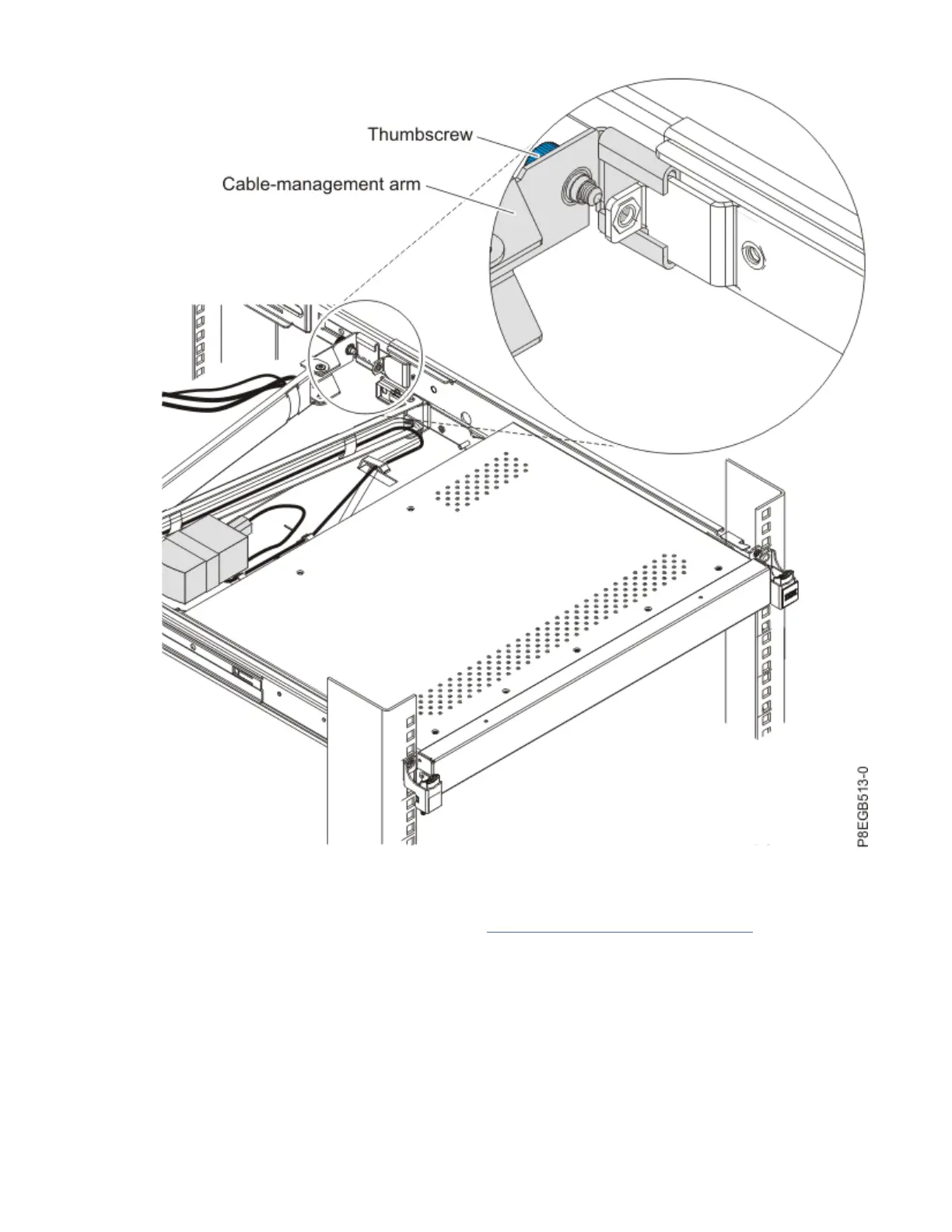

Important: If you have excess video cable, do not coil it as shown in the following illustration.
Installing the 7316-TF4 18.5-Inch Flat Panel Rack-Mounted monitor and keyboard
13
