CAUTION: Pinch hazard. (L012)
4. Fully extend the console unit out of the rack.

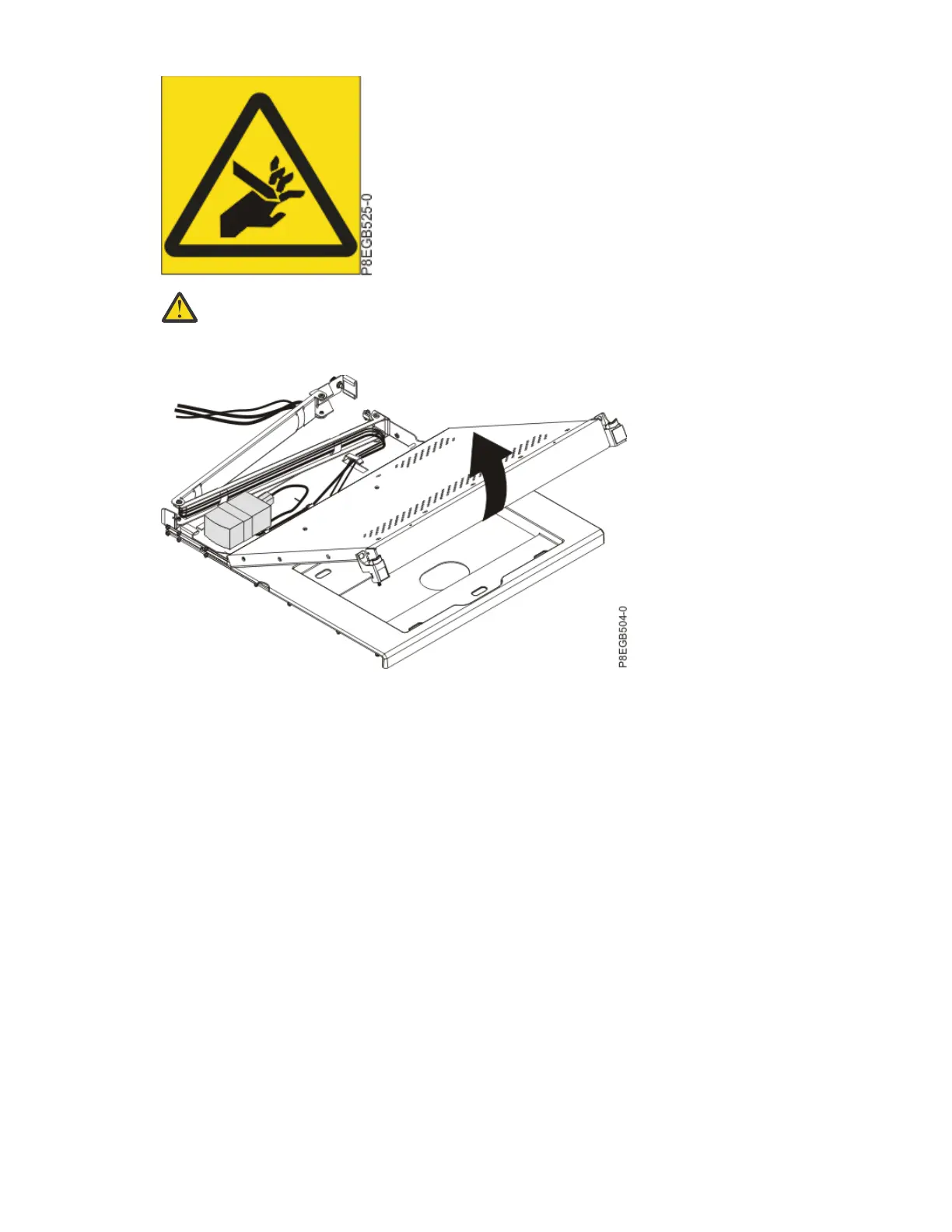

5. Lift the front of the flat-panel display and raise the display to the full upright position.
6. Remove the old keyboard from the console unit.
7. Unpack the replacement keyboard.
Note: Do not extend the keyboard feet. The flat-panel display screen might be damaged if the feet is
extended when the display is closed.
8. Hold the new keyboard near the keyboard tray and carefully route the keyboard-and-mouse cable
down through the keyboard tray cutout and up through the cutout that is behind the flat-panel
display. (See the illustration.) Carefully pull the cable through the cutouts.
34
Power Systems: Installing the 7316-TF4 18.5-Inch and 7316-TF5 17.3-Inch Flat Panel Rack-Mounted
Monitor and Keyboard
