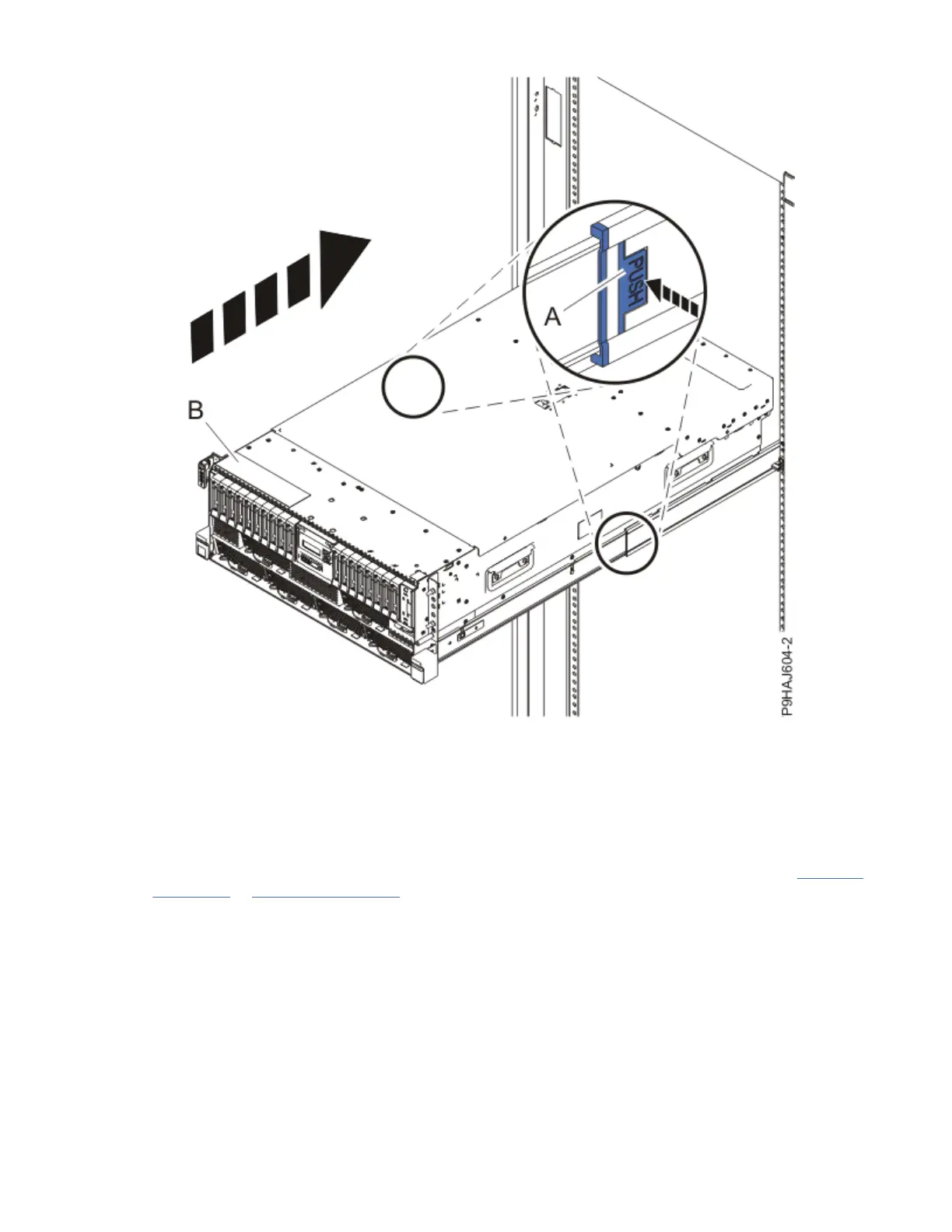

Figure 31. Placing the system into the operating position
3. For a rack-mounted system, push the system unit (B) as shown in the previous gure back into the
rack until both release latches lock the system into position.
Secure the cable management arm with hook-and-loop fasteners around the back side of the cable
management arm, but not around the cables.
4. Using your labels, reconnect the power cords (A) to the system unit.
Fasten the power cords (A) to the system using the hook-and-loop fasteners (B) as shown in Figure 32
on page 35 or Figure 33 on page 36.
34
Power Systems: Power Systems: Drive backplanes
