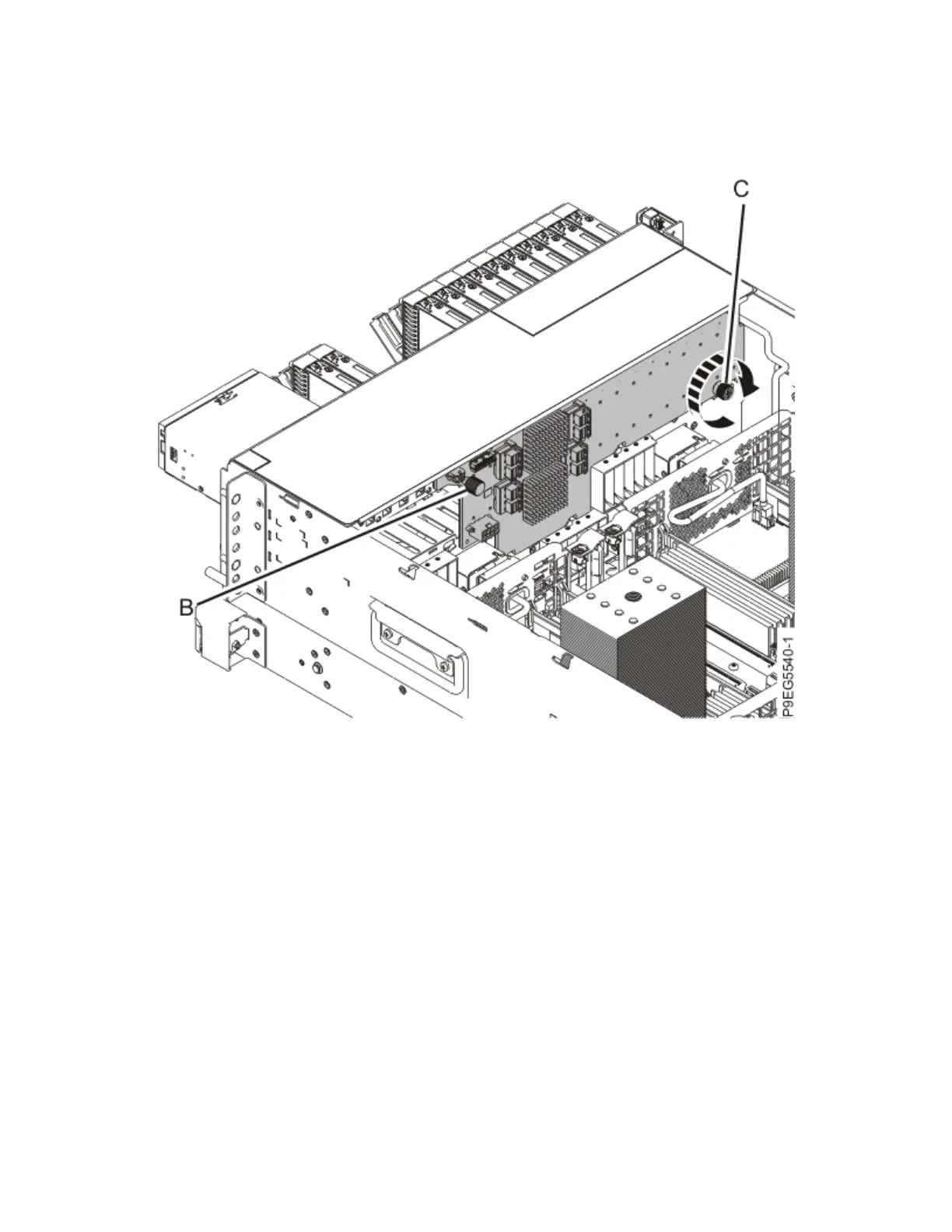

Figure 50. Replacing the disk drive backplane
4. Reconnect the signal cable (A) and the power cable (B) to the disk drive backplane as shown in the
following gure.
Push the connectors in until the latches click.
56
Power Systems: Power Systems: Drive backplanes
