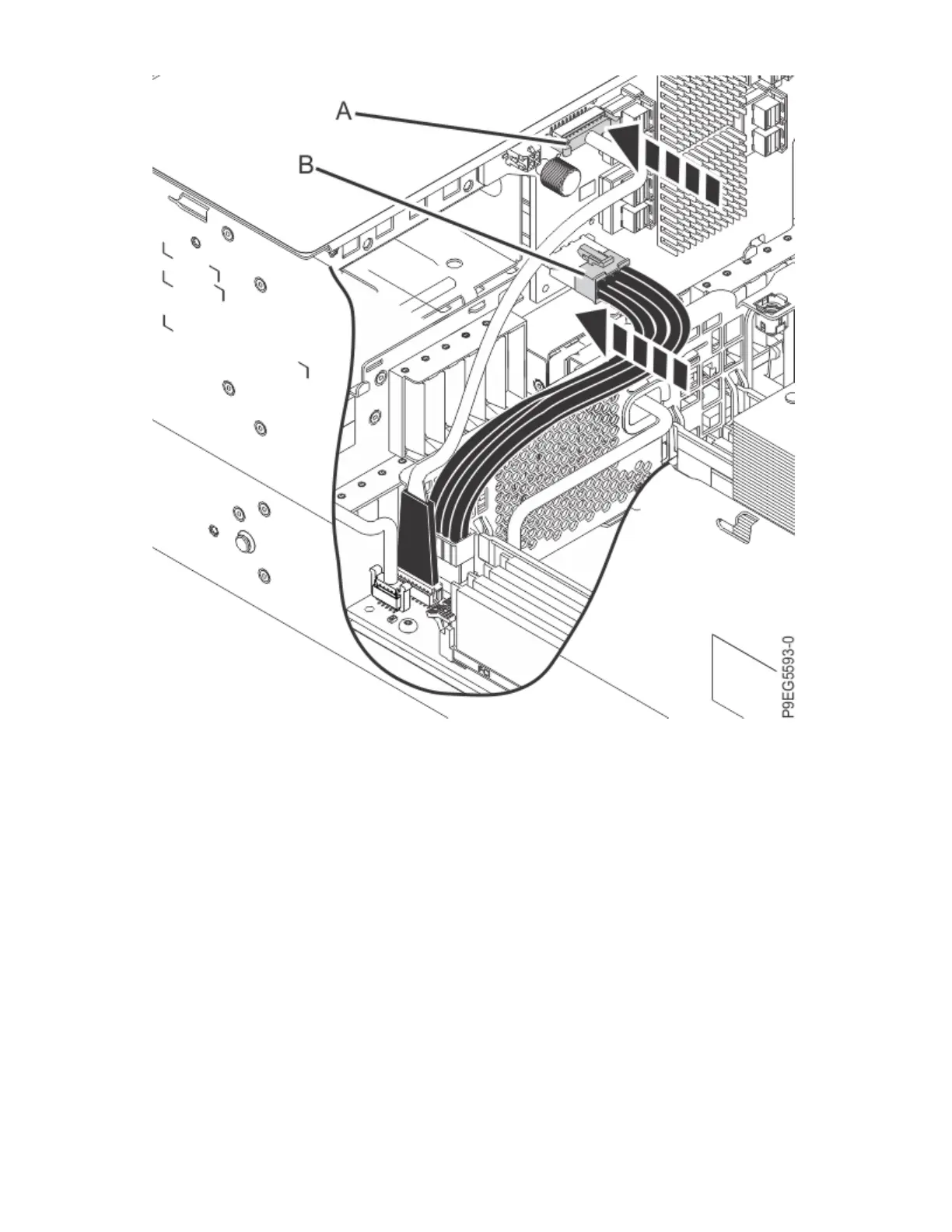

Figure 51. Reconnecting the power cable and signal cable to the disk drive backplane
5. Using your labels, reconnect the front SAS cables to the disk drive backplane connectors (J2) and (J4)
as is shown in the following gure.
Push the connectors in until the latches click. Also ensure that the front SAS cables are fully seated
into the SAS controller card.
Drive backplanes for the 9009-41A, 9009-41G, 9009-42A, 9009-42G, or 9223-42H
57
