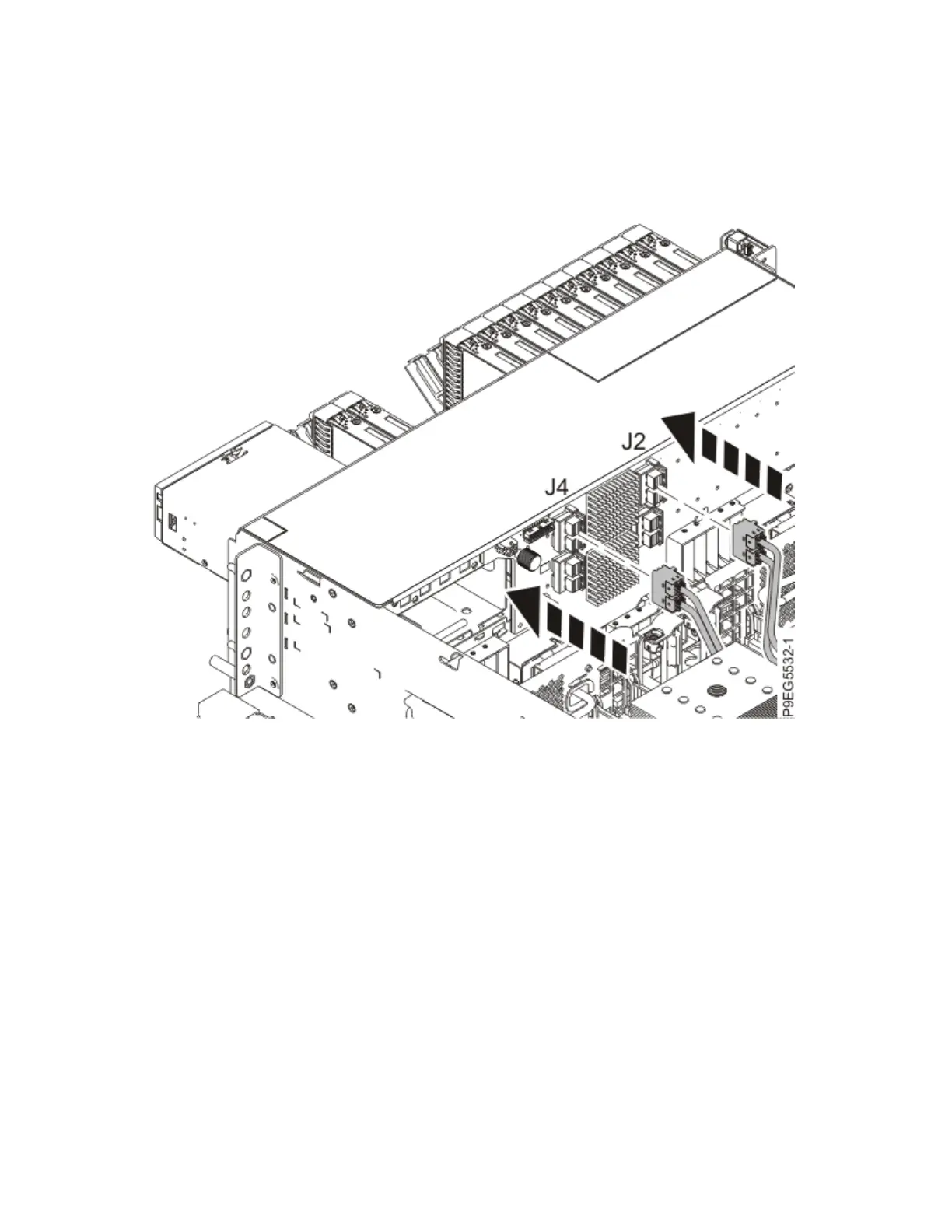

Figure 52. Reconnecting the front SAS cables
Note: One SAS cable connects the disk drive backplane connector J2 to the P1 connector on the
storage controller in slot P1-C49. The other SAS cable connects the disk drive backplane connector J4
to the P1 connector on the storage controller in slot P1-C50. See the following gure.
