Figure 59. Installing the service access cover

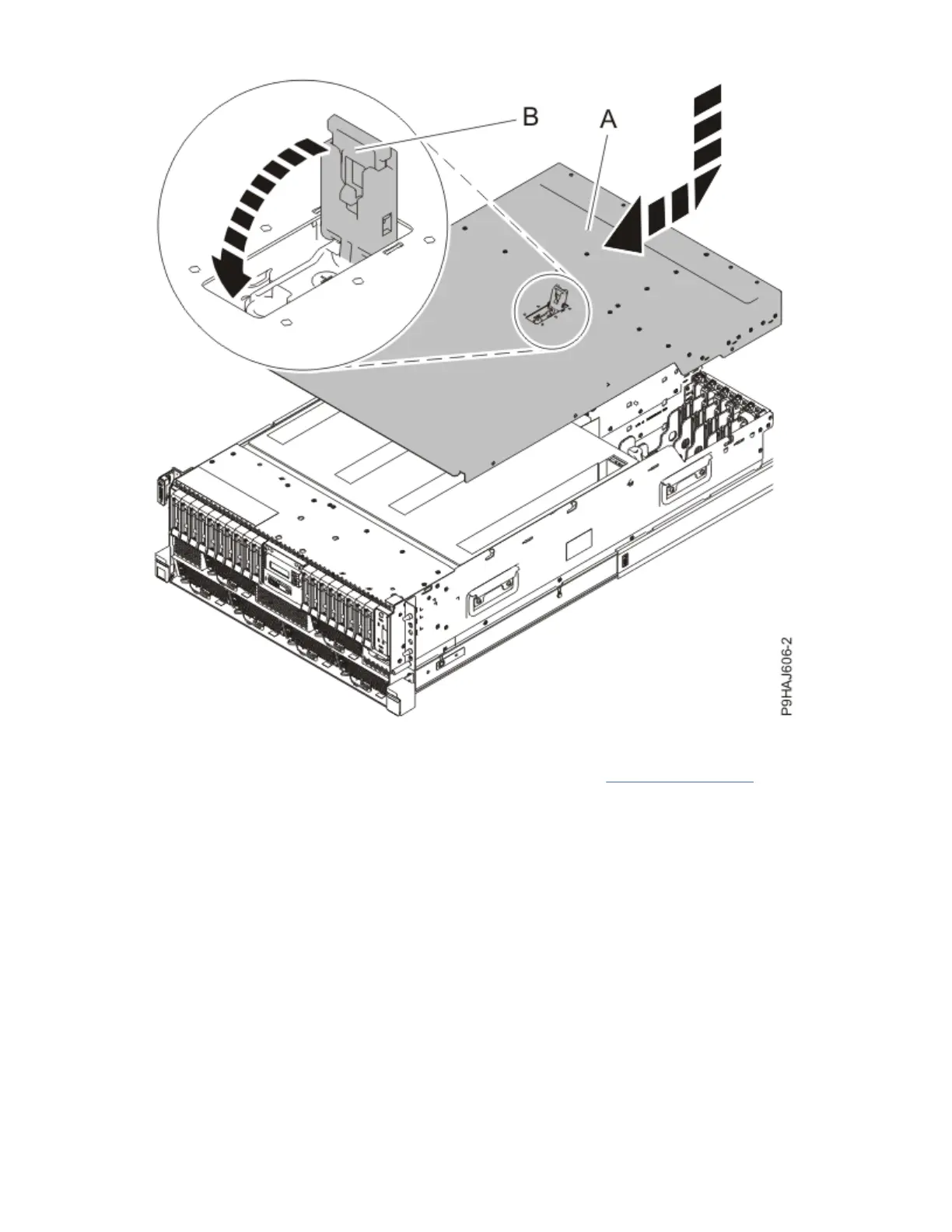

For a stand-alone system, complete the following steps. Refer to Figure 60 on page 66.
a. Slide the cover (B) on to the system unit as shown.
b. Close the latch release (A) by pushing it in the direction shown.
Drive backplanes for the 9009-41A, 9009-41G, 9009-42A, 9009-42G, or 9223-42H
65
