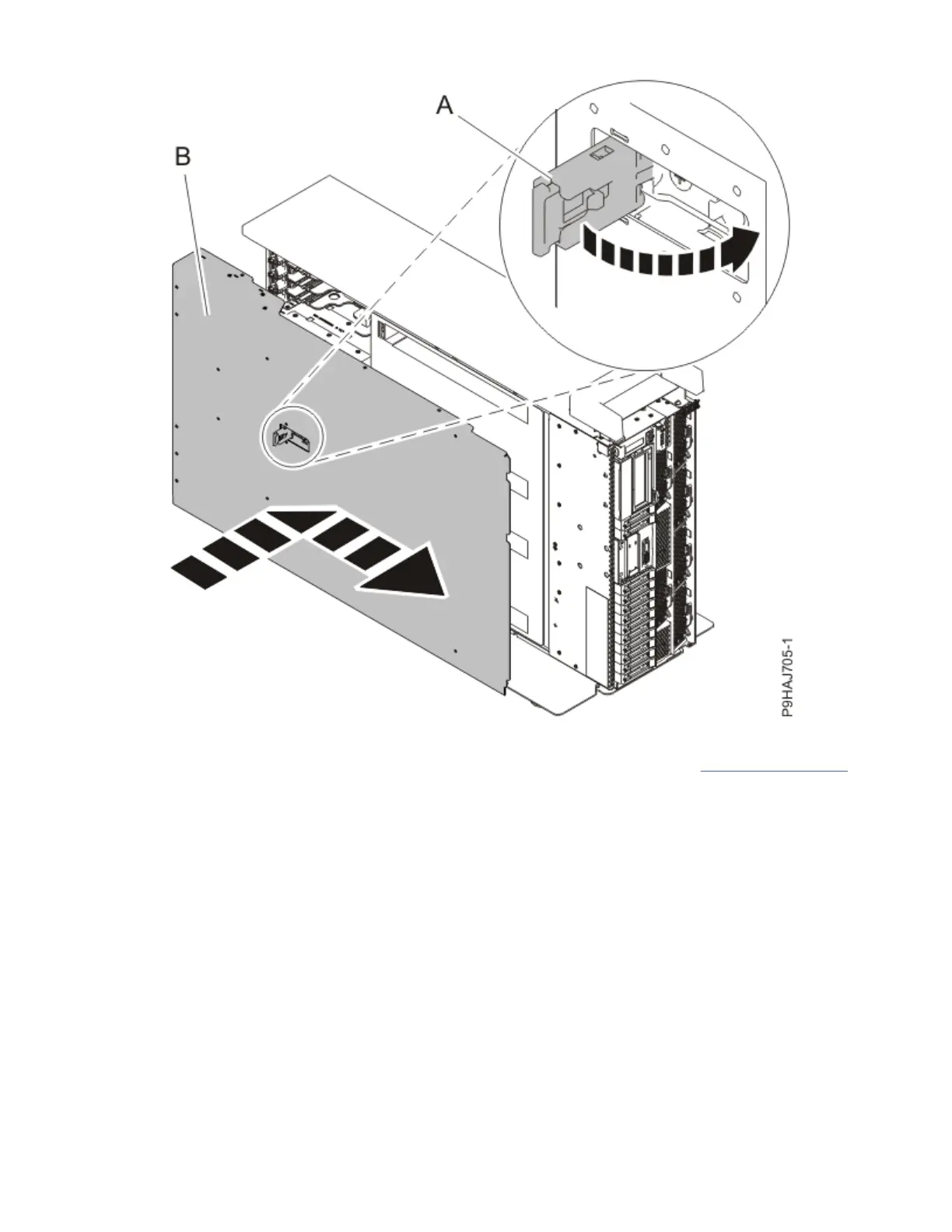

Figure 60. Installing the service access cover
2. For a rack-mounted system, unlock the blue rail safety latches (A) as shown in Figure 61 on page 67
by pushing them inward.
Ensure that the cable management arms can move freely. Ensure that the cables at the rear of the unit
do not catch or bind as you push the unit into the operating position.
66
Power Systems: Power Systems: Drive backplanes
