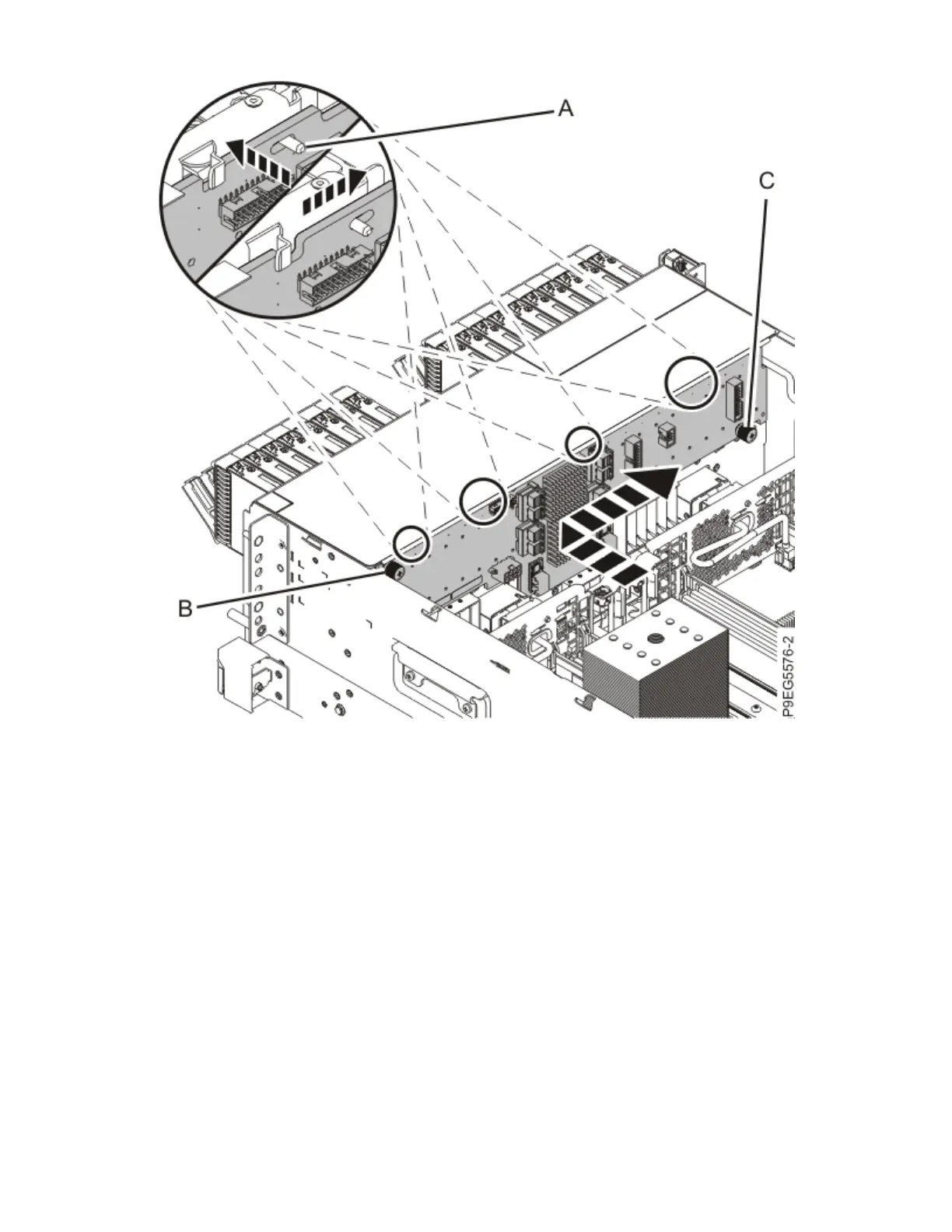

Figure 75. Replacing the disk drive backplane by using alignment pins
3. Carefully tighten the captive thumbscrews (B) and (C) to secure the disk drive backplane to the system
chassis as shown in the following gure.
