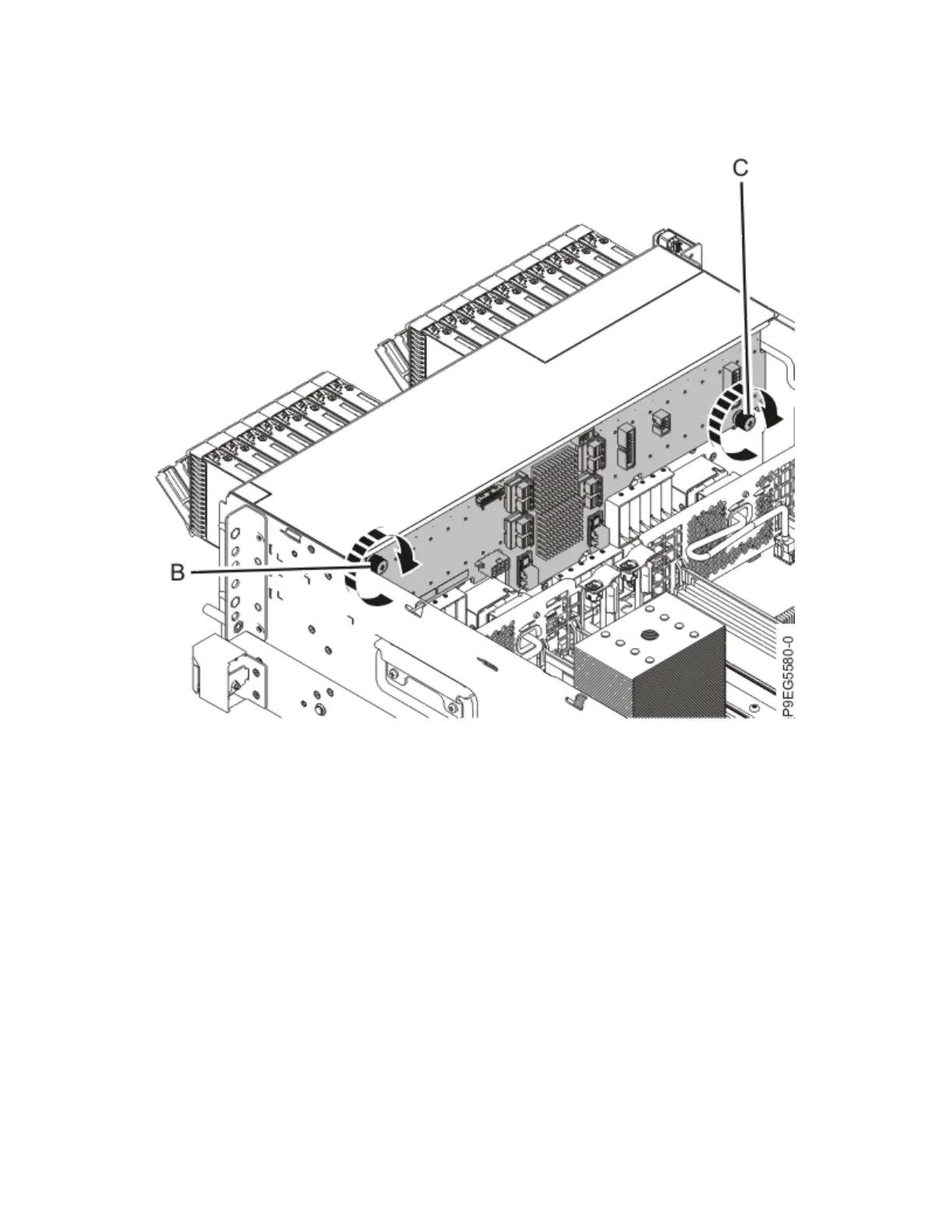

Figure 76. Replacing the disk drive backplane
4. Reconnect the signal cable (A) and the power cable (B) to the disk drive backplane as shown in the
following gure.
Push the connectors in until the latches click.
Drive backplanes for the 9009-41A, 9009-41G, 9009-42A, 9009-42G, or 9223-42H
