IBM DS4700 - Unacceptable EXP710, EXP810 and EXP100 Intermix Configuration in a DS4700 Express Storage Subsystem Environment

Table 28. Description of Figure 77
Number Description
1 DS4700 Express Storage Subsystem
2 EXP100
3 EXP810
4 IN port
5 OUT port
6 Port 1B
7 Port 1A
Figure 78 on page 97 shows cabling variations when intermixing EXP100, EXP710,
and EXP810 storage expansion enclosures behind a DS4700 Express Storage
ESM B
ESM A
ESM BESM A
ESM B
ESM A
ESM BESM A
1
22
3
4
5
4
5
4
45 5
6
7
6
7
6
7
7
6
exp100810u
EXP100
EXP100
EXP810
EXP810
DS4000 Storage Subsystem

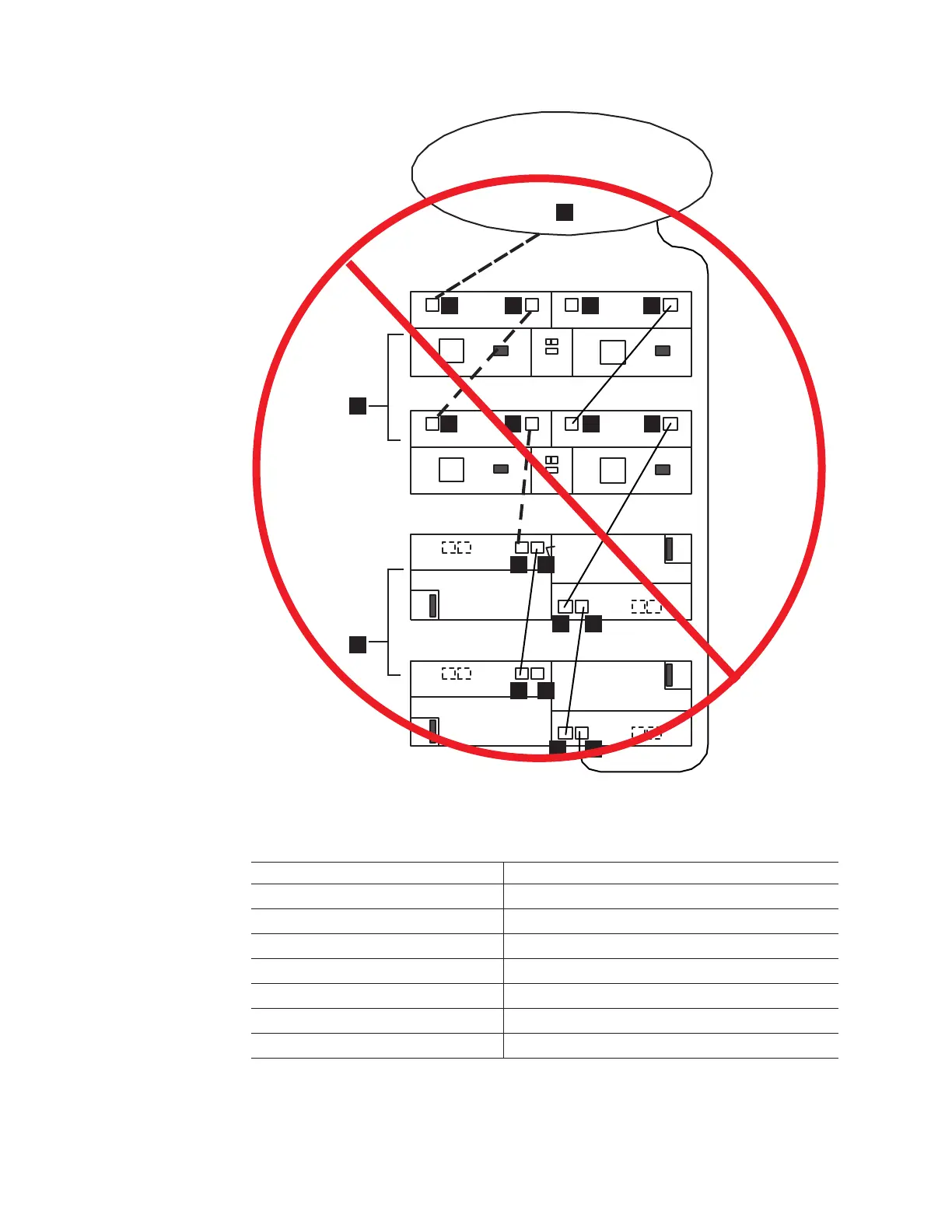

Figure 77. Unacceptable EXP710, EXP810 and EXP100 intermix configuration in a DS4700
Express Storage Subsystem environment
