Table 32. DS4700 Express Storage Subsystem (Model 72) location of host ports on
controllers
Number Description
1 Ethernet ports
Note: Ethernet ports on the left controller are
labeled 2 and 1. On the right controller, they are
labeled 1 and 2.
2 Serial port
Table 33. DS4700 Express Storage Subsystem (Model 72) location of host ports on
controllers
Number Description
1 Ethernet ports
Note: Ethernet ports on the left controller are
labeled 2 and 1. On the right controller, they are
labeled 1 and 2.
2 Serial port
Configuring the storage subsystem
You must configure the storage subsystem configuration after you install the storage
subsystem in a rack cabinet. Use the information in the following sections to
configure your storage subsystem configuration.
Storage subsystem management methods
Before you configure the storage subsystem, determine which method of storage
subsystem management you want to use. You can manage the storage subsystems
in either of two ways: host-agent (in-band) management or direct (out-of-band)
management.
For more information on setting up in-band or out-of-band management
connections, refer to the DS4000 Storage Manager Installation and Host Support
Guide for the operating system of the host computer that will be used to manage
the storage subsystem.
Important: If the operating system of the host server that the storage subsystem
logical drives are mapped to is not Microsoft Windows 2000 or Server
2003, then you have to make a direct (out-of-band) management
connection to the storage subsystem to set the correct host type first.
ds470026
2
1
2
1

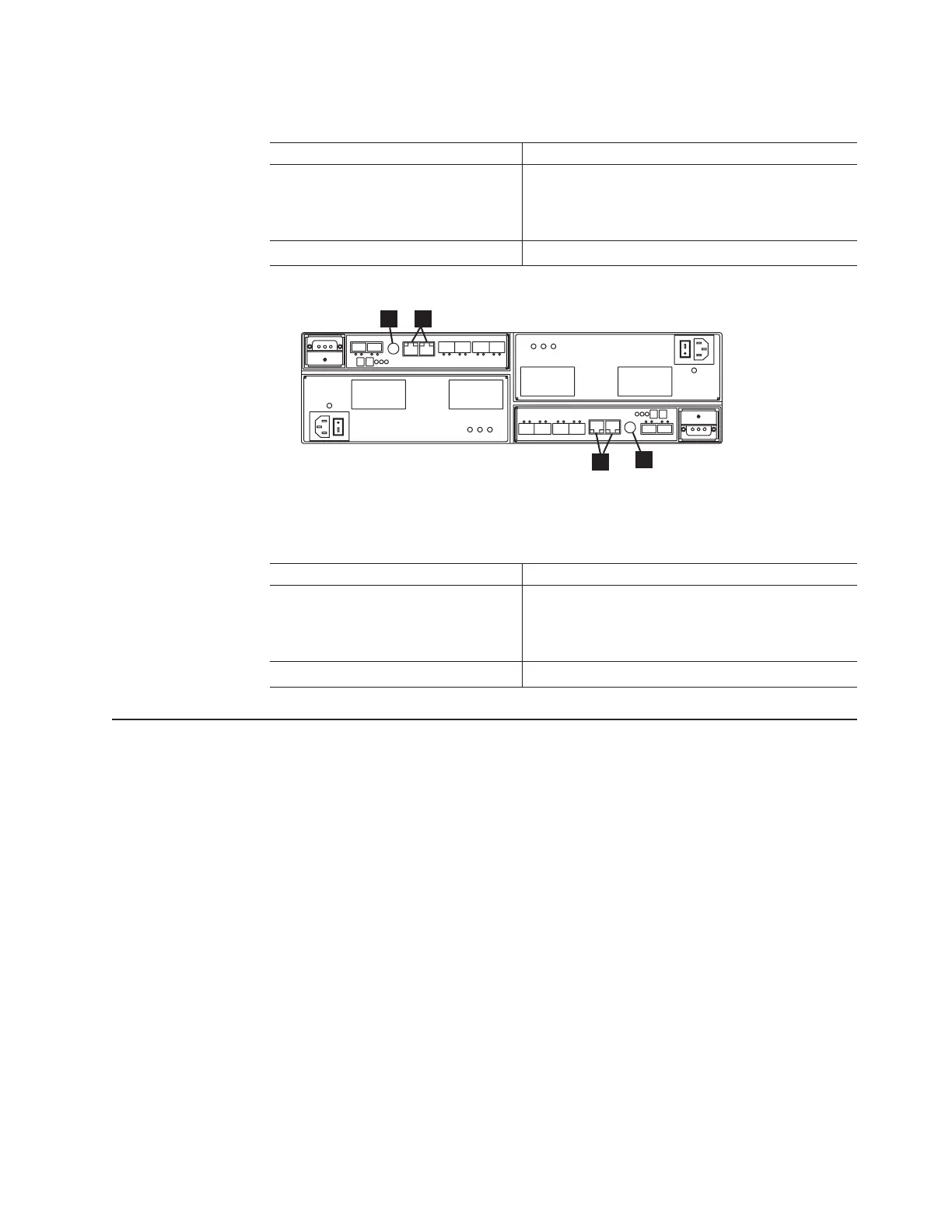

Figure 80. Ethernet and serial port locations on DS4700 Express model 72
Chapter 3. Cabling the storage subsystem 101
