Figure 91 shows an example of a two-cluster configuration.
Installing the storage subsystem configuration
Using the information gathered in the previous sections, install the host systems
and host adapters.
Notes:
1. See the documentation provided with your host adapters for installation
requirements and procedures.
2. Use the correct host adapter driver. For the latest supported host adapters and
drivers, go to the following Web site:
www.ibm.com/systems/support/storage/disk
Host system
with two host
adapters
Host system
with two host
adapters
Switch
Switch
DS4700
DS4700
ds470030

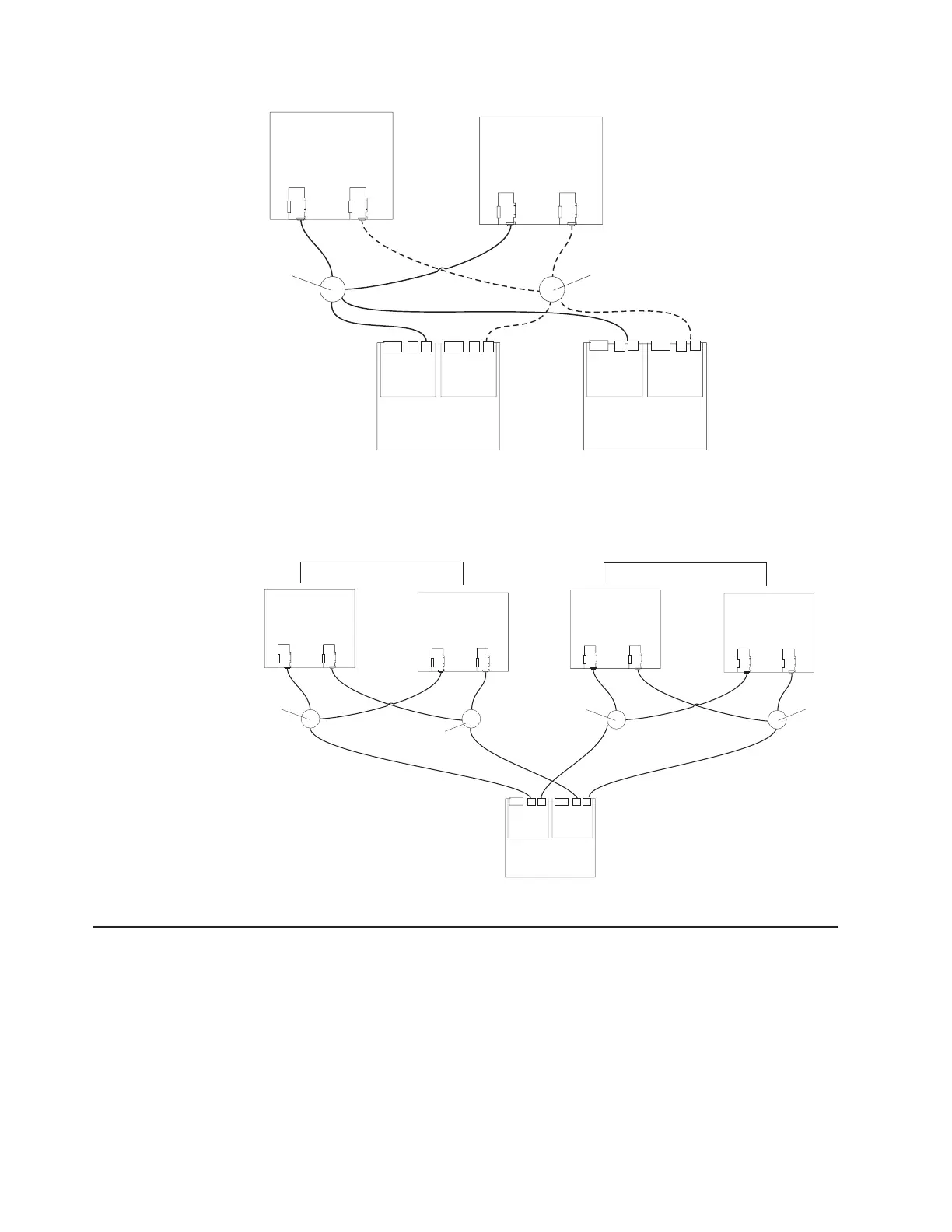

Figure 90. Example of two storage subsystems in a dual SAN environment
Host system
with two host
adapters
Host system
with two host
adapters
Switch
Switch
Host system
with two host
adapters
Host system
with two host
adapters
Switch
Switch
ds470031
DS4700
Cluster 1
Cluster 2
Figure 91. Example of a two-cluster configuration
110 IBM System Storage DS4700 Express Storage Subsystem: Installation, User’s and Maintenance Guide
