page 106, or a maximum of four redundant host connections for the DS4700
Express Storage Subsystem model 72, as shown in Figure 86 on page 107.
Note: Figure 86 on page 107 shows a connection to a fibre channel host bus
adapter in the DS4700 Express Storage Subsystem. You can also
connect to fibre channel switch ports (not shown).
Host 1, Host Adapter 1 and 2
Host 2, Host Adapter 1 and 2
ds470023
12
12

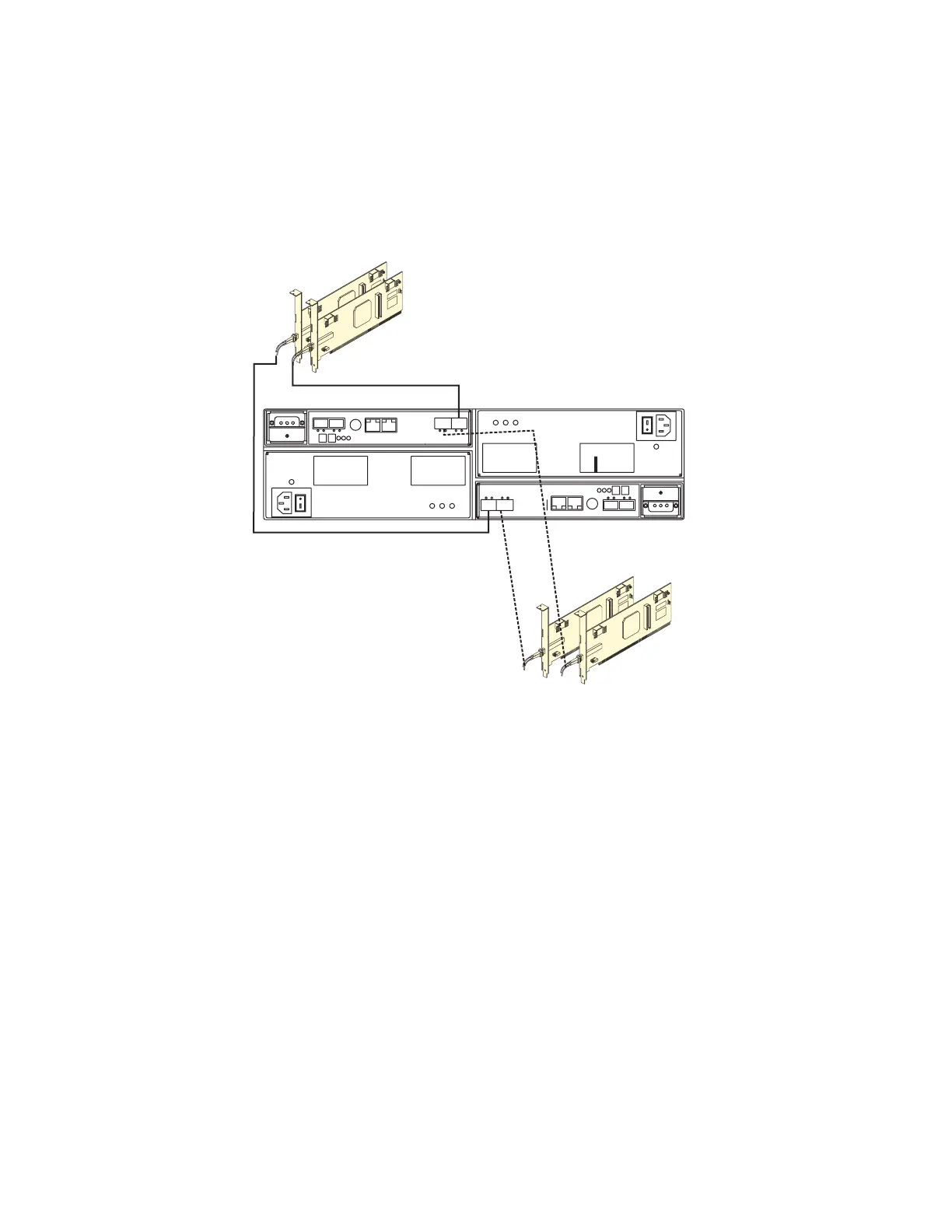

Figure 85. Cabling diagram for two redundant host connections
106 IBM System Storage DS4700 Express Storage Subsystem: Installation, User’s and Maintenance Guide
