Weight
The total weight of the storage subsystem depends on the number of components
installed. Table 10 lists the maximum, empty, and shipping weights for the storage
subsystem in different configurations. Table 11 lists the weight of each component.
Table 10. DS4700 Express weights
Unit
Weight
Maximum
1
Empty
2
Shipping
DS4700 Express 40 kg (88 lb) 16.4 kg (36.1 lb) 52.2 kg (115.0 lb)
1
Chassis with all CRUs and 16 drives.
2
Chassis without CRUs and drives but with front cage frame and midplane.
Table 11. DS4700 Express component weights
Unit Weight
Drive 0.75 kg (1.65 lb)
Power supply and fan unit 3.60 kg (7.95 lb)
Controller (including cache battery backup
unit)
2.8 kg (6.1 lb)
Battery unit 0.9 kg (2 lb)
Shipping dimensions
Table 12 lists shipping carton dimensions. The height shown includes the height of
the pallet.
Table 12. DS4700 Express shipping carton dimensions
Height Width Depth
45.7 cm (18.0 in.) 62.6 cm (24.5 in.) 80.7 cm (31.75 in.)
77027-03
44.70 cm (17.60 in.)
12.95 cm (5.1 in.)
57.15 cm (22.5 in.)
48.26 cm (19.00 in.)

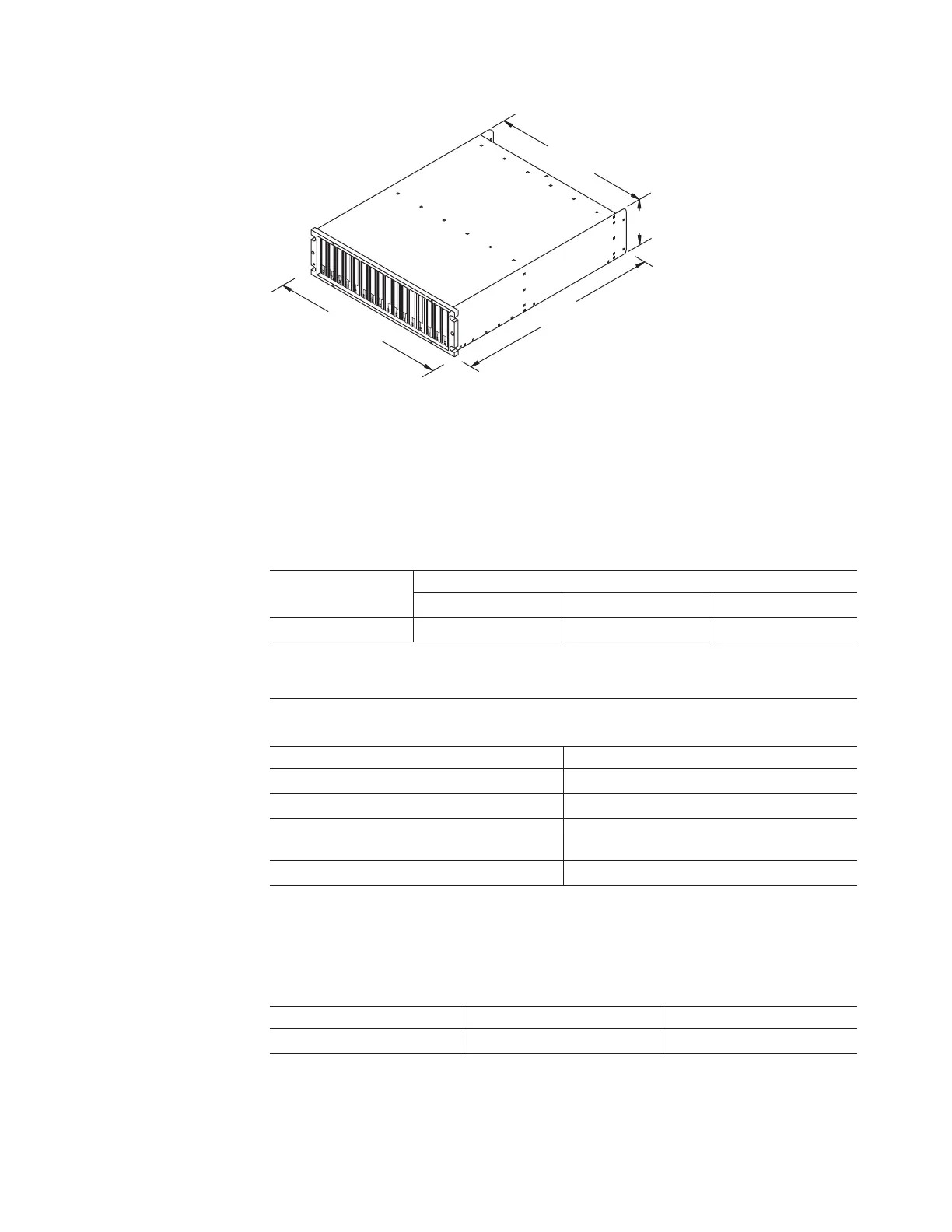

Figure 14. DS4700 Express dimensions
Chapter 1. Introduction 23
