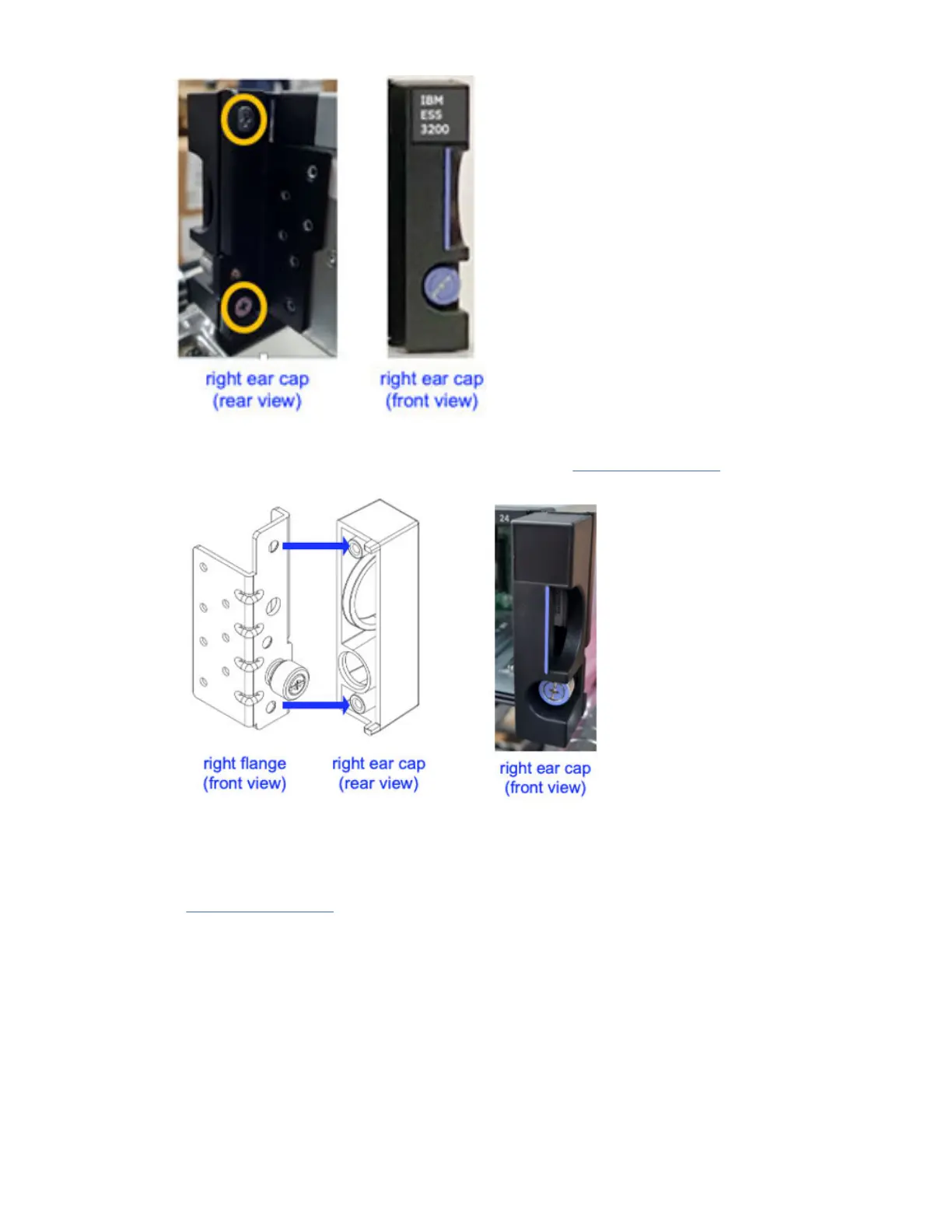

Figure 30. Displaying right ear cap front view
b) Next, install the right ear cap part (01LL678) as shown in Figure 31 on page 19.
Figure 31. Replacing right ear cap
5. Return enclosure back to the rack position.
With the enclosure in the serviceable position, press the release tab on each inner chassis member rail
(see Figure 32 on page 20) to release the rail from the serviceable position. Simultaneously push the
enclosure into the rack.
Chapter 1. Servicing (customer tasks)
19
