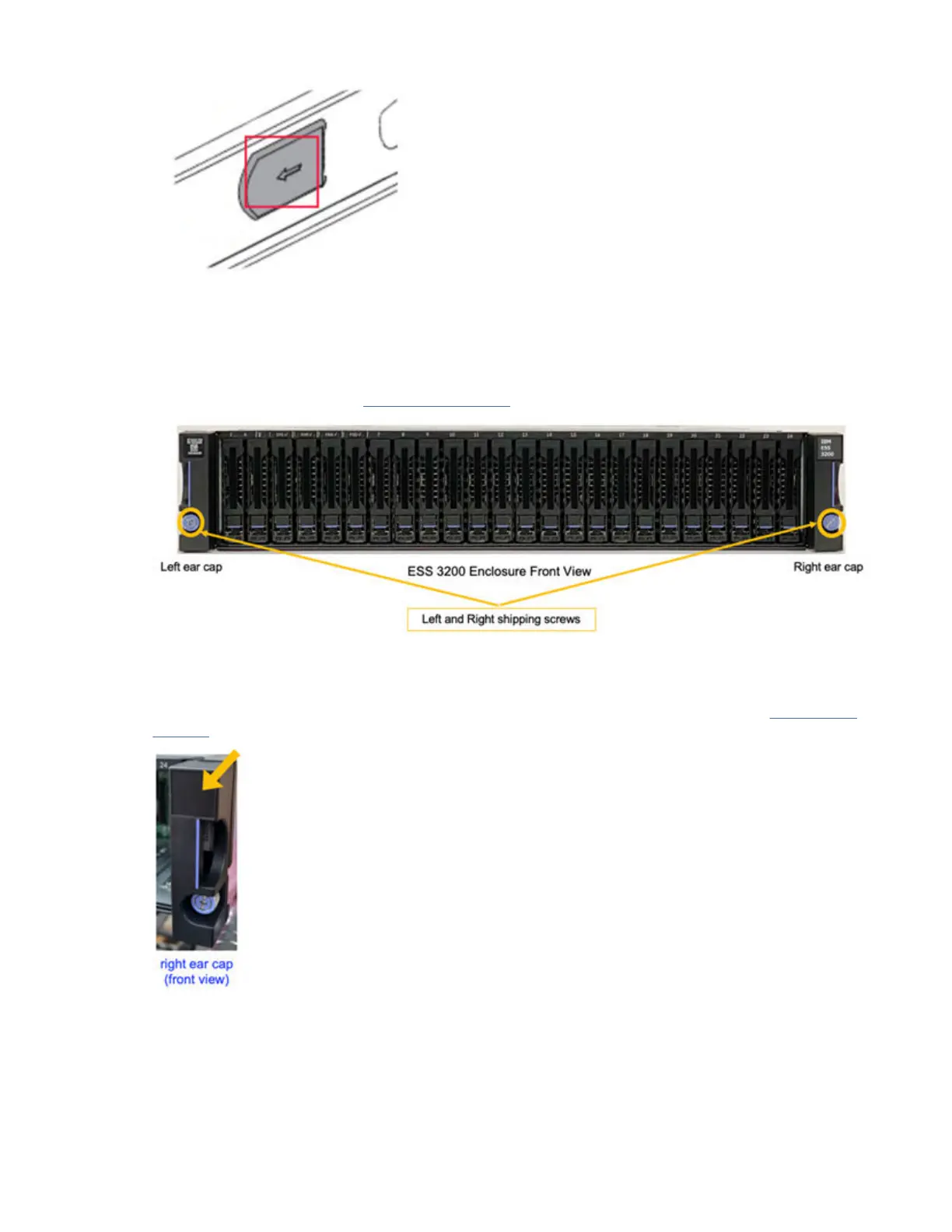

Figure 32. Pressing release tab
Note: The color of release tabs is blue, and they are located toward the front of the enclosure.
6. Secure the enclosure in the rack.
Secure the enclosure in the rack. Tighten the left and right shipping screws on each side of the
enclosure as demonstrated in Figure 33 on page 20.
Figure 33. Securing the enclosure
7. Place the IBM brand label on the right ear cap.
Place the IBM brand label onto the right ear cap within the square area, as highlighted in Figure 34 on
page 20.
Figure 34. Displaying IBM brand label location
If an MTM/SN label is needed to be placed on the left ear cap, contact IBM Quality Hotline for more
information.
20
IBM Elastic Storage System 3200: Service Guide
