Connect the Ethernet MCP to the network.
Connecting power to the system
Although the system operates when only one power supply is connected, this set up is not
recommended.
Using the ac power cords that are provided, connect each power supply to a power source. As a best
practice, connect each of the power cords to separate circuits.

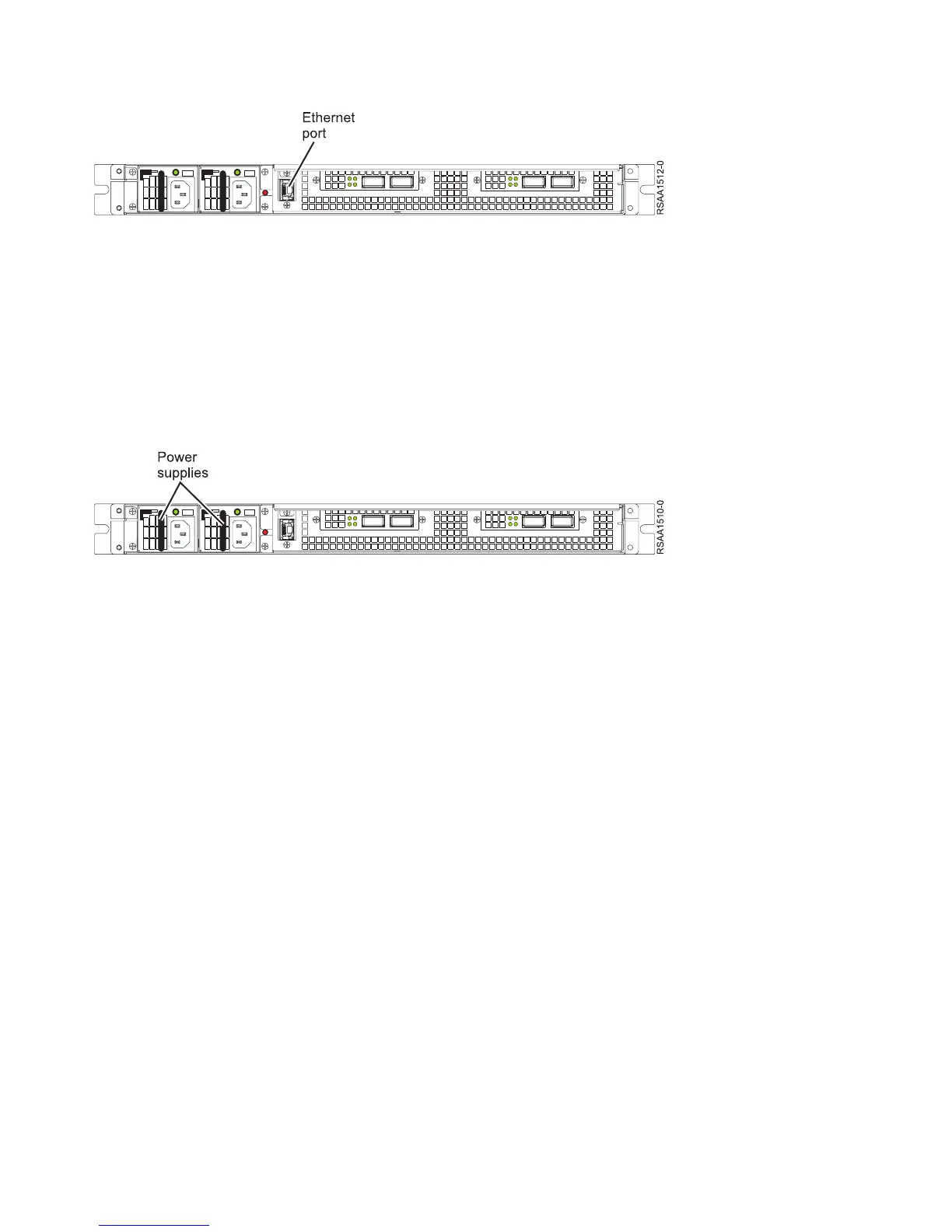

Figure 2. Ethernet management port location
Figure 3. Power supplies
6 IBM FlashSystem 710: User's Guide
