2. To remove a shelf support from the Flex System chassis, reach inside the
chassis where the shelf was removed and release the left-side support by
sliding the blue touch point 1 upward. Slide the support toward the rear and
remove. Save the support for future use. Figure 4 on page 11 shows the
removal of a shelf support.
3. Repeat the previous step for removal of the right-side shelf support.
1
2
ite00044

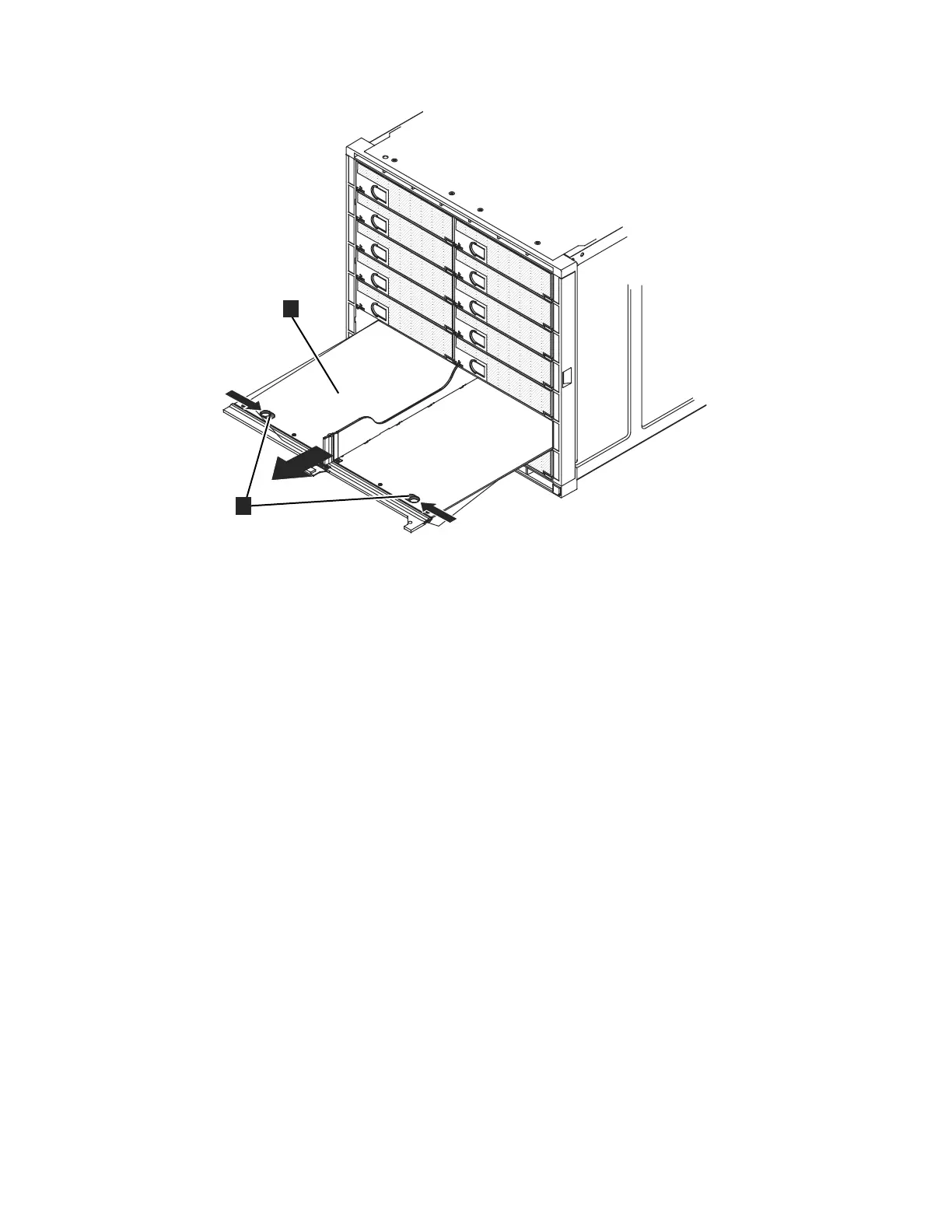

Figure 3. Chassis shelf removal
10 Flex System V7000 Storage Node: Installation Guide
