Table 13. 8202-E4B or 8205-E6B HMC port locations
Port Physical location code Identify LED
HMC port 1 Un-P1-T5 No
HMC port 2 Un-P1-T6 No
For more information on HMC port locations on the 8202-E4B or 8205-E6B, see Part location and location codes for
8202-E4B or 8205-E6B.
8202-E4C or 8205-E6C HMC port locations
Use this diagram and table to map the HMC ports on an 8202-E4C or 8205-E6C.

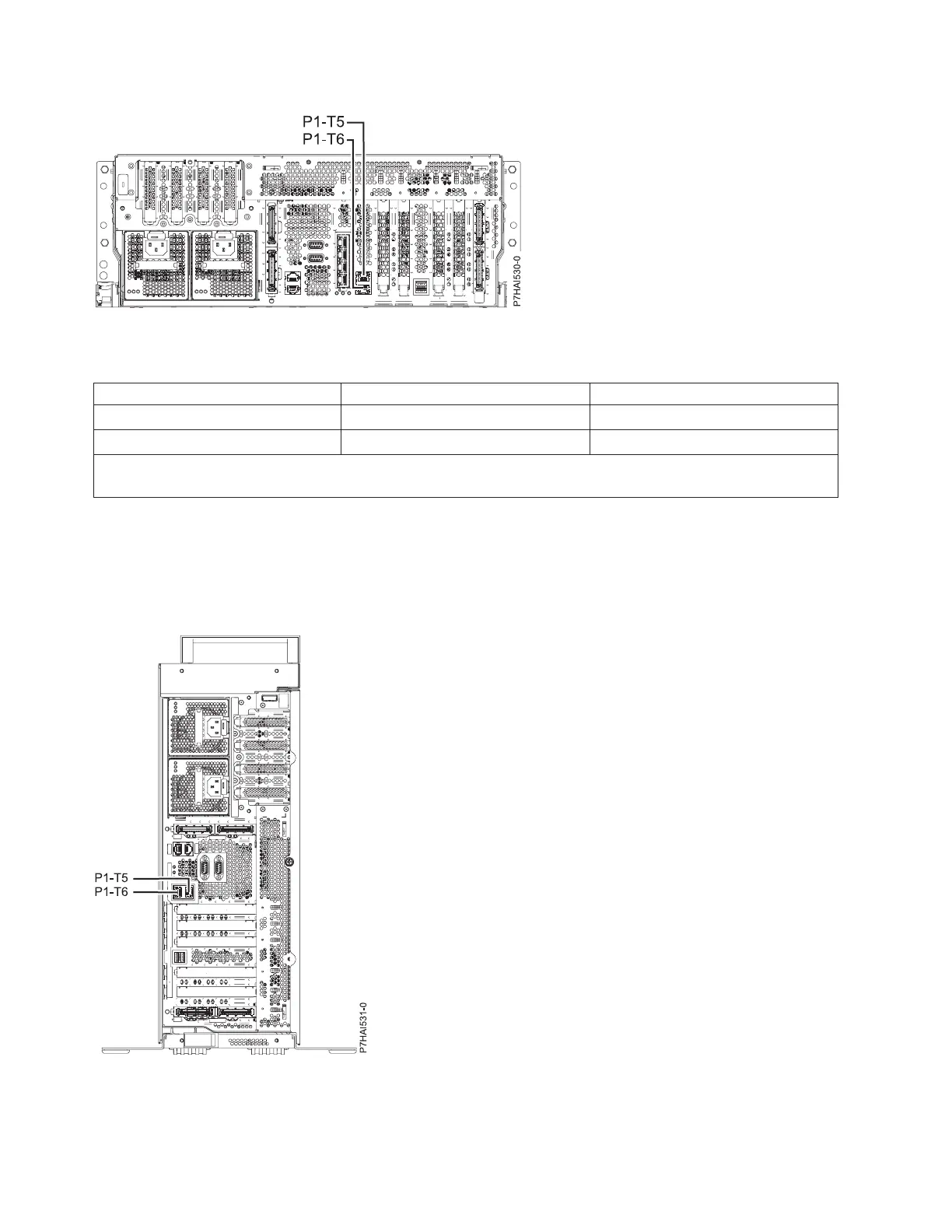

Figure 36. 8202-E4B or 8205-E6B HMC port locations
Figure 37. 8202-E4C or 8205-E6C HMC port locations
