IBM Hardware Management Console User Manual

Table 14. 8202-E4C or 8205-E6C HMC port locations
Port Physical location code Identify LED
HMC port 1 Un-P1-T5 No
HMC port 2 Un-P1-T6 No
For more information on HMC port locations on the 8202-E4C or 8205-E6C, see Part location and location codes for
8202-E4C or 8205-E6C..
8231-E2B HMC port locations
Use this diagram and table to map the HMC ports on an 8231-E2B.
Table 15. 8231-E2B HMC port locations
Port Physical location code Identify LED
HMC port 1 Un-P1-T3 No
HMC port 2 Un-P1-T4 No
For more information on HMC port locations on the 8231-E2B, see Part location and location codes for 8231-E2B.
8231-E1C or 8231-E2C HMC port locations
Use this diagram and table to map the HMC ports on an 8231-E1C or 8231-E2C.
Table 16. 8231-E1C or 8231-E2C HMC port locations
Port Physical location code Identify LED
HMC port 1 Un-P1-T3 No
HMC port 2 Un-P1-T4 No
For more information on HMC port locations on the 8231-E1C or 8231-E2C, see Part location and location codes for
8231-E1C or 8231-E2C

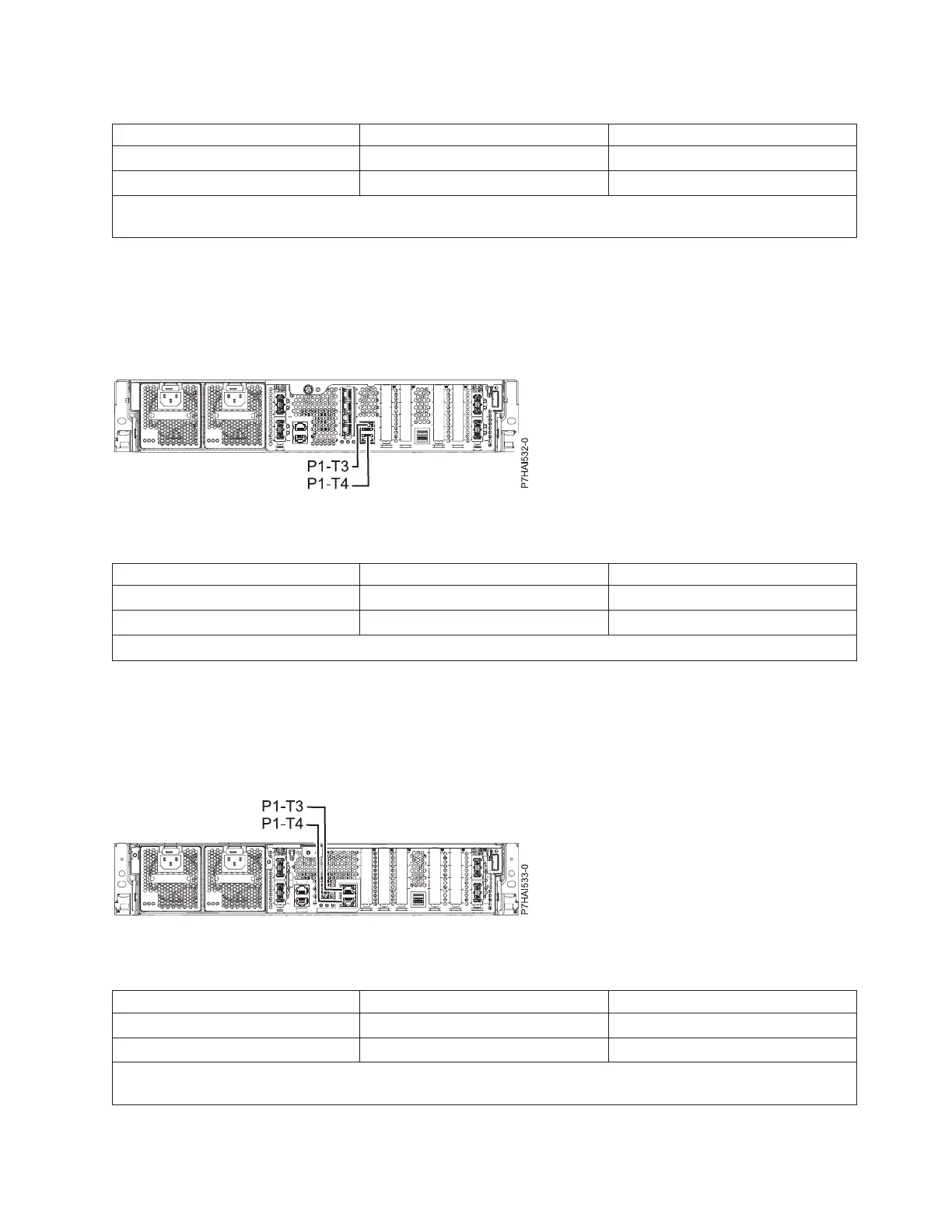

Figure 38. 8231-E2B HMC port locations
Figure 39. 8231-E1C or 8231-E2C HMC port locations
Installing and configuring the Hardware Management Console 79
