8233-E8B or 8236-E8C HMC port locations
Use this diagram and table to map the HMC ports on an 8233-E8B or 8236-E8C.
Table 17. 8233-E8B or 8236-E8C HMC port locations
Port Physical location code Identify LED
HMC port 1 Un-P1-T7 No
HMC port 2 Un-P1-T8 No
For more information on HMC port location on 8233-E8B or 8236-E8C, see Part location and location codes for
8233-E8B or 8236-E8C
8408-E8D 8248-L4T or 9109-RMD HMC port locations
Use this diagram and table to map the HMC ports on an 8408-E8D 8248-L4T or 9109-RMD.
Table 18. 8408-E8D 8248-L4Tor 9109-RMD HMC port locations
Port Physical location code Identify LED
HMC port 1 Un-P1-C1-T6 Yes
HMC port 2 Un-P1-C1-T7 Yes
For more information on HMC ports on an 8408-E8D or 9109-RMD, see Part location and location codes for
8408-E8D or 9109-RMD.

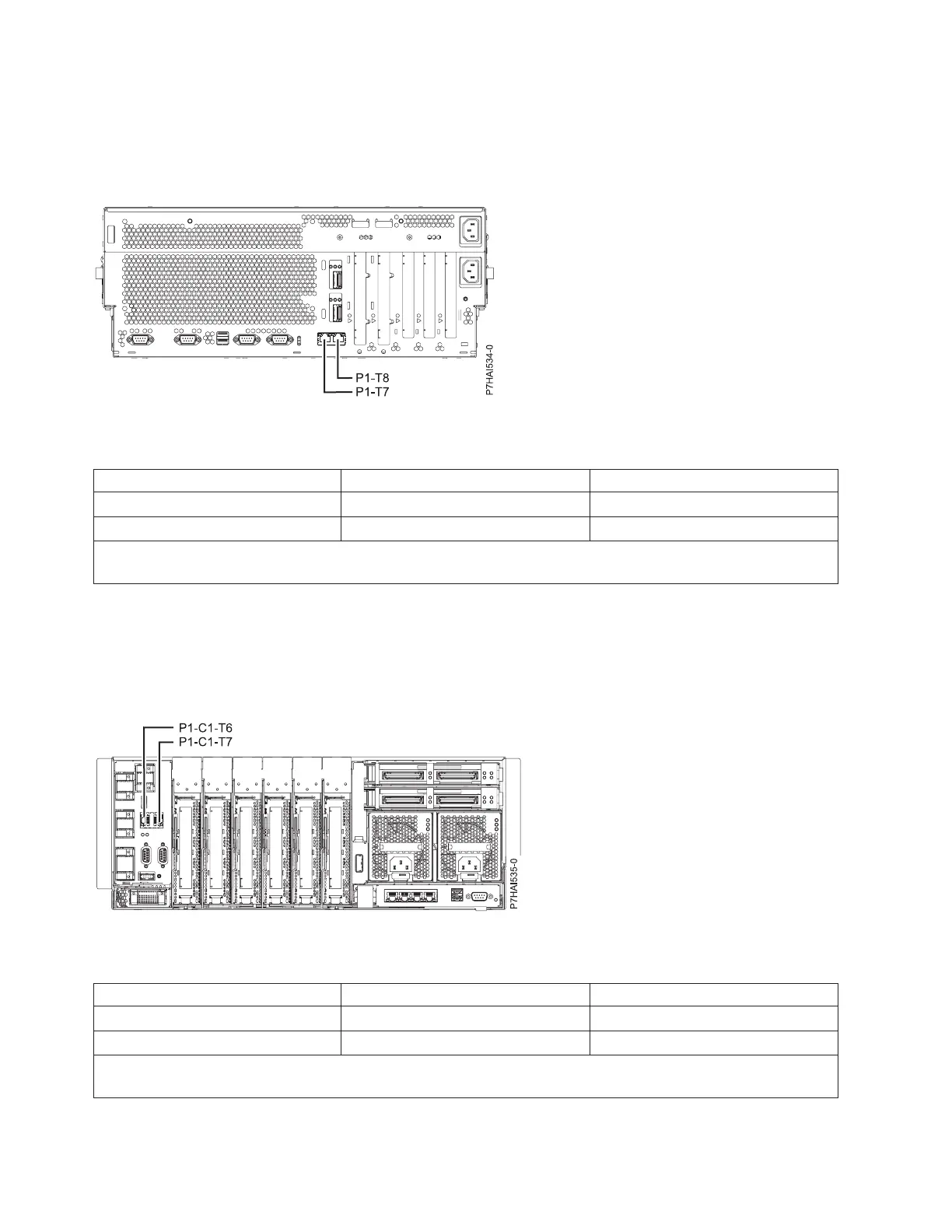

Figure 40. 8233-E8B or 8236-E8C HMC port locations
Figure 41. 8408-E8D 8248-L4T or 9109-RMD HMC port locations
80 Power Systems: Installing and configuring the Hardware Management Console
