9117-MMB or 9179-MHB HMC port locations
Use this diagram and table to map the HMC ports on a 9117-MMB or 9179-MHB.
Table 19. 9117-MMB or 9179-MHB HMC port locations
Port Physical location code Identify LED
HMC port 1 Un-P1-C1-T6 Yes
HMC port 2 Un-P1-C1-T7 Yes
For more information on HMC ports on a 9117-MMB or 9179-MHB, see Part location and location codes for
9117-MMB or 9179-HMC
9117-MMC, 9117-MMD, 9179-MHC, 9179-MHD, or HMC port locations
Use this diagram and table to map the HMC ports on a 9117-MMC, 9117-MMD, 9179-MHC, 9179-MHD,
or .
Table 20. 9117-MMC, 9117-MMD, 9179-MHC, 9179-MHD, or HMC port locations
Port Physical location code Identify LED
HMC port 1 Un-P1-C1-T6 Yes
HMC port 2 Un-P1-C1-T7 Yes
For more information on HMC ports on 9117-MMC, 9117-MMD, 9179-MHC, or 9179-MHD, see Part location and
location codes for 9117-MMC, 9117-MMD, 9179-MHC, or 9179-MHD

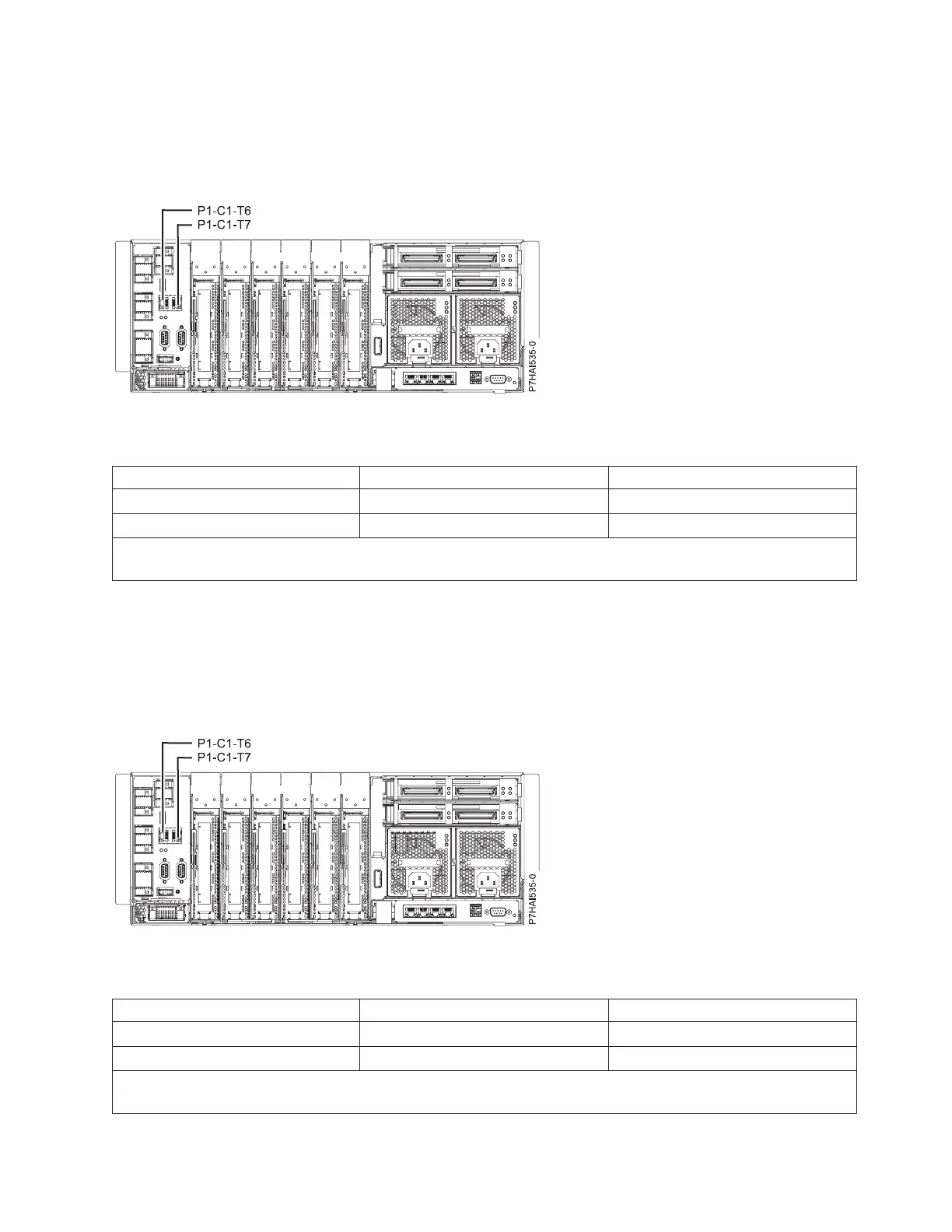

Figure 42. 9117-MMB or 9179-MHB HMC port locations
Figure 43. 9117-MMC, 9117-MMD, 9179-MHC, 9179-MHD, or HMC port locations
Installing and configuring the Hardware Management Console 81
