9119-FHB HMC port locations
Use this diagram and table to map the HMC ports on a 9119-FHB.
Table 21. 9119-FHB HMC port locations
Port Physical location code Identify LED
HMC (Connector J02, Ethernet to
Bulk power hub-BPH)
Un-Px-C1–J02 No
HMC (Connector J03, Ethernet to
Bulk power hub-BPH)
Un-Px-C1–J03 No
For more information on HMC ports on 9119-FHB, see Part location and location codes for 9119-FHB

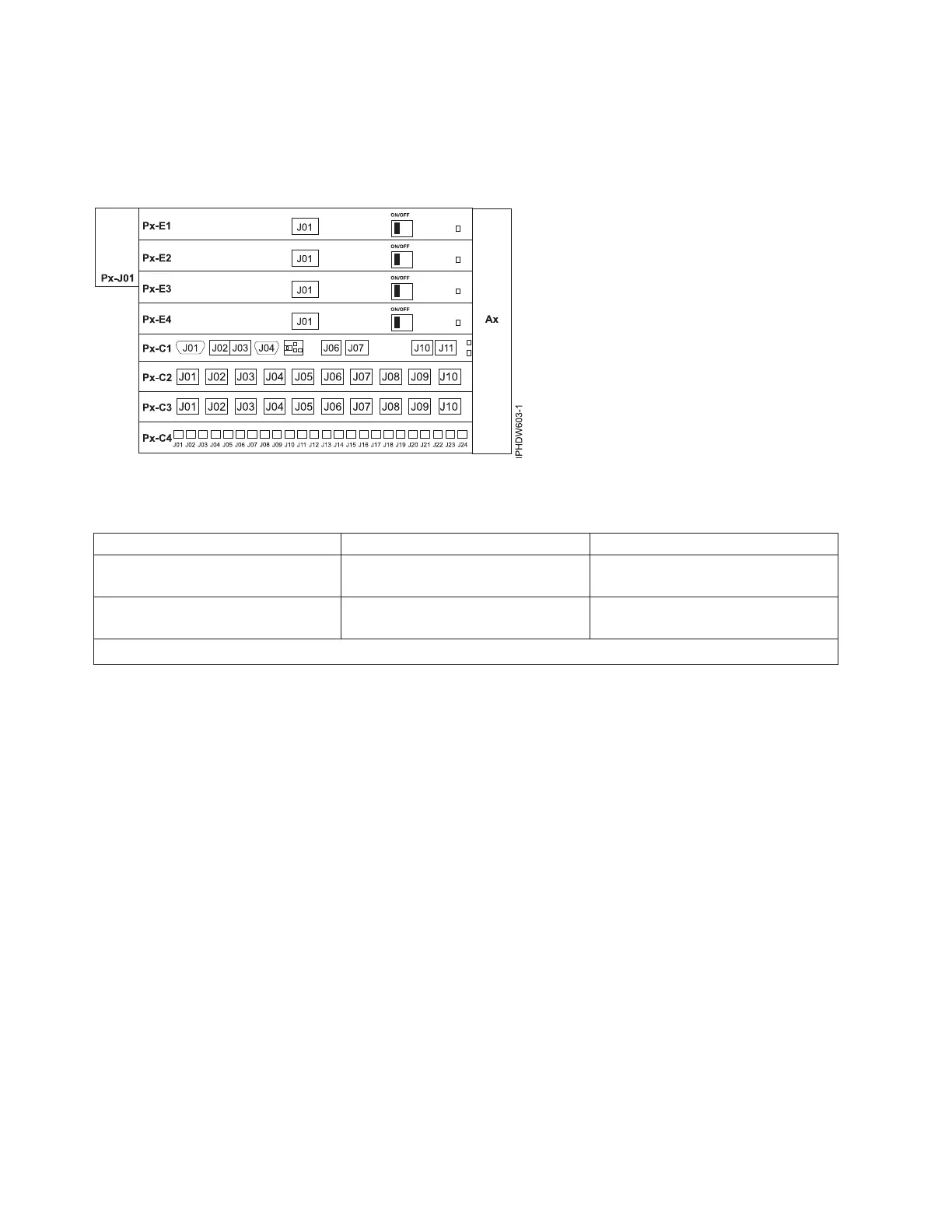

Figure 44. 9119-FHB HMC port locations
82 Power Systems: Installing and configuring the Hardware Management Console
