v A clean, level surface on which to place the autoloader. The weight of the
autoloader is approximately 22.7 kg (50 lbs.). Be sure that the surface can
support the weight of the autoloader.
Autoloader Views
The following illustrations and descriptions review the front and back panel views
of the autoloader.
Front panel view

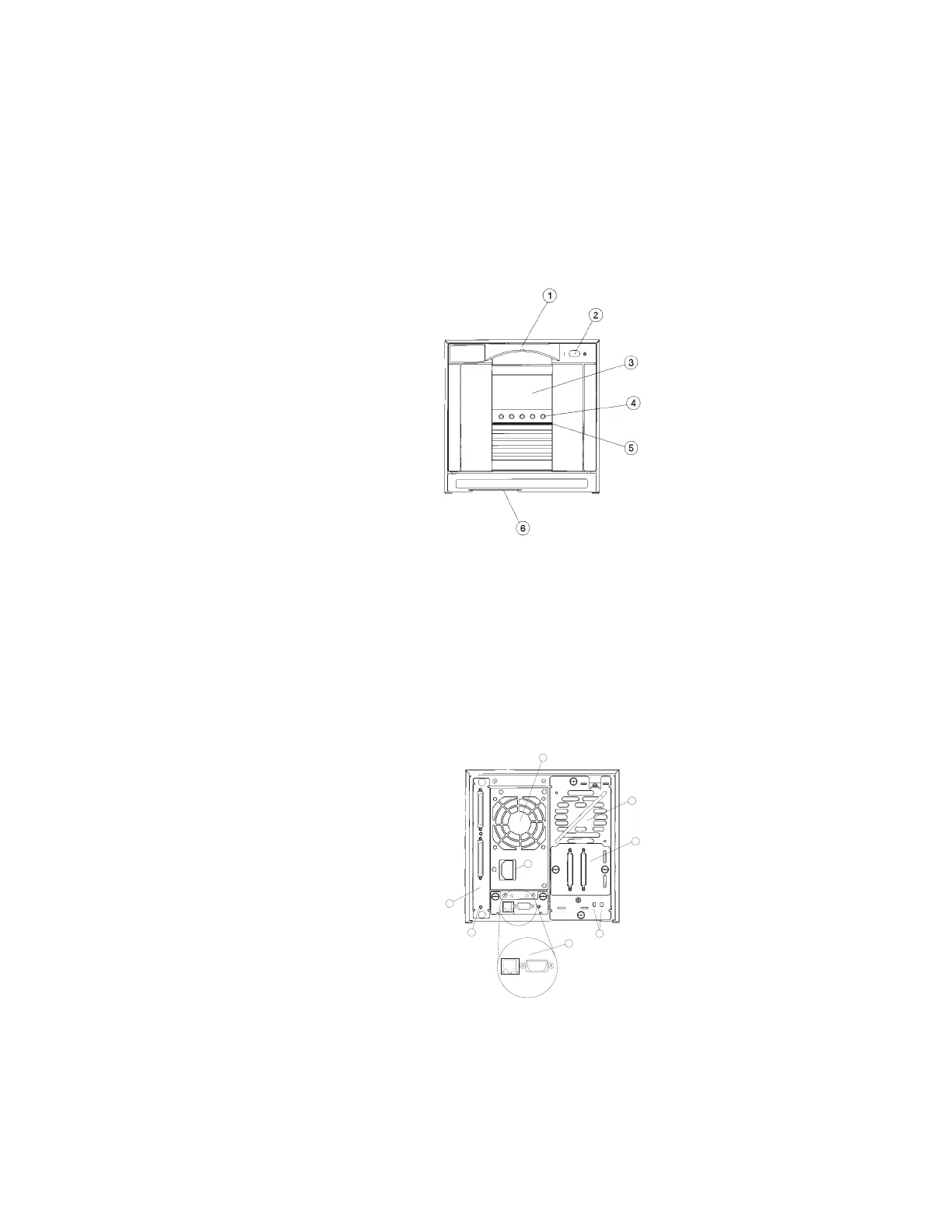

The components shown in the previous illustration include the following.
«1¬Door handle
«2¬Power (standby) switch
«3¬Front panel display
«4¬Soft-button keys
«5¬LED status bar
«6¬Slot for pull-out information tab
Back panel view
5
6
5
7
4
1
3
2
The components shown in the previous illustration include the following.
«1¬autoloader controller card
«2¬Power supply
«3¬Future upgrade
«4¬Drive module
«5¬Status LEDs
