IBM Power Systems 7063-CR1 User Manual

3. Lift the holder for the fans as shown in Figure 11. The fans are easier to remove when the holder is
slightly lifted.
4. Push the fan up from the holder as shown in Figure 12 on page 16.

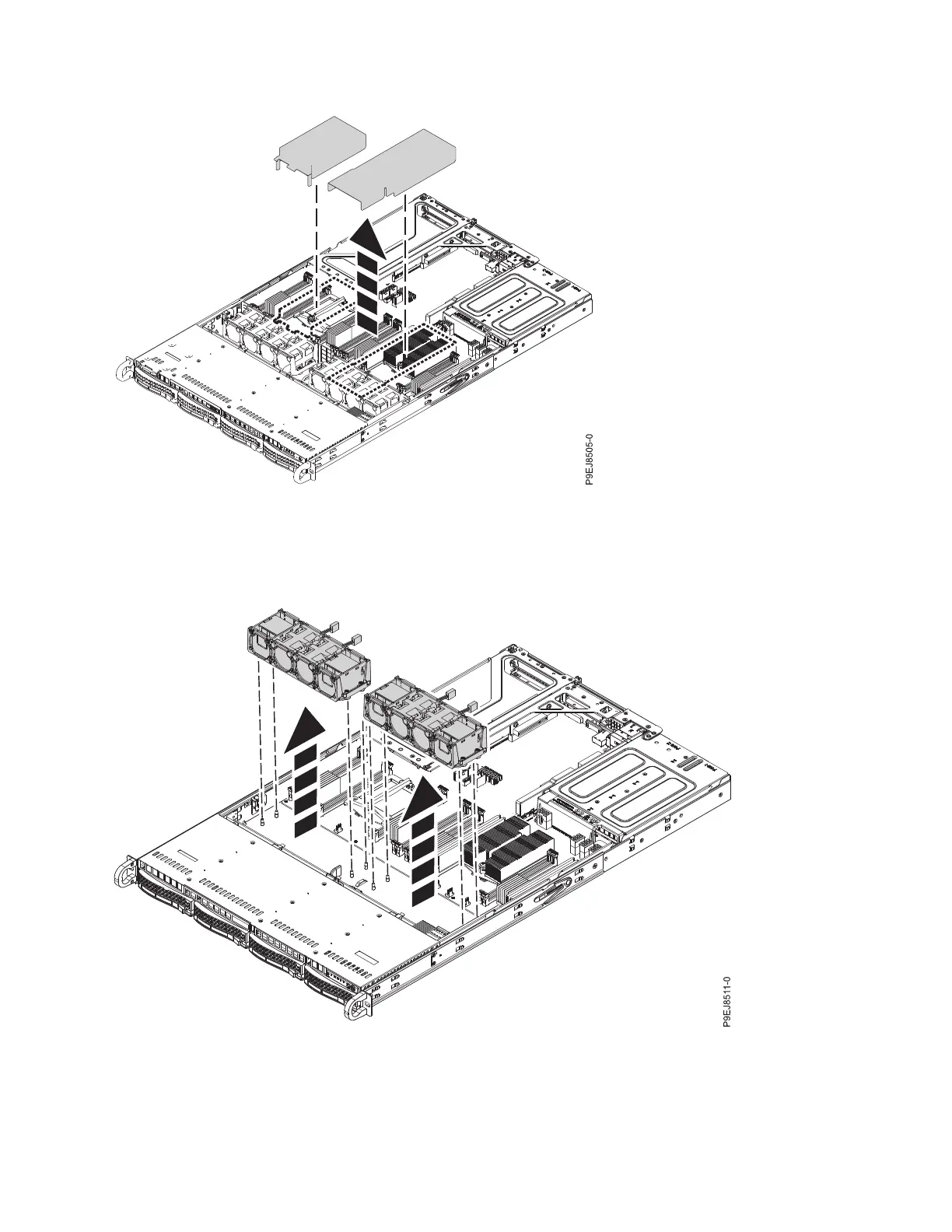

Figure 10. Removing the system processor air baffle
Figure 11. Removing the fan holder
Removing and replacing parts in the 7063-CR1 15
