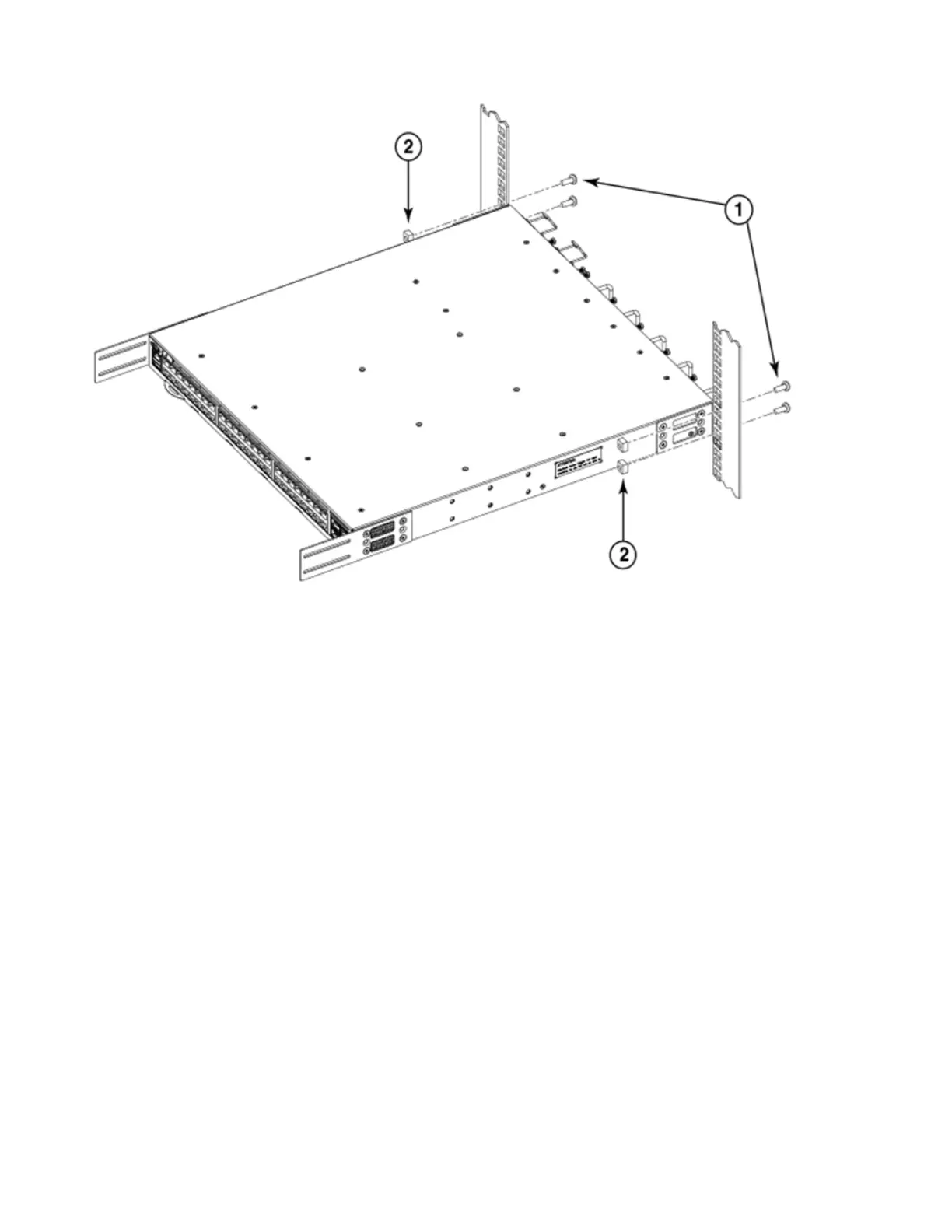

Screws, 10-32 x 5/8-in., panhead Phillips
Retainer nuts, 10-32
Attaching the rear brackets to the extensions at the front of the device
About this task
Complete the following steps to attach the rear brackets to the extensions. There are short and long front
brackets that you can use for this step.
Procedure
1. Select the proper length rear bracket for your rack depth.
2. Slide the right rear bracket onto the right extension.
The short rear brackets are shown in Figure 12 on page 25. Use the first and third vertical pairs of
holes for the screws.
Refer to Figure 13 on page 25 for the positioning of the short or long brackets and screws.
3. Attach the brackets using four 6-32 x 1/4-in. panhead screws.
4. Repeat step 2 and step 3 to attach the left rear bracket to the left extension.
5. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lb
(10 cm-kg).
Figure 11. Positioning the device in the rack
