Procedure
To install the support rails, complete the following steps.
1. Locate the rack mounting rails and screws (Figure 6). The rail assembly
consists of two rails that must be installed in the rack cabinet.
2. Remove the springs that are taped to one of the rails.
3. Attach a spring to the outside of each rail.
a. Attach the circle end of the spring around the stud on the rail. (See
Figure 7 on page 11.)
b. Pulling on the spring, attach the hook end of the spring to the tab on the
rail.

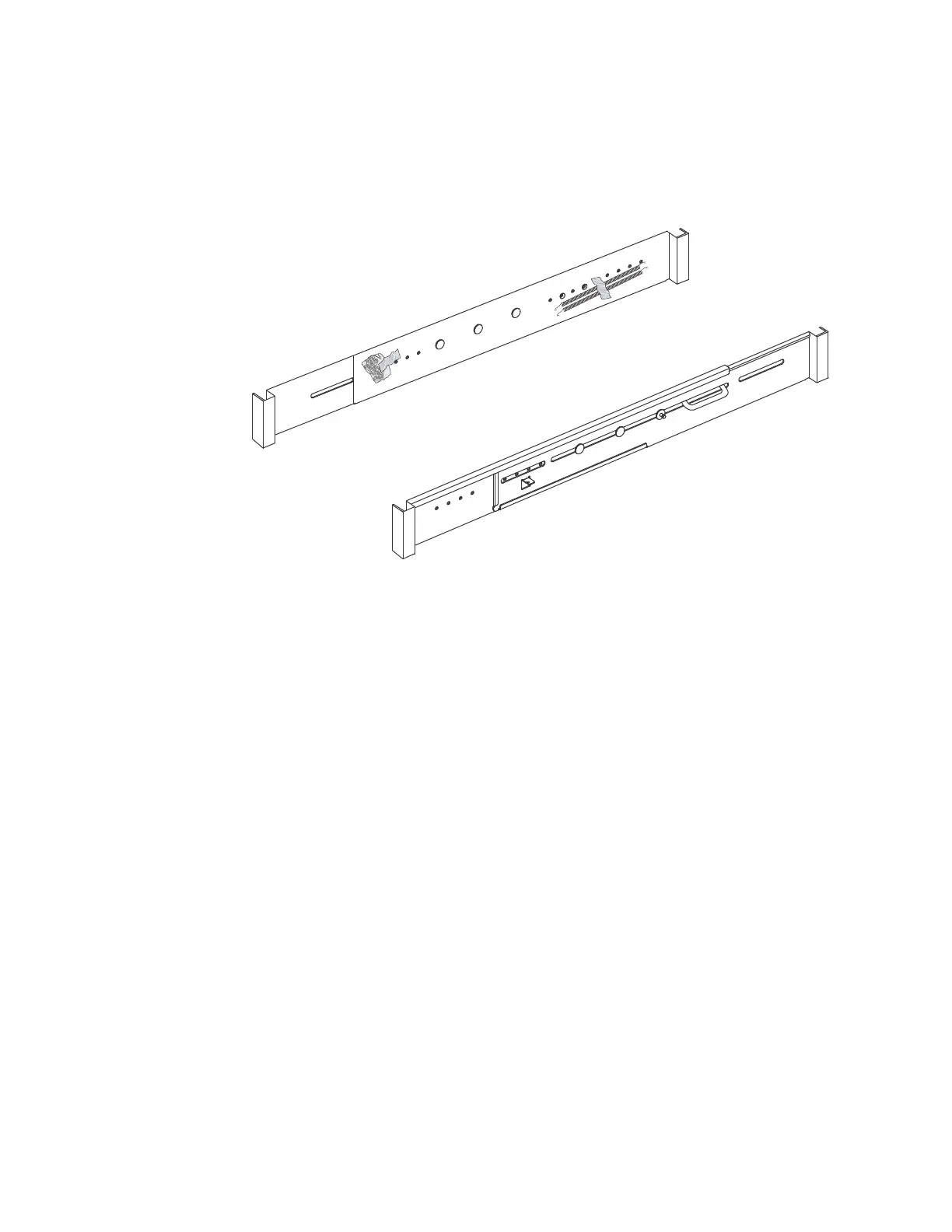

Figure 6. Rack mounting rails and screws
10 Storwize V3500: Quick Installation Guide
