4. Working at the front of the rack cabinet, identify the two standard rack units
(2U) of space in the rack into which you want to install the support rails.
Figure 10 shows two rack units with the front mounting holes identified.
v ▌1▐ Upper rail mounting bracket pin
v ▌2▐ Lower rail mounting bracket pin
v3500067

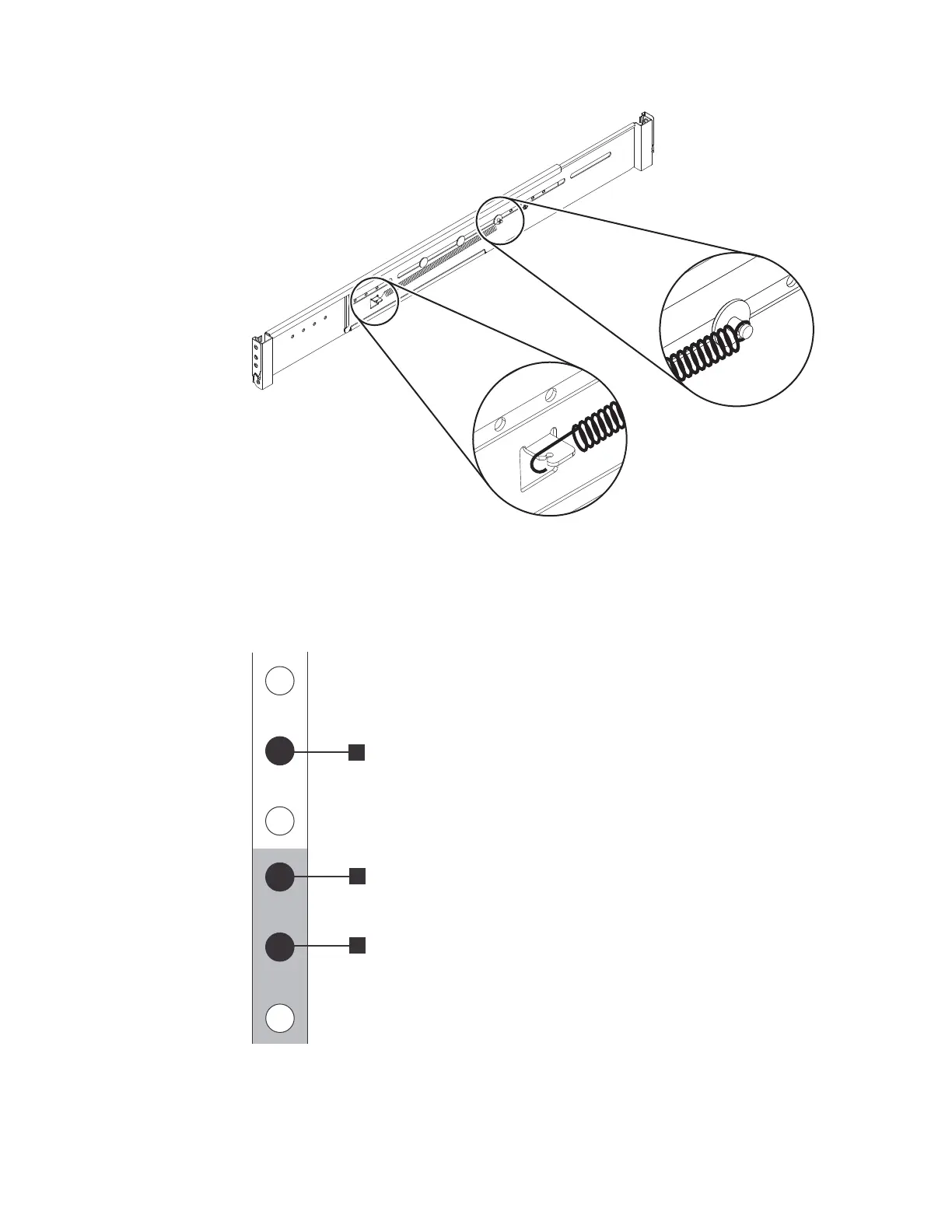

Figure 9. Installing the rail spring
1
2
3
v3500162
Figure 10. Hole locations in the front of the rack
14 Storwize V5000: Quick Installation Guide

IBM Storwize V5000 Specifications

General

Storage Type	Hybrid Flash Array
Maximum Drives	240
Form Factor	2U
Model	IBM Storwize V5000
Drive Types	SSD, HDD
RAID Levels	RAID 0, 1, 5, 6, 10
Host Interface	8 Gbps Fibre Channel (FC), 12 Gbps SAS, 10 Gbps iSCSI, 16 Gbps FC
Software Features	Thin provisioning
Drive Bays	12 or 24
Cache	Up to 32GB
Cache Memory	Up to 32GB
Weight	30kg (66.1lb)
Power Supply	Dual
Cooling	Redundant cooling fans
Dimensions	88mm x 482mm x 740mm (3.5in x 19in x 29.1in)
