About this task

Note: For NEBS compliant installations, more requirements are placed on the rack

into which the support rails and enclosures are to be installed. Before you proceed,

ensure that the rack meets the requirements that are listed in “NEBS-compliant

earth connection” on page 17.

Procedure

To install the support rails for an enclosure, complete the following steps.

1. Locate the enclosure rails (Figure 11). The rail assembly consists of two rails

that must be installed in the rack cabinet.

2. Install a spring on the rail rail.

a. Push one looped end of a spring over one stud on the inside of the rail.

(See Figure 12 on page 19.)

b. Stretch the spring slightly and push the other looped end of the spring

onto the other stud on the inside of the rail.

svc01105

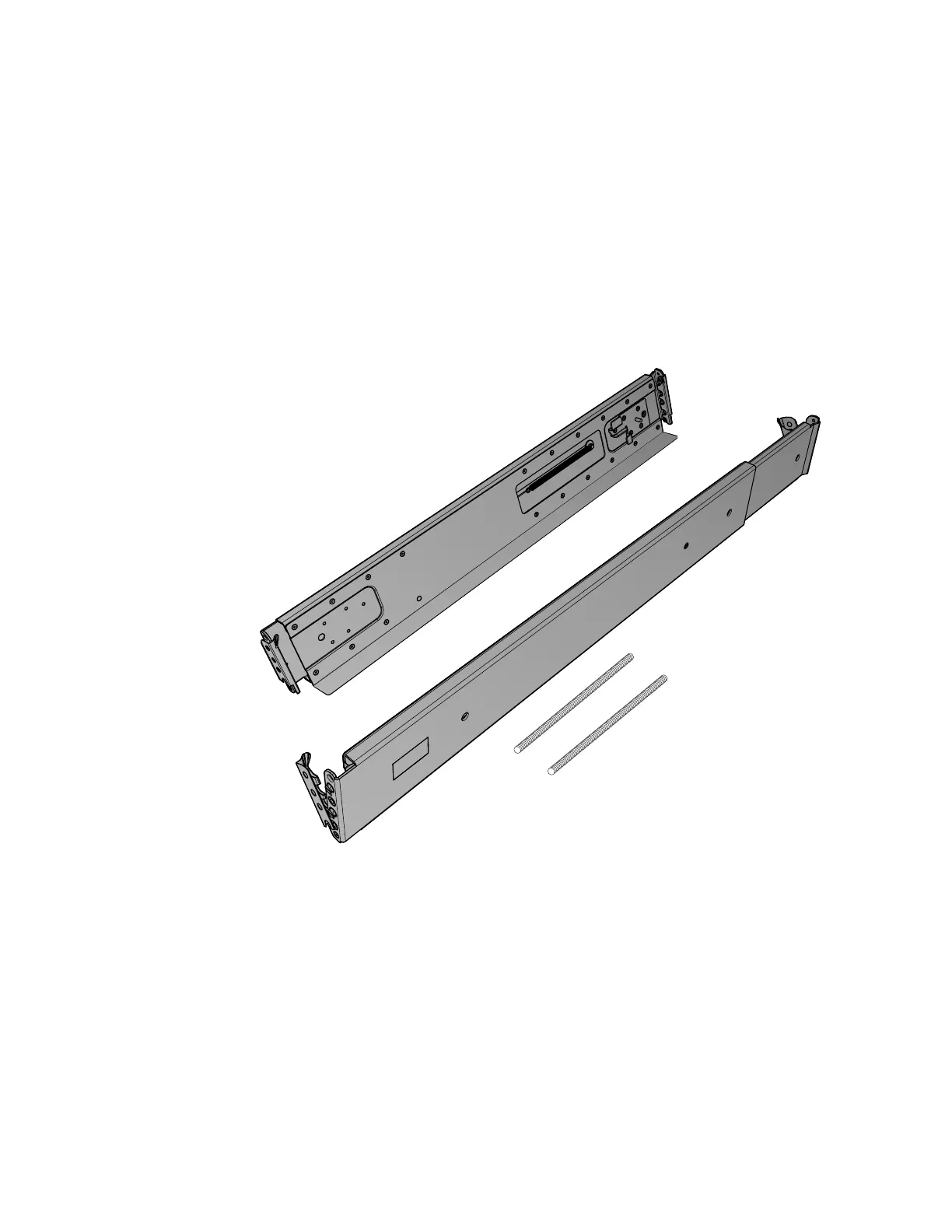

Figure 11. Enclosure support rails

18 Storwize V5000 Gen2: Quick Installation Guide
