a. Press the release tab toward the rear of the server and lift the back end of
the SAS controller card slightly.
b. Place your fingers underneath the upper portion of the SAS riser card and
lift the assembly from the system board.
c. Slide the front end of the SAS controller card out of the retention bracket
and lift the assembly out of the server.
3. To remove the SAS riser-card and controller assembly for a tape-enabled server
model, complete the following steps.

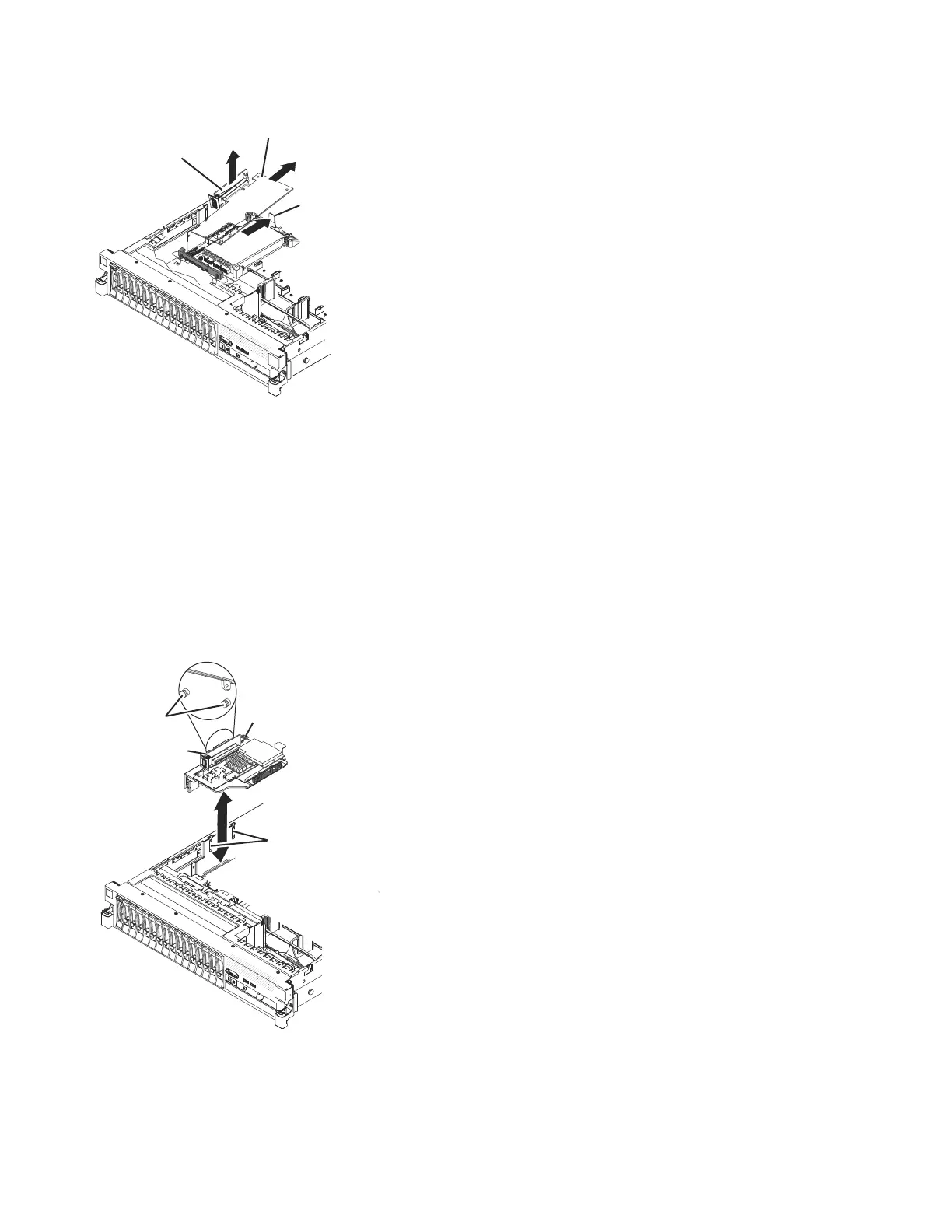

Figure 20 shows the SAS riser card in the tape-enabled server model.
a. Press down on the assembly release latch and lift up on the tab to release
the SAS controller assembly, which includes the SAS riser card, from the
system board.
SAS riser card
Release tab
SAS controller
sonas208
Figure 19. 16-drive-capable server model
SAS riser card
Release latch
Pins
Slots
sonas209
Figure 20. Tape-enabled server model
112 Storwize V7000 Unified: Problem Determination Guide Version

IBM Storwize V7000 2076-324 Specifications

General

RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives Supported	504
Drive Bays	24
Product Type	Storage system
Form Factor	2U
Drive Type Supported	SAS, NL-SAS, SSD
Host Interfaces	8 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Cache Memory	32 GB
Operating System	IBM SAN Volume Controller
