1) Remove the SAS controller front retention bracket from the server. See
Figure 23.
2) Remove the rear controller retention bracket located in the battery bay
above the power supplies by pulling up the release tab 1 and sliding
the bracket outward 2. See Figure 24 on page 115.
sonas203

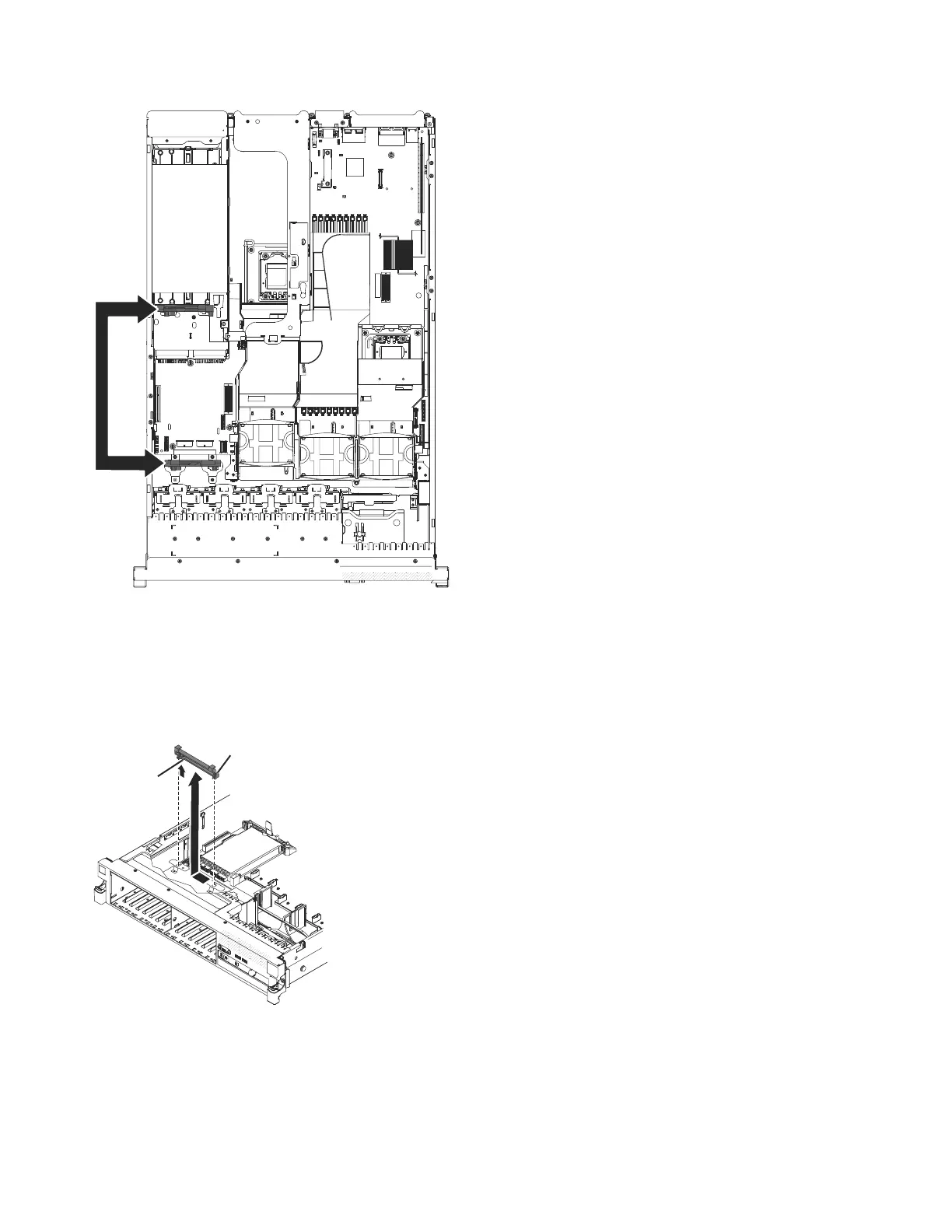

Figure 22. Controller retention brackets on 16-drive-capable server model
Tab
SAS expander card
front retention bracket
sonas207
Figure 23. SAS controller front retention brackets
114 Storwize V7000 Unified: Problem Determination Guide Version

IBM Storwize V7000 2076-324 Specifications

General

RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives Supported	504
Drive Bays	24
Product Type	Storage system
Form Factor	2U
Drive Type Supported	SAS, NL-SAS, SSD
Host Interfaces	8 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Cache Memory	32 GB
Operating System	IBM SAN Volume Controller
